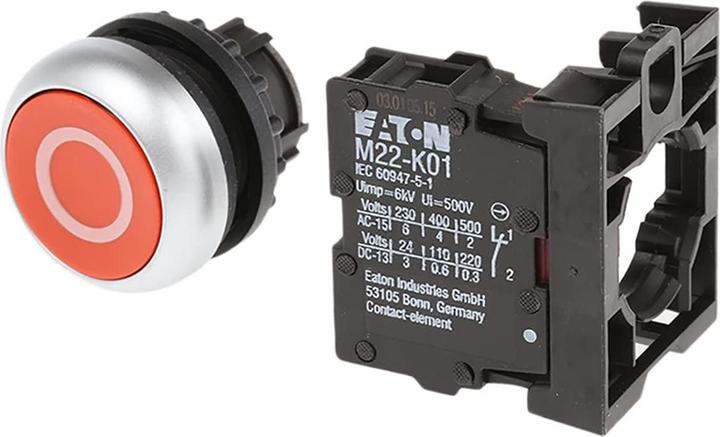

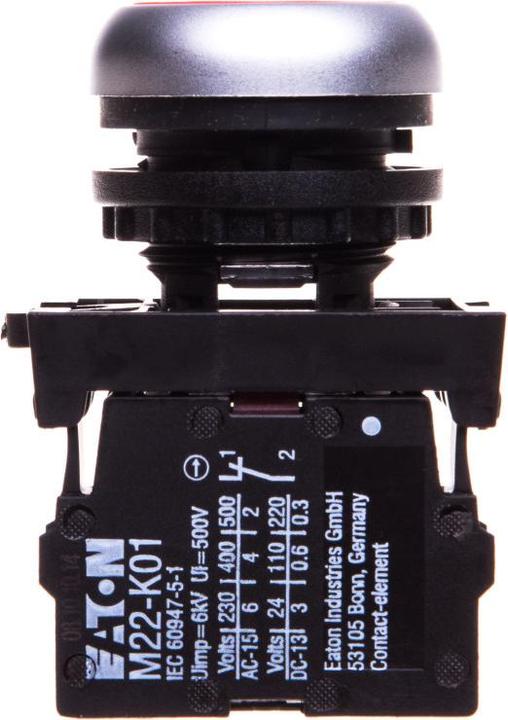

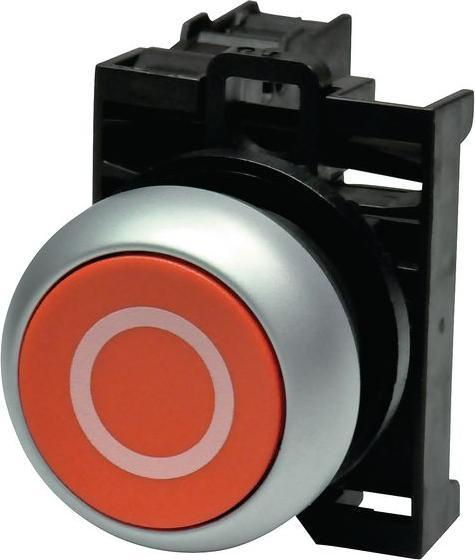

Eaton Complete Push button Red "0" 1N/C

Push Button Color: Red
Cutout Diameter: 22.5 mm
Series: M22
Push Button Actuation: Push Button End
Contact Arrangement: 1-pole NC Contact
Push Button Type: Round
Illuminated: No
Protection Class: IP67, IP69K
Max AC Voltage: 500 V
Max DC Voltage: 220 V
Push Button Shape: Round
Mounting Type: Flush Mounting
Push Button Diameter: 29.7 mm
Housing Material: Plastic
Max Current: 6 A

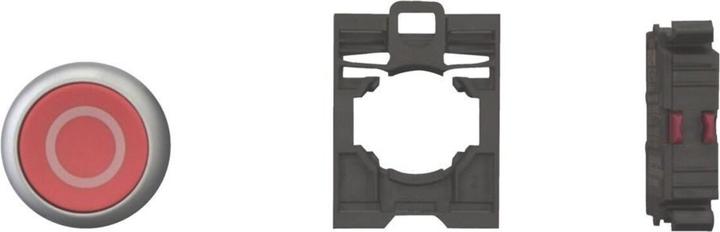

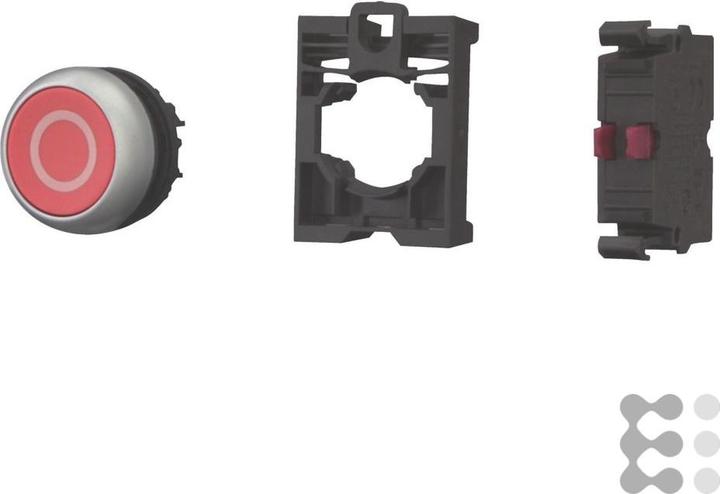

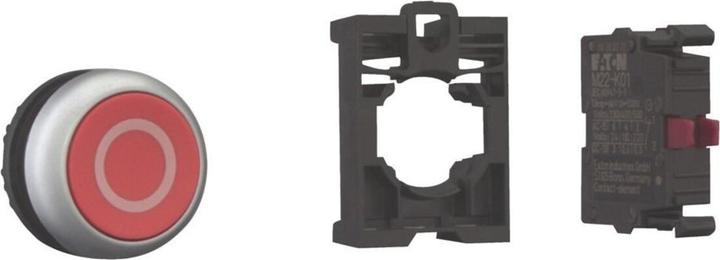

Complete flush-mounted push buttons. This series of complete push button units from Eaton's RMQ Titan series with 22 mm is designed to simplify the procurement process for individual components. These units include the actuator as a push button, mounting collar, and contact block. The mechanical lifespan of the complete push button unit exceeds 1,000,000 actuations. Protection against ingress of media according to IP69K. Operating temperature range from -25 °C to +70 °C.
