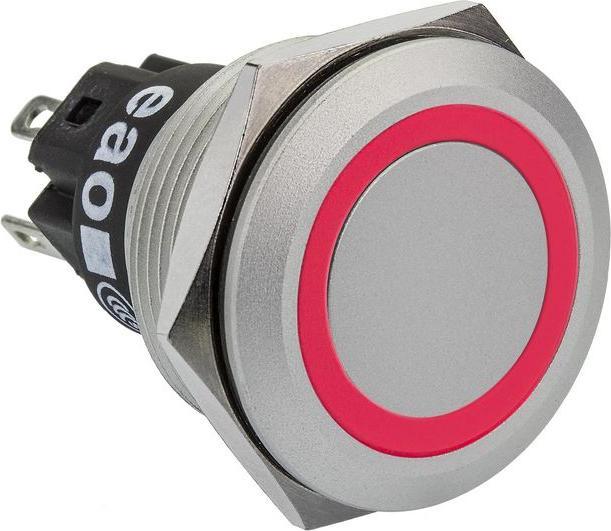

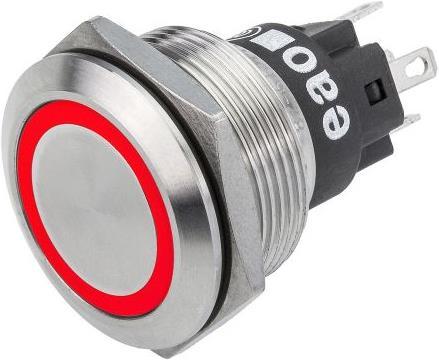

EAO 22mm,vandal res,SS,24V,red,LED,plug-in

Delivered between Fri, 18.7. and Mon, 21.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Switching sequence: Pushbutton
Contact arrangement: Single pole double throw switch (SPDT)
Mounting type: Front panel mounting
Panel cutout size: 22 (Dia.) mm
Panel cutout diameter: 22 mm
Contact rated current: 3 A
Contact AC rated voltage: 240 V
Contact DC rated voltage: 240 V
Rated voltage: 240 V ac/dc
Illuminated: Yes
Actuator color: Silver
LED color: Red
Operating temperature min: -30°C

Stainless steel EAO Series 82 illuminated vandal resistant switch. The Series 82 is designed for impact resistance to IK10 and sealing to IP67, making it suitable for exposed public applications. The Series 82 is offered with either silver-plated or gold-plated contacts to provide reliable switching for low range voltages and currents.

Features and benefits:

  • Vandal resistant: shock resistance to IK10 and frontal protection to IP67.
  • Optional illumination and laser marking available.
  • Excellent, precise feedback from pressure actuation.
  • More than 1 million operating cycles.

Typical applications:

  • Exposed public areas
  • Medical equipment
  • Audio and video equipment
  • Building management
  • Machinery and factory equipment.

Key specifications

Colour
Red
Item number
10127288

General information

Manufacturer
EAO
Category
Buttons + Switches
Manufacturer no.
82-6151.1114
Release date
21.11.2018
External links

Colour

Colour
Red
Exact colour description
Red

Switch + push-button Features

LED colour
Red

Voluntary climate contribution

CO₂-Emission
Climate contribution

Smart home features

Smart Home
Not compatible
