Druck UPS II digital loop calibrator,4-20mA
Product details
Current measurement absolute max: 20 mA
Accuracy max: ±0.05
Resolution: 10 μA
Battery type: AA
Battery life: 64 h
Power supply: Battery
Dimensions: 77 x 124 x 21 mm
Weight: 285 g
Height: 21 mm
Length: 77 mm
Operating temperature max: +50°C
Operating temperature min: -10°C
Model number: UPS-II

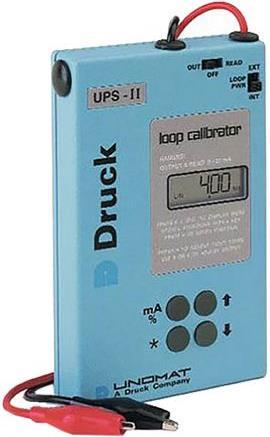

The current loop calibrator UPS II operates at 4-20 mA. It outputs and displays fixed current in mA, with automatic step and ramp functions. The display shows fixed steps in mA or percentage range. It simplifies valve position checks with fixed outputs of 3.8, 4, 4.2, 12, 19, 20, and 21 mA for verifying valve actuation and seating. The package includes batteries, a carrying case, a test cable, a spare fuse, and operating instructions. This high-quality, pocket-sized instrument is designed for testing and simulating 2-wire transducers and setting valves. Microprocessor electronics enable its use across a wide range of industrial and process control applications.
measurements | Squeeze |
Item number | 10371250 |
