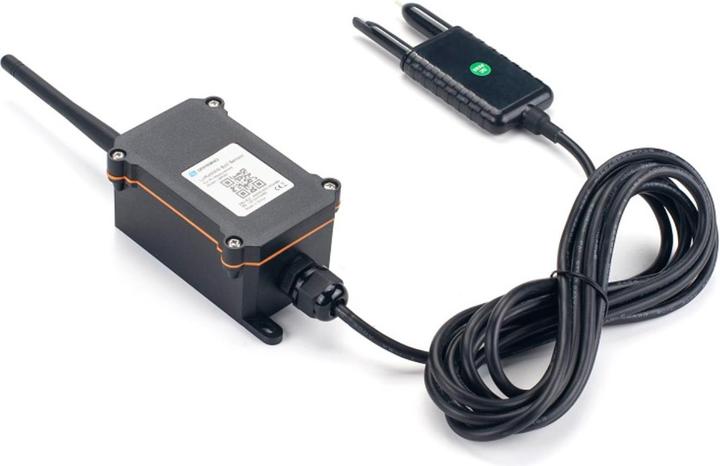

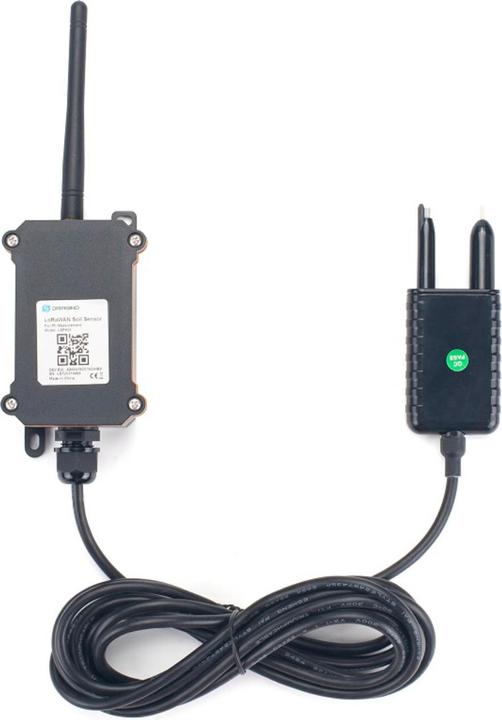

Dragino LSPH01 LoRaWAN Soil pH Sensor 868MHz

The Dragino LSPH01 is a LoRaWAN soil pH sensor for IoT applications in agriculture. It is designed to measure pH levels and soil temperature and transmit the data via LoRaWAN. This allows for the recording and analysis of the soil's acidity or alkalinity. The LSPH01 probe consists of a solid AgCl reference electrode and a pH-sensitive electrode made of pure metal. It can determine the soil pH with high accuracy and stable readings. The LSPH01 probe can be buried in the ground for an extended period. Its applications include sensor network solutions such as irrigation systems, smart metering, smart cities, temperature measurements, and more. The LSPH01 is powered by an 8500mAh Li-SOCI2 battery, designed for long-term use of up to 5 years. Each LSPH01 comes pre-loaded with a set of unique keys for LoRaWAN registration. These keys are registered on the local LoRaWAN server, and the LSPH01 automatically connects after being powered on when network coverage is available.

Features:

• LoRaWAN 1.0.3 A Class
• Signals: Soil pH, soil temperature, and battery voltage
• Configurable baud rate
• IP66 housing / water and dust resistant
• Low power consumption
• AT commands for parameter settings
• 8500mAh long-life battery

Technical Details:

• Manufacturer: Dragino
• Manufacturer SKU: LSPH01-EU868
• Frequency: 868MHz
• IP Rating: IP66 housing / IP66 sensor
• Battery: 8500mAh LiPo battery
• LoRa Version: LoRaWAN 1.0.3 Class A
• Soil pH Probe:
• Range: 3 to 10 pH
• Resolution: 0.01 pH
• Accuracy: ±2% (0 to 50 °C, accuracy deteriorates below 0 due to freezing)
• Temperature compensation range: 0 to 50°C
• Soil Temperature:
• Range: -40°C to 85°C
• Resolution: 0.1°C
• Accuracy: <±0.5°C (-10°C to 40°C)
• Cable length: 3.5m
• Housing dimensions: 93 x 53 x 47mm
• Weight: 441g

Delivery includes:
1x LSPH01 LoRaWAN soil pH sensor 868MHz.
