Dragino LA66 LoRaWAN Shield 868MHz

Ratings
Delivered between Fri, 23.5. and Mon, 26.5.
8 items in stock at third-party supplier
Supplied by

Product details

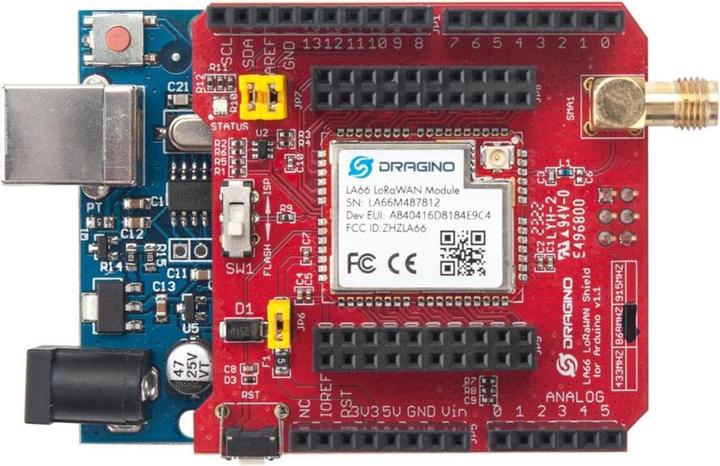

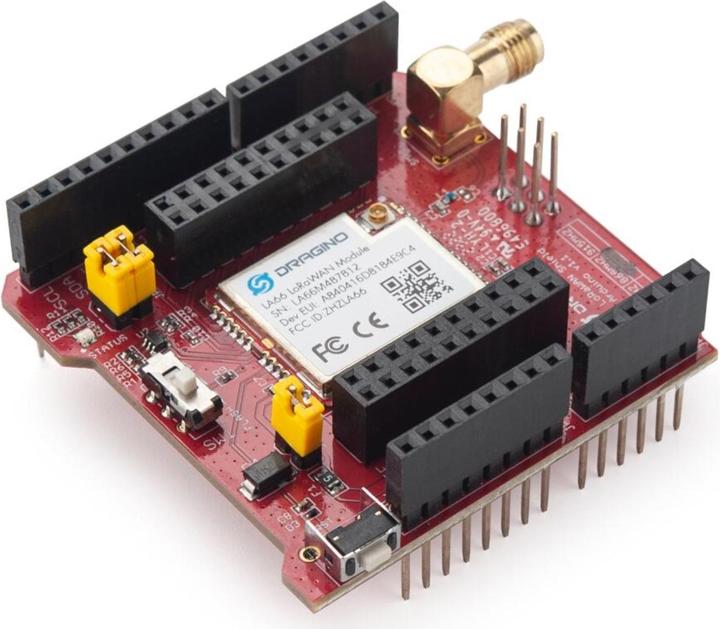

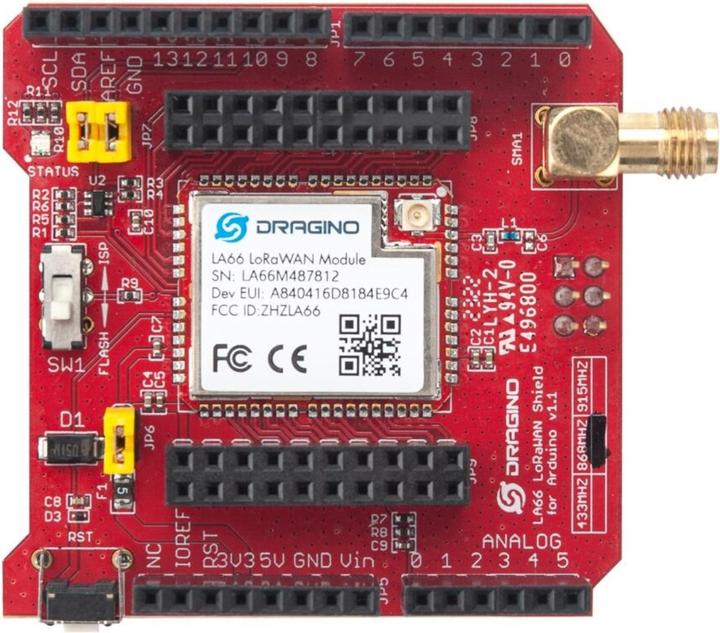

With this LoRaWAN Shield from Dragino you can easily add LoRa connectivity to your Arduino. The microcontroller can use AT commands to communicate with the LA66 and send data over LoRa. The LA66 is equipped with the LoRaWAN v1.0.4 protocol. The LoRa network allows you to transmit and receive data over a long range while consuming very little power. Each LA66 shield includes a globally unique OTAA key for LoRaWAN registration.

Features:
LoRaWAN v1.0.4 Protocol 868MHz.
Compatible with Arduino UNO
TCXO crystal for stable performance even at extreme temperatures
With unique OTAA key for LoRaWAN registration

Technical details:
Manufacturer: Dragino
Model: LA66-LoRaWAN-Shield-EU868
Input voltage: 1.8-3.7V
I/O voltage: 3.3V
Power consumption: 4µA
CPU: 32-bit 48MHz
Flash: 256KB
RAM: 64KB
LoRa Protocol: v1.0.4
Frequency: 868MHz
Max. Output power: +22dBM
Sensitivity: -148dBM
LoRa Tx current: <90 mA at +17 dBm, 108 mA at +22 dBm
LoRa Rx current: <9 mA
Operating temperature: -40°C - 85°C
Weight: 79g

Scope of delivery:
1x Dragino LA66 LoRaWAN Shield 868MHz.

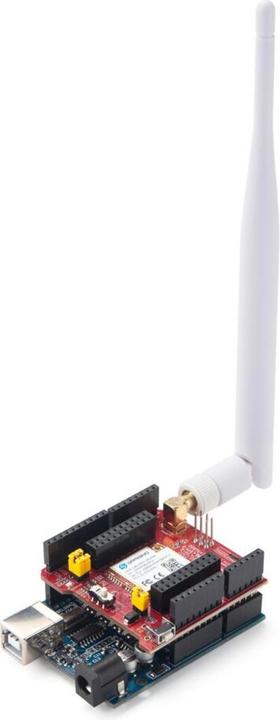

1x 868Mhz Antenna White.

Key specifications

Memory
0.06 MB
Clock speed
868 MHz
Item number
24867480

General information

Manufacturer
Dragino
Category
Development boards + Kits
Release date
23.3.2023
Sales rank in Category Development boards + Kits
209 of 2788

Development board properties

Clock speed
868 MHz
Memory
0.06 MB
Flash memory
256 kB

Power supply

Operating voltage
3.70 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 868Mhz antenna white, 1x Dragino LA66 LoRaWAN Shield 868MHz
