Product details

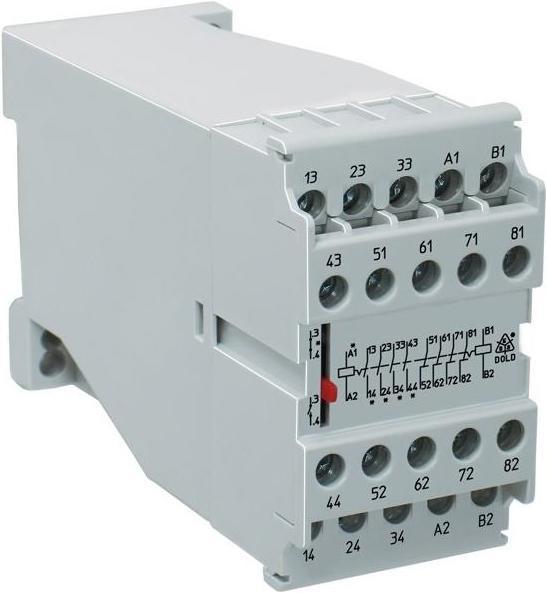

Dold&Söhne Tipping Relay AD8851.19 230V

Manufacturer: Dold&Söhne
Designation: Tipping Relay AC 50/60 Hz
Type: AD8851.19 230V
Electrical connection type: Screw connection
With removable terminals: no
Rated current: 8 A
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Type of voltage for actuation: AC
Drive, polarity: unpolarized
Switching behavior of the drive: bistable
Number of contacts as normally open: 4
Number of contacts as normally closed: 4
Complete device with base: yes
Protection class (IP): IP20
Width: 45 mm
Height: 77 mm
Depth: 127 mm

Dold&Söhne Tipping Relay AD8851.19 230V: additional details
The relay is actuated by pulse or continuous excitation of coils A1-A2 or B1-B2. During simultaneous excitation of both systems, the locking is released, and the contact position corresponds to the excitation of coil A1-A2. All contacts are located on the same magnetic system, which is connected to A1, A2. This ensures that no undefined contact states occur during simultaneous excitation of both systems, according to IEC/EN 61 810-1 with manual operation, contact position indication via a toggle switch.

Key specifications

input voltage
230 V
Electric current output
8 A
Output current type
AC

General information

Item number
23692203
Manufacturer
Dold
Category
Relays
Manufacturer no.
0016356
Release date
11.1.2023

Relay properties

input voltage
230 V
Electric current output
8 A
Output current type
AC
Switching function
Changer
Number of openers
4x
Number of closers
4x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
127 mm
Width
45 mm
Height
77 mm

30-day right of return
24 Months Warranty (Bring-in)
