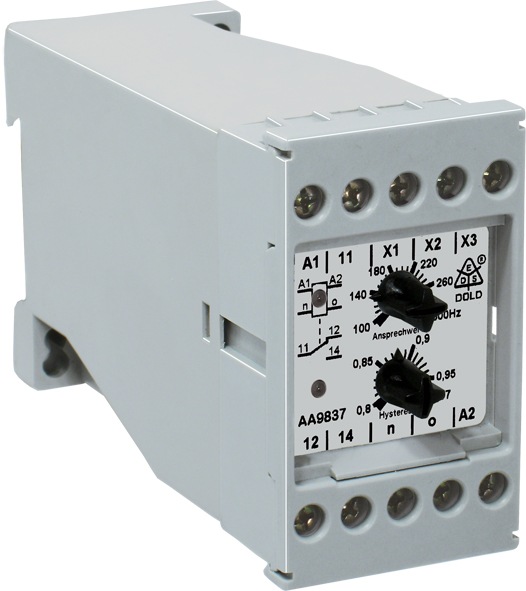

Dold Frequency monitoring relay AC50/60HZ230V AA9837.11 40

Ratings
BrandMore from Dold
Delivered between Wed, 17.6. and Wed, 1.7.
free shipping

Product details

The frequency relay operates on the principle of frequency comparison, where the measurement frequency is compared to a frequency generated within the device that can be adjusted using the setting knob. When a switch bridge is connected between terminals X1 - X2, the output relay drops out if the measurement frequency is greater than the set frequency. The relay re-engages when the measurement frequency is less than the set frequency multiplied by the hysteresis factor. When a switch bridge is connected between terminals X2 - X3, the relay engages if the measurement frequency is greater than the set frequency. The relay drops out again if the measurement frequency is less than the set frequency multiplied by the hysteresis factor. The application of the measurement voltage is indicated by an LED, with low frequencies identifiable by the blinking rhythm. Another LED indicates the switching state of the output relay.

Key specifications

Relay type
Monitoring relay
input voltage
230 V
Output voltage
230 V
Output current type
AC
Number of poles
4x

General information

Item number
36322682
Manufacturer
Dold
Category
Relays
Manufacturer no.
0015138
Release date
15.6.2023

Relay properties

Relay type
Monitoring relay
input voltage
230 V
Output voltage
230 V
Output current type
AC
Switching function
Opener
Number of openers
1x
Number of closers
1x
Number of poles
4x
Max. Switching capacity
0.04 kW

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
60HZ230V AA9837.11 40, Frequency monitoring relay AC50

30-day right of return
24 Months Warranty (Bring-in)
