Doepke GmbH Mains disconnector FSE 1

Ratings
BrandMore from Doepke
Delivered between Thu, 2.10. and Sat, 18.10.
free shipping

Product details

Doepke Network Isolation Switch FSE 1
Manufacturer: Doepke
Designation: Network Isolation Switch
Type: FSE 1
Rated Voltage: 250 V
Rated Current: 16 A
Rated Frequency: 50..60 Hz
Max. Incandescent Lamp Load: 2300 W
Max. Fluorescent Lamp Load: 1000 VA
Max. Fluorescent Lamp Load (Duo Circuit): 1000 VA
Max. Fluorescent Lamp Load (Parallel Compensated): 200 VA
Max. Switching Current (cos phi 0.6): 10 A
Switch-On Threshold Power: 2..15 VA
Switch-On Threshold Current: 9..65 mA
Monitoring Voltage: AC
Mounting Type: DIN Rail
Width in Division Units: 1
Installation Depth: 58 mm
Protection Class (IP): IP30

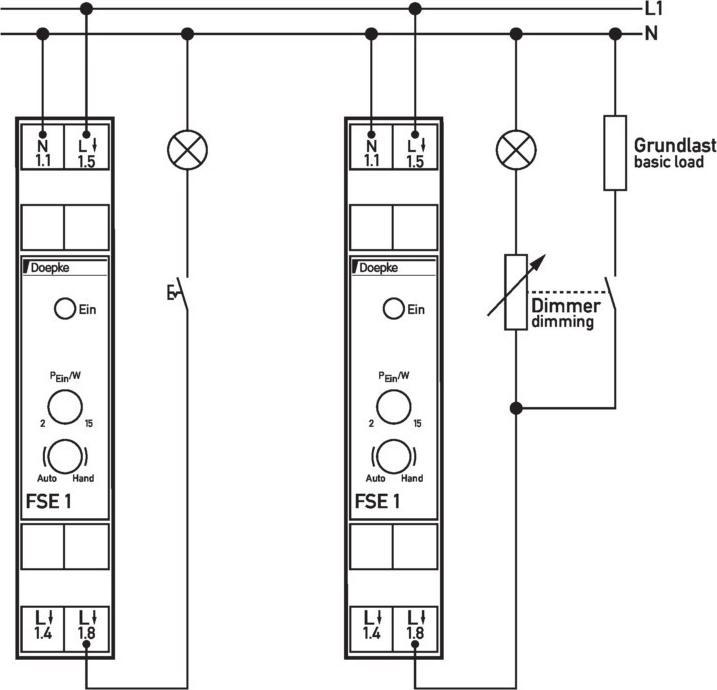

The Doepke Network Isolation Switch FSE 1 disconnects a circuit when the last connected load is turned off. Once the first load is turned on, it restores the mains voltage. This protects against potential health effects from electric magnetic fields. The switch-on threshold of the FSE 1 is adjustable, allowing "phantom loads" to be ignored and preventing continuous activation of the network field relay. The FSE 1 switches off at approximately 2/3 of the switch-on power.

Features:

  • Adjustable switch-on power from 2 VA to 15 VA
  • Rotary switch for automatic and continuous operation
  • Front-mounted LED as a switching status indicator
  • Low self-consumption
  • Robust normally open relay, 230 V / 16 A
  • Module width only 1 division unit (17.5 mm), protection class IP 20
  • Mounting type: Quick fastening on mounting rail
  • Installation position: Any

Applications:
The use of the network field relay is recommended wherever electrical interference fields are undesirable or power losses due to standby functions should be avoided. This is particularly relevant in private and commercially used buildings with loads that are not used for extended periods (lighting, audio/video components, machines, etc.).
EAN: 4014712048126.

Key specifications

Scope of delivery
Mains isolator FSE 1
Output voltage
250 V
Output current type
AC
Electric current output
16 A
Item number
30583164

General information

Manufacturer
Doepke
Category
Relays
Manufacturer no.
09700108
Release date
26.5.2021

Relay properties

Output voltage
250 V
Electric current output
16 A
Output current type
AC
Number of poles
1 x
Max. Switching capacity
0.02 kW
Manufacturer Type
FSE 1

Smart home features

Smart Home
Not compatible

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Mains isolator FSE 1

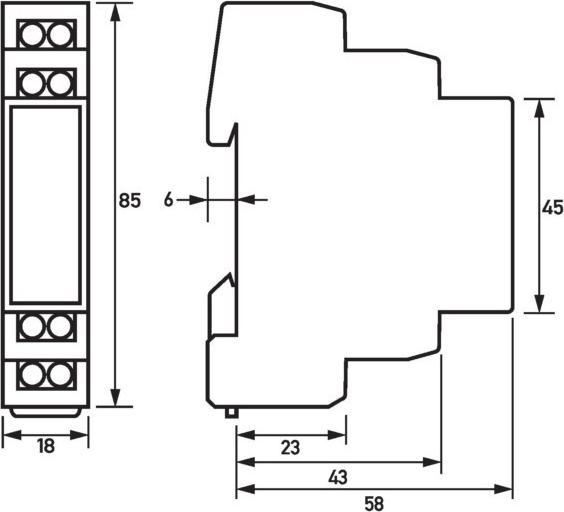

Product dimensions

Length
17.50 mm
Width
17.50 mm
Height
58 mm
