Digitus Patch cable
U/UTP, CAT5e, 0.50 mLength
Product details
Digitus patch cables are manufactured and tested according to ISO/IEC 11801 and DIN EN 50173 CAT 5e standards. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent cabling performance. The performance was tested up to 100 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The Digitus patch cables have been specially developed to meet all requirements in the various application areas to the full extent. Each cable is equipped with an injection-moulded bend protection sleeve with strain relief. In addition, the grommet has a locking lever protection which prevents the cables from getting caught and the locking lever from breaking off from the plug. A simple identification of the category 5e is made possible by the blue colouring of the plugs.
Patch cable type | Copper cable |
Contact assignment | straight |
Item number | 10255160 |
Manufacturer | Digitus |
Category | Network cables |
Manufacturer no. | DK-1512-005 |
Release date | 27.9.2017 |
Sales rank in Category Network cables | 133 of 52311 |
External links |
Cable colour | Grey |
Material | Polyvinyl chloride (PVC) |
Material of the isolation | Polyvinyl chloride |

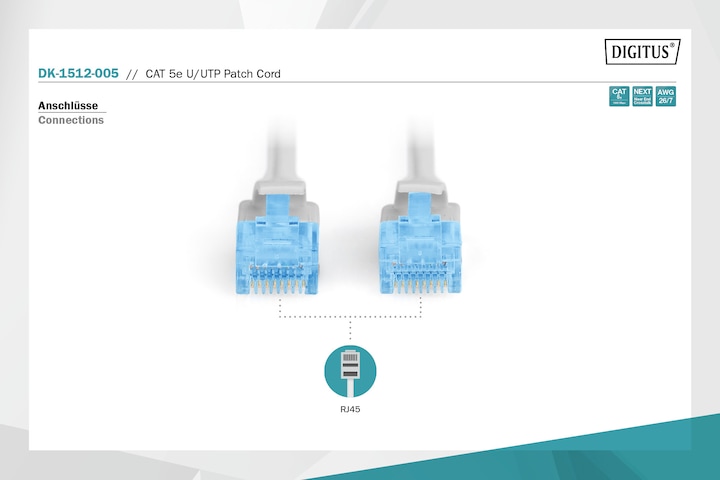

Connection A | RJ45 |
Connection B | RJ45 plug straight |
Cable Application | Network |
Cable design | Round |
Plug type | Flat |
Cable connection | Connection (m/m) |
American Wire Gauge (AWG) | 26 |
Impedance | 100 Ohm |
Patch cable type | Copper cable |
Patch cable Features | Handle protection |
Cable category | CAT5e |
Contact assignment | straight |

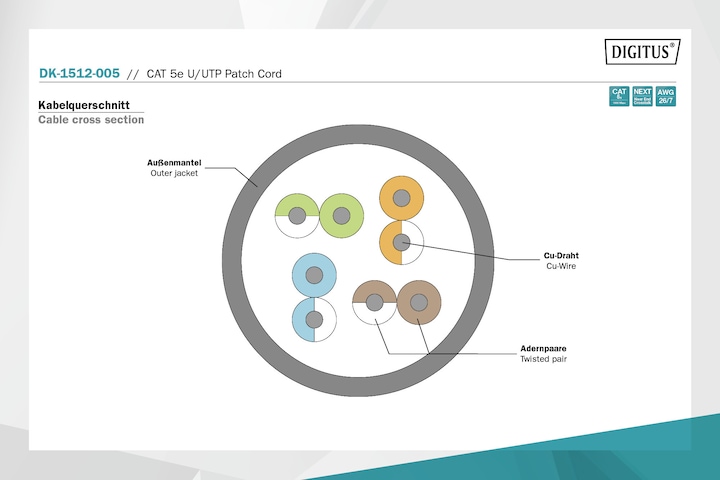

Shield | U/UTP |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | DIGITUS Ecoline patch cable - 50 cm - Grey |
Length | 0.50 m |
Depth | 500 mm |
Weight | 21.60 g |
Length | 11 cm |
Width | 11 cm |
Height | 1.50 cm |
Weight | 18 g |
