Digitus DS-12882

Digitus KVM Switch 4-Port Dual-Display, 4K, Display-Port

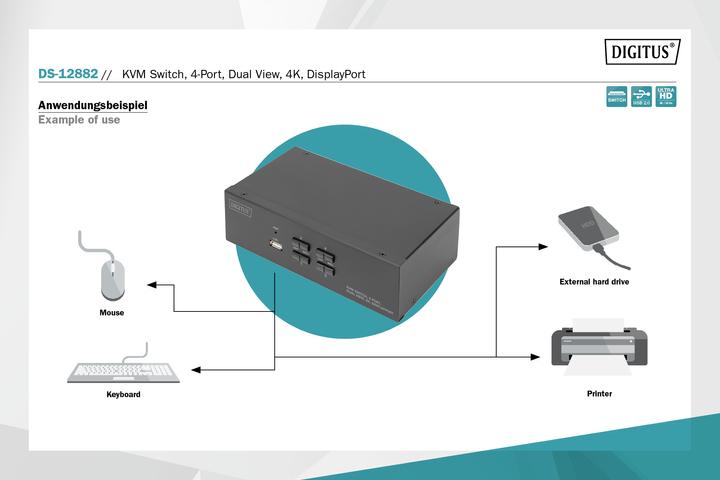

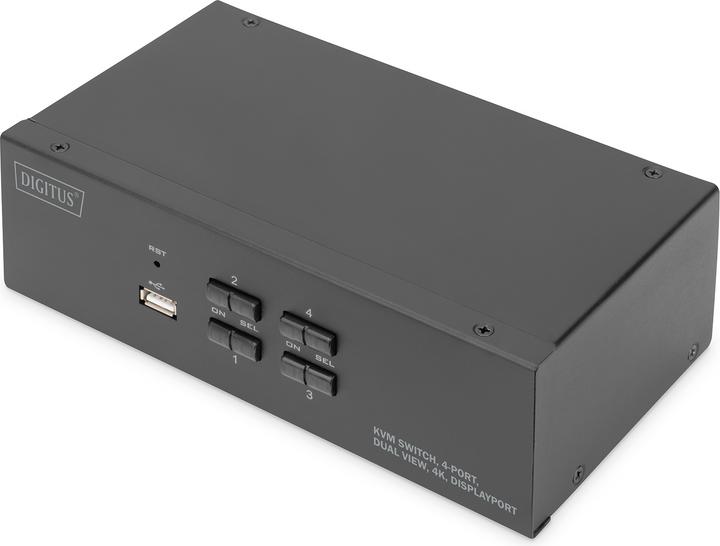

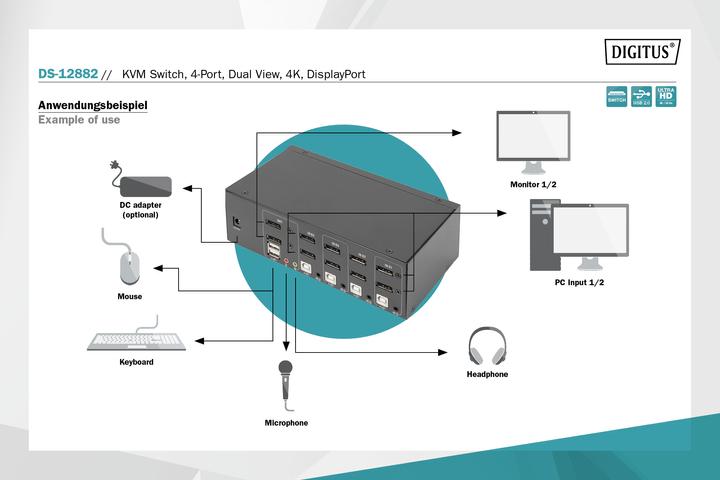

With the Digitus 4-Port KVM Switch for dual displays, you can control four 4K-capable PCs using a single USB keyboard and mouse combination. You can easily switch between the four PCs at the push of a button or using hotkeys, eliminating the need to unplug and replug all cables. The output to up to two monitors is done via the two DisplayPort outputs on the back. Audio signals from the microphone and speakers are also switched. Additionally, there is a USB port on the front that can be used for other peripherals such as USB sticks or external hard drives on both PCs. The connected peripheral devices are assigned to the active PC. Status LEDs on the front of the switch indicate the current configuration at all times. The switch is completed with a robust metal housing.

Features:

• UHD resolution: 4K / 60 Hz (3840 x 2160p) / Subsampling: YUV 4:4:4

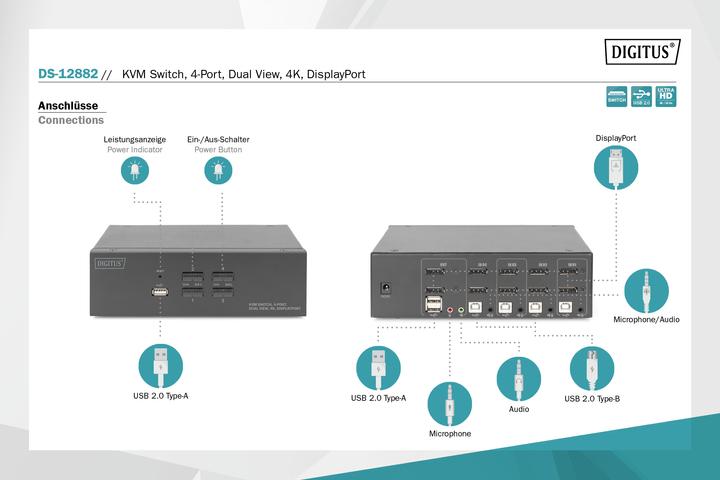

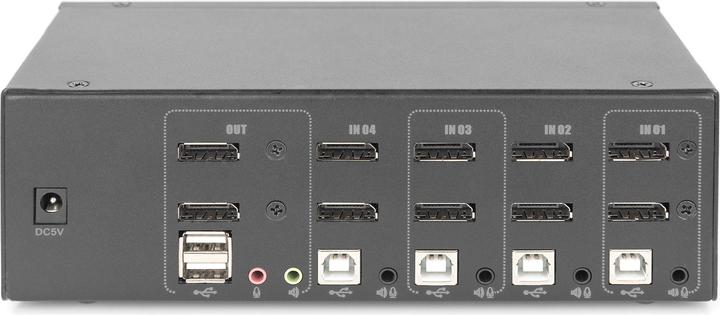

• Inputs:
• 8 x Display Port inputs (4x2)
• 4 x USB-B
• 4 x Audio combo jack 3.5 mm (Microphone, Speaker)
• Outputs (Console):
• 2 x Display Port
• 2 x USB-A (Mouse, Keyboard)
• 2 x Stereo Audio 3.5 mm (Microphone, Speaker)
• Additional connection on the front:
• 1 x USB-A for additional peripheral devices, such as printers or USB sticks
• USB Specification: USB 2.0
• Supported audio formats: Dolby True HD, DTS HD Master Audio
• Switching between PCs: Switch on the front or hotkeys

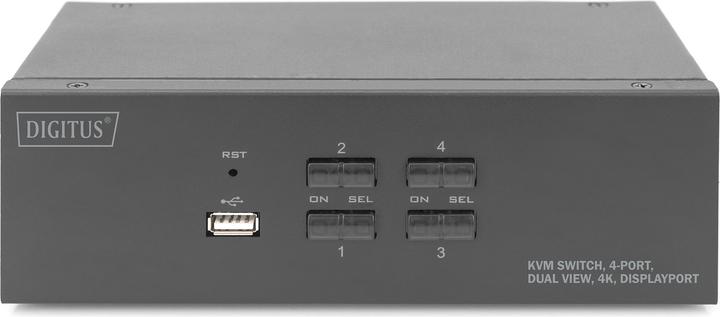

• Status LED on the front shows current configuration
• The device is platform-independent, suitable for all operating systems
• Operating temperature: 0°C ~ 50°C
• Storage temperature: -20°C ~ 60°C
• Operating humidity: 0 - 80% RH (non-condensing)
• Housing material: Metal
• Device power supply: USB power supply or optional 9 V DC power adapter (300mA, 5.5x2.1 mm plug)
• Dimensions (W x D x H): 20.2 x 11.0 x 6.6 cm
• Weight: 920 g.
