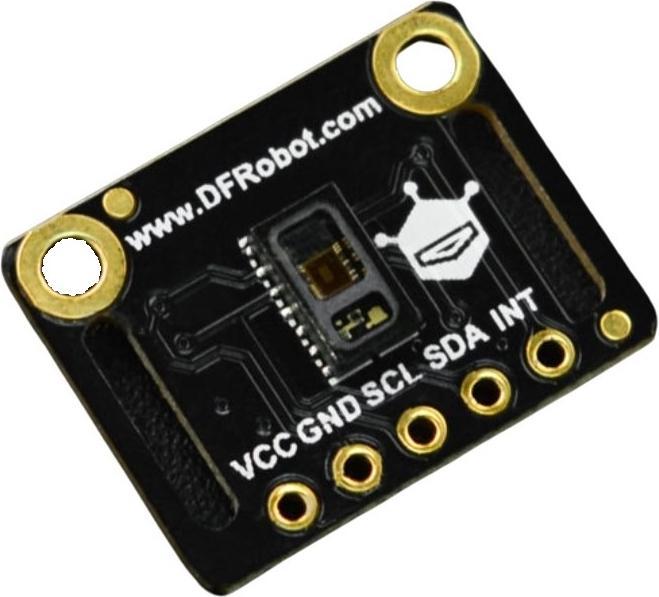

DFRobot MAX30102 Heart Rate and Oximeter Sensor Breakout

Ratings
BrandMore from DFRobot
Currently out of stock
Free shipping starting at 50.–

Product details

The MAX30102 is an integrated pulse oximetry and heart rate monitoring biosensor module based on PPG (Photo Plethysmo Graphy). It is so small that you can easily wear it on your finger or wrist for data collection. The sensor has an internal 18bit ADC and is read out via an I2C interface that is compatible with most controllers.
Note: This product is not a professional medical device and should not be used as a tool for medical diagnosis and treatment.

Features:
Extremely low standby current
High sampling rate
High SNR

Application examples:
Heart rate measurement
SPO2 detection

Technical details:
Power supply: 3.3V to 5V DC
Working current (LED off): <5mA
RED/IR LED drive current: 0-50mA
Communication: I2C
I2C address: 0x57
Operating temperature: -40°C to 85°C
Dimension: 18 x 14 x 4mm
Weight: 7.5g

Scope of delivery:
1x MAX30102 heart rate and oximeter sensor breakout.
1x pin header 1x5p.

Key specifications

Item number
24919844

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
28.3.2023
Sales rank in Category Development boards + Kits
194 of 2739

Power supply

Operating voltage
3.30 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

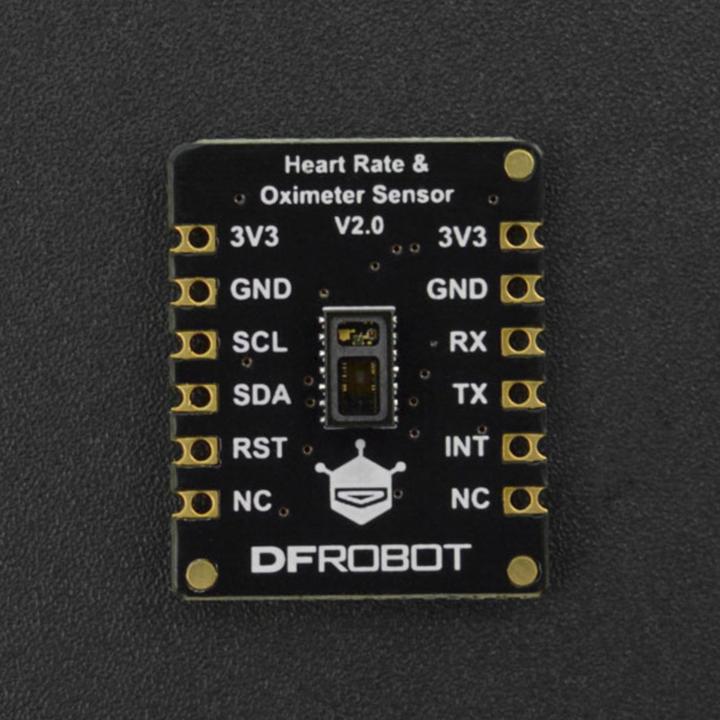

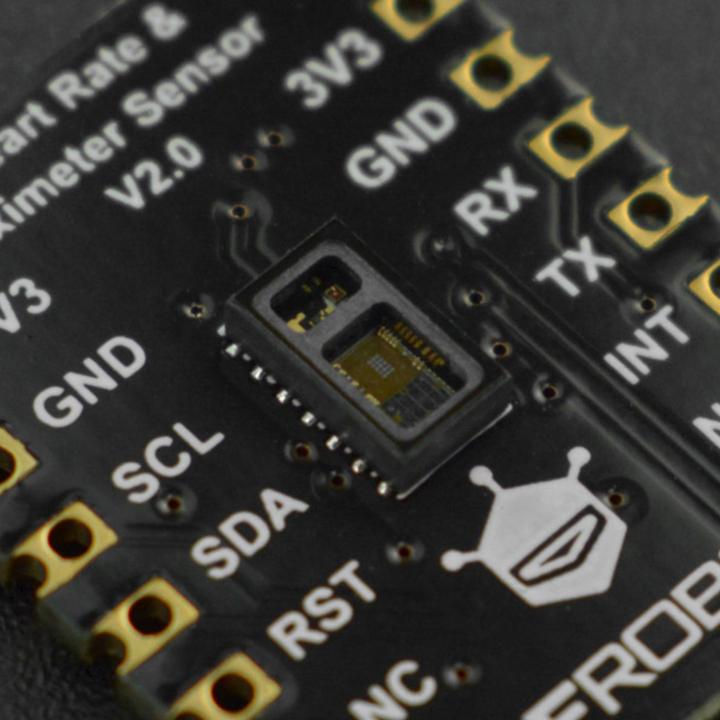

1x MAX30102 Heart rate and oximeter sensor Breakout V2, 2x pin header 1x6p

Product dimensions

Length
18 mm
Width
14 mm
Height
4 mm
Weight
7.50 g
