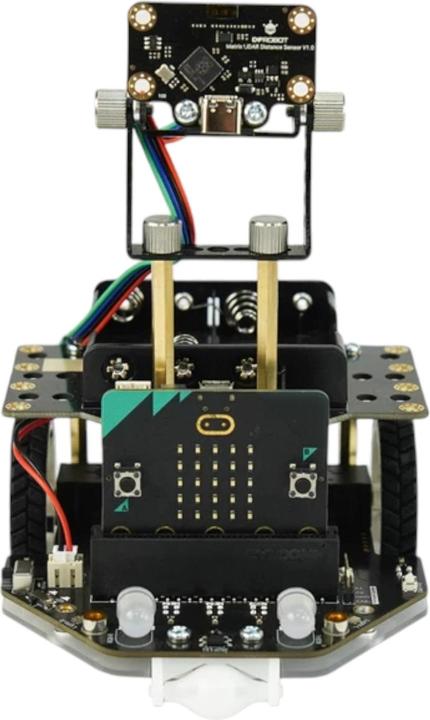

DFRobot Maqueen micro:bit Plus V3 18650 Educational Programming Robot Platform

The DFRobot Maqueen Plus V3 is the latest generation of the popular Maqueen series, specifically designed for robotics competitions and educational purposes. With its robust construction, precise motor control, and advanced sensors, it offers numerous opportunities for hands-on learning. The integrated line-tracking system with five sensors can detect intersections and allows for various algorithms with adjustable speed. A matrix laser sensor provides highly accurate distance measurements and obstacle detection at up to 60 Hz. The removable metal motors are equipped with encoders and support PID control for precise angle and distance management. Additionally, the robot features programmable RGB headlights, ambient lighting, and an integrated buzzer for acoustic signals. Thanks to its modular design and numerous GPIO expansions, it is flexible for additional modules.

Recommended accessories:
BBC micro:bit V2
1x Li-Ion battery 3.7V 3200mA NCR18650B 18650 with button top
DFRobot HUSKYLENS Easy-to-use AI Vision Camera Sensor

Technical specifications:
Manufacturer: DFRobot
Manufacturer SKU: MBT0050-18650
Power Supply: 1× 18650 Li-Ion, 3.5–4.2 V, reverse polarity protection
Line-Tracking System: 5 sensors, calibration button, digital/analog, 4 intersection types (X, T, Right+Straight, Left+Straight), 5 speed levels
Matrix Laser Sensor: I²C/UART/USB (PH2.0-4P & Type-C), 8×8 matrix, 20–4000 mm, ±11 mm (20–200 mm white), ±5 % (200–4000 mm white), up to 60 Hz, field of view 60°×60°, Class 1, firmware update via USB
Light Sensors: 2×, range 0–1023
IR Receiver: 1×
Motors: 2× N20 metal motors, removable, screw fastening, independent 5 V control
Encoder: Magnetic, 4-line, PID control, measurement in cm/min
RGB LEDs: 4× WS2812 ambient, 2× front headlights RGB programmable
Buzzer: 1×
Expansion: 14× GPIO, 3× servo ports
Firmware: Update interface and button integrated
Dimensions: 185 × 138 × 120 mm
Weight: 479 g.
