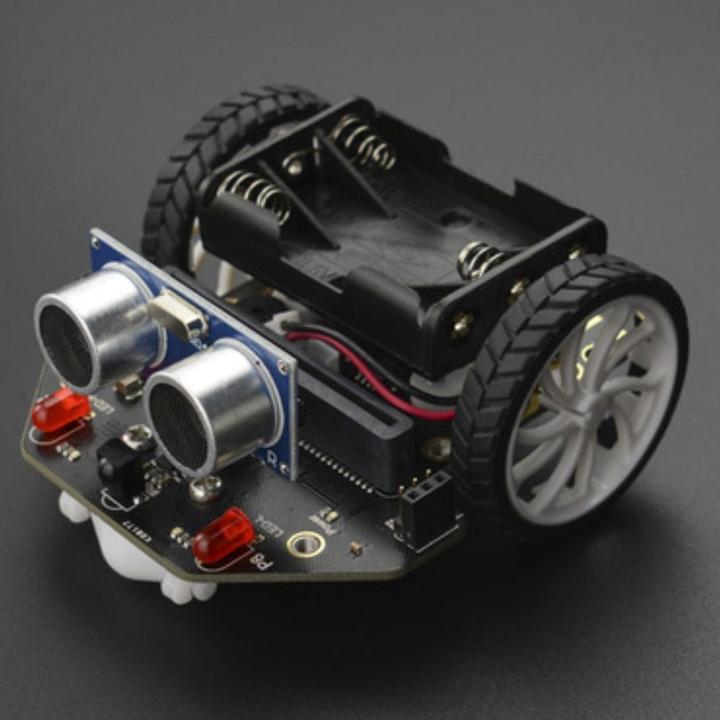

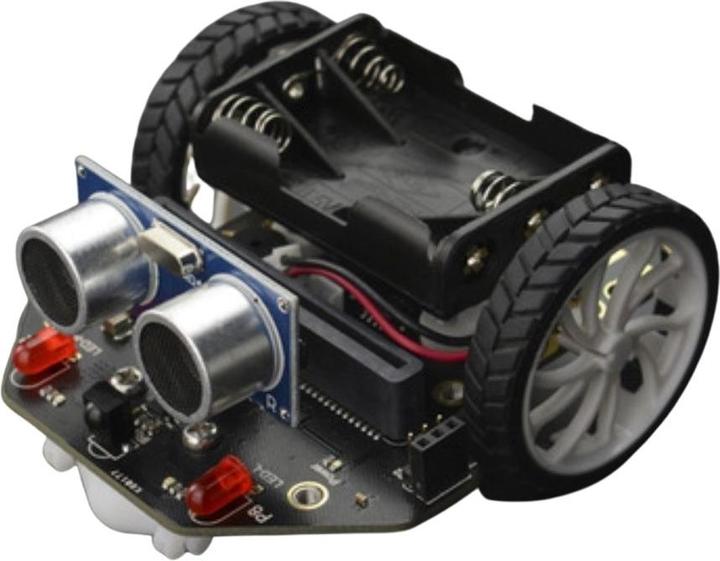

DFRobot Maqueen micro:bit Educational Programming Robot Platform

Hello, my name is Maqueen and I am a graphically programmable robot. The mini robot offers interesting features and is plug-and-play. This allows children to quickly learn graphical programming to spark their interest in science and logical thinking. You can do the robot's graphical programming using the online editor, where you will also find many example codes for the robot. Maqueen is also accessible on the Mind+ programming platform. Mind+ is a Scratch 3.0-based graphical programming platform from DFRobot that supports Python, Arduino, and other programming platforms. Currently, Mind+ is applied to all kinds of sensors, modules, and related learning products.

Info: The robot is powered by a BBC micro:bit. However, this is not included and must be ordered separately.

Features:

• Recommended age: from 8 years
• Support for Microsoft Makecode and Mind+
• Small size with very flexible mobility
• Metal gear motors for high driving force
• Easy and quick assembly
• The robot is already equipped with many sensors, allowing it to follow a black line or avoid obstacles

Technical Details:

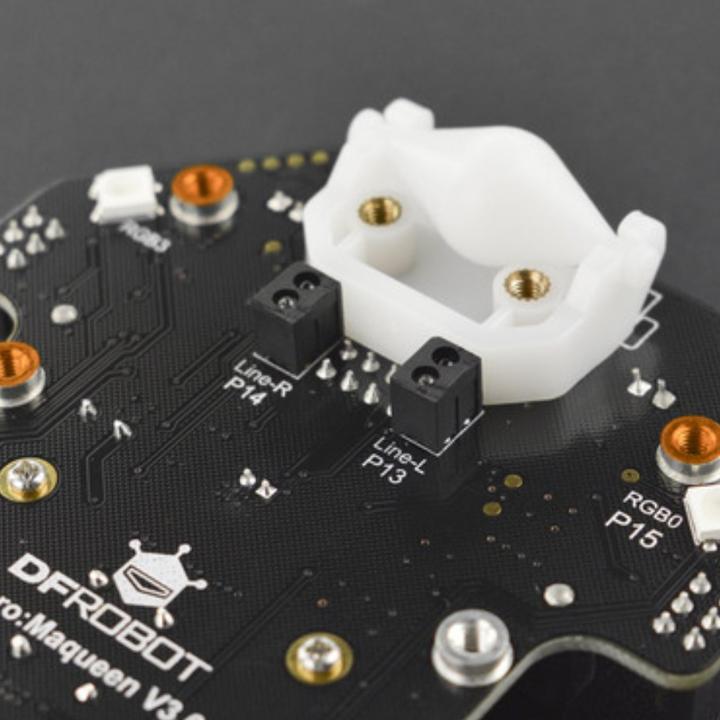

• Sensors: 2x infrared grayscale sensors, 1x buzzer, 1x infrared receiver (NEC decoder), 2x red LED lights, 4x RGB LED underbody lighting
• Interfaces: 1x SR04, SR04P ultrasonic interface (5V), 1x IIC interface 3.3V, 2x DFRobot Gravity extension interfaces
• Various characteristics:
• Supply voltage 3.5V to 5V DC

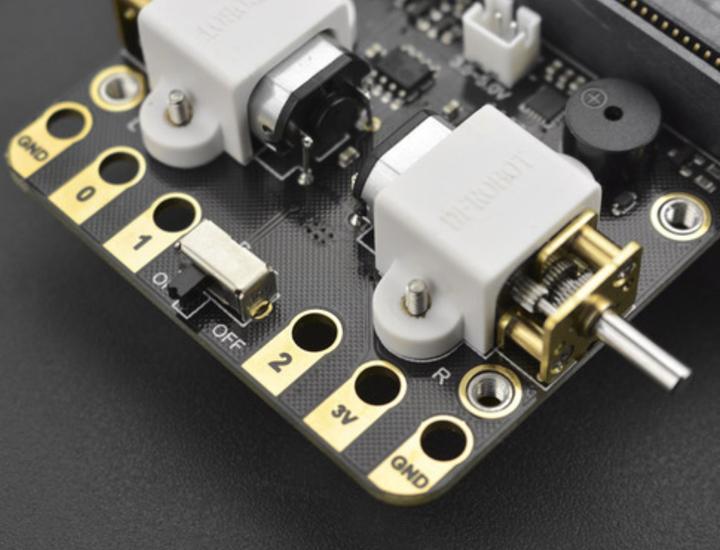

• 2x N20 metal gear motors
• Gear ratio of the motor: 1:150
• Maximum speed: 133 RPM
• Motor control: PWM
• Dimensions: 81 x 85 x 44 mm
• Weight: 158 g

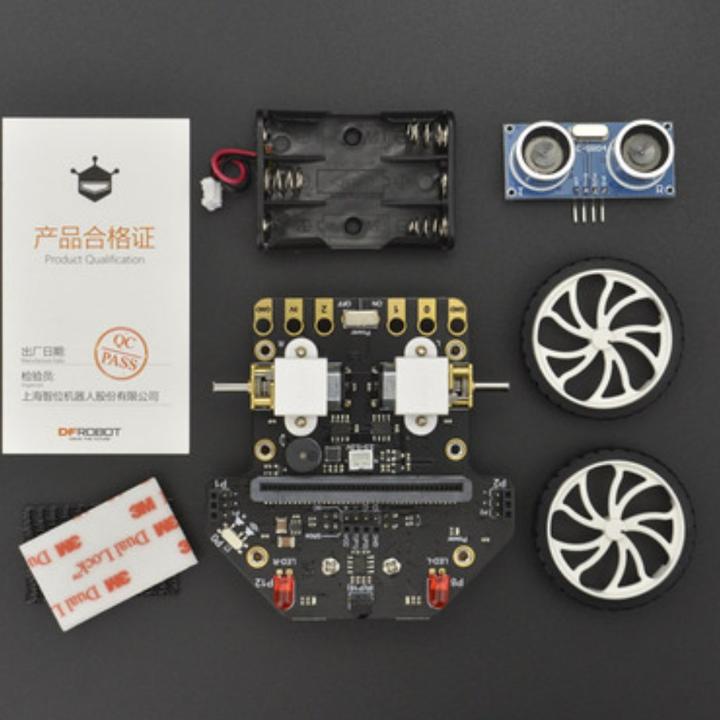

Delivery includes:

• 1x robot PCB base
• 2x wheels
• 1x SR04 ultrasonic distance sensor
• 1x battery holder for 3x AAA batteries (batteries not included)
• 1x mounting material for battery holder and motors.
