DFRobot Lithium battery charger

Ratings
Delivered between Tue, 3.6. and Wed, 4.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

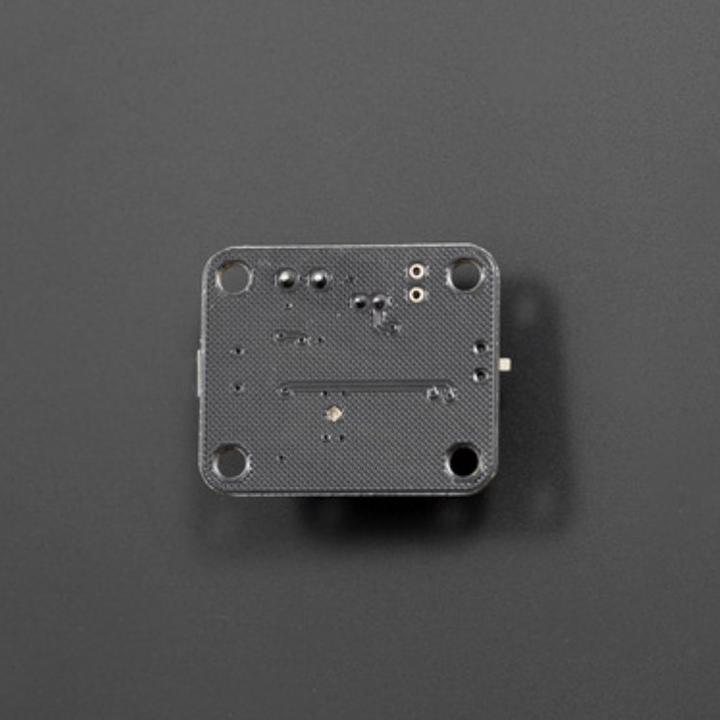

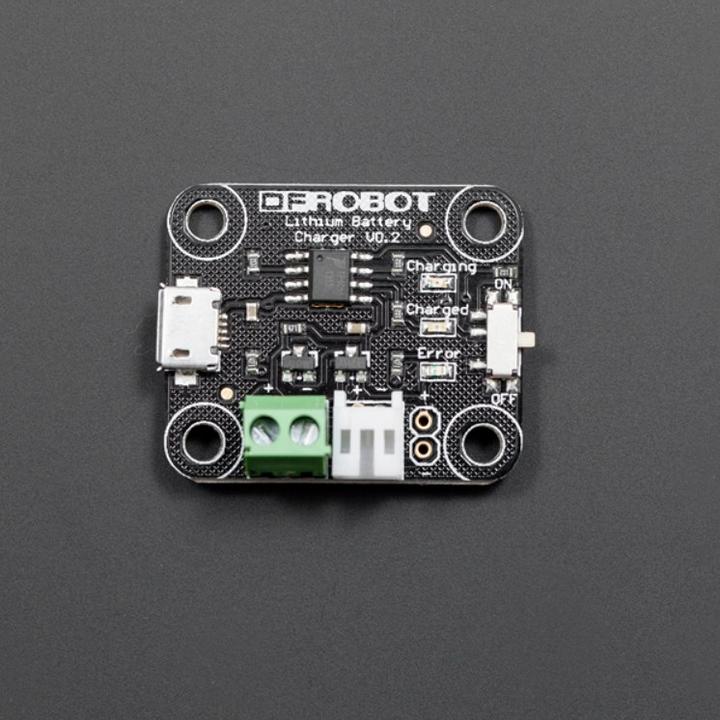

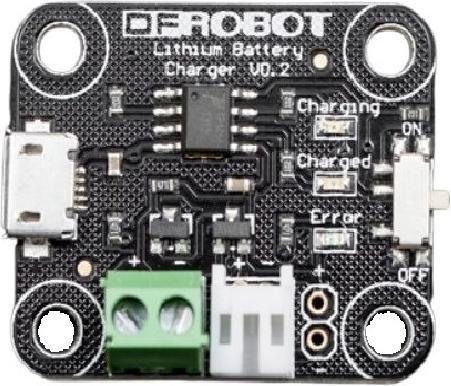

This LiPo battery charger from DFRobot is designed for charging batteries with a JST PH2.0 connector. The lithium battery charger can charge 3.7V batteries at a current of 500mA per hour. It is intended for charging single-cell Li-ion or Li-polymer batteries. The board features a TP4056 charging circuit, a status LED, a connector for the battery (JST type PH2.0, screw terminal, or solder connection), and a micro USB port. Four small mounting holes allow for easy attachment of the board.

Technical Details:
Charging Regulator Chip: TP4056
Power Connection: Micro USB
LiPo Connection: JST PH2.0, screw terminal, or solder connection
Charging Type: Linear
Operating Temperature: -10 degrees to +85 degrees
Default Charging Current: 500mA (R3=2k Ohm can be swapped for higher currents)
Charging Precision: 1.5%
Input Voltage: 4.5V to 5.5V DC
Full Charge Voltage: 4.2V
Mounting Hole Diameter: 3.2mm
Weight: 9g
Dimensions: 3.2 x 2.7 x 10mm

Package Includes:
1x DFRobot Lithium Battery Charger.

Key specifications

Item number
24873487

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
24.3.2023

Power supply

Operating voltage
5.50 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x DFRobot Lithium battery charger

Product dimensions

Length
32 mm
Width
27 mm
Height
100 mm
Weight
9 g
