Product details

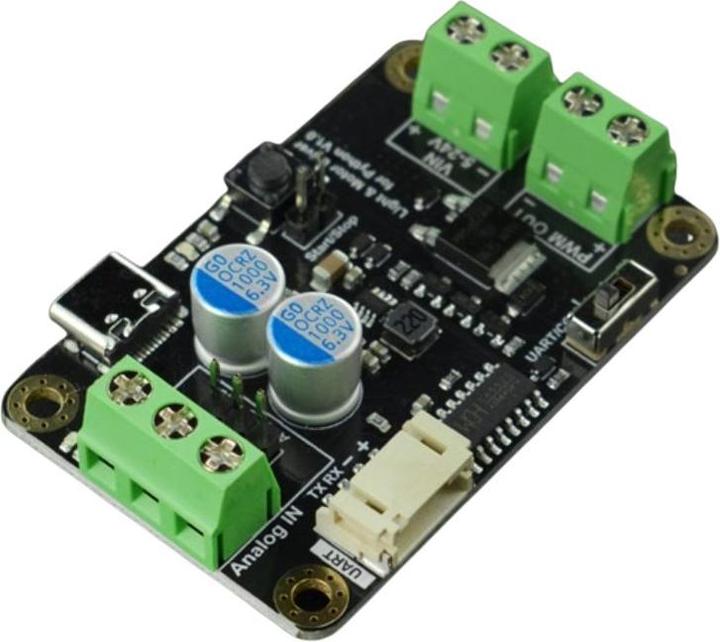

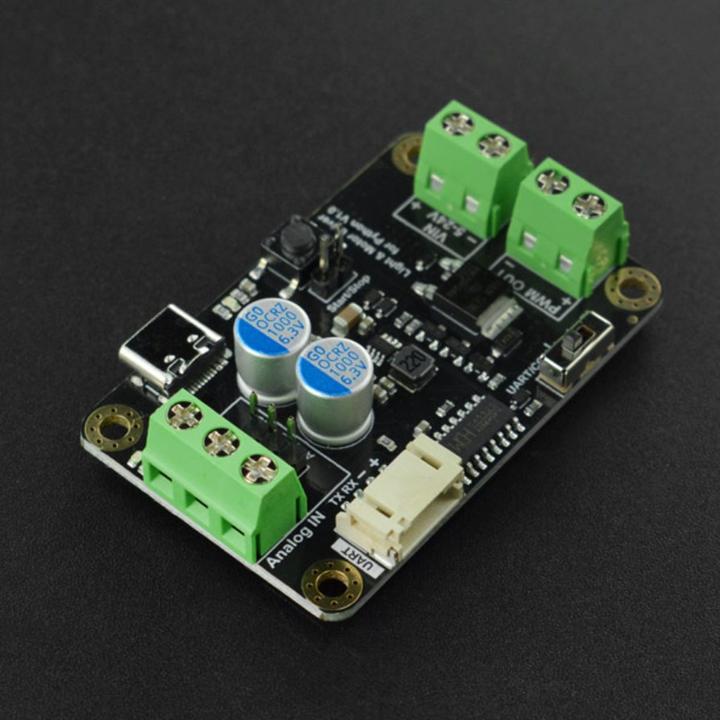

This is a PWM Driver Board from DFRobot. The PWM board can be easily controlled via four different interfaces (USB Python, PC Host, UART, or Analog). The maximum current output is 10A, allowing it to power a 10W motor or an LED strip of approximately 5m in length.

Features:

  • Simple and easy-to-use programming with Python code, no mainboard or adapter required.
  • Plug and play control via Windows software, no programming needed.
  • UART communication control, convenient for long-term use of embedded devices.
  • External potentiometer control for manual operation, no programming required.
  • Standard MODBUS protocol, which is public, allowing you to flexibly customize your own control method.
  • Wide voltage range from 5V to 24VDC.
  • Current capacity of up to 10A.
  • Example code available for Python, Arduino, PC, and analog control.

Technical Details:

  • Manufacturer: DFRobot
  • Manufacturer SKU: DRI0050
  • Voltage: 5V-24V
  • Max Current: 10A
  • PWM Frequency Range: 183Hz – 4687Hz
  • PWM Channels: 1

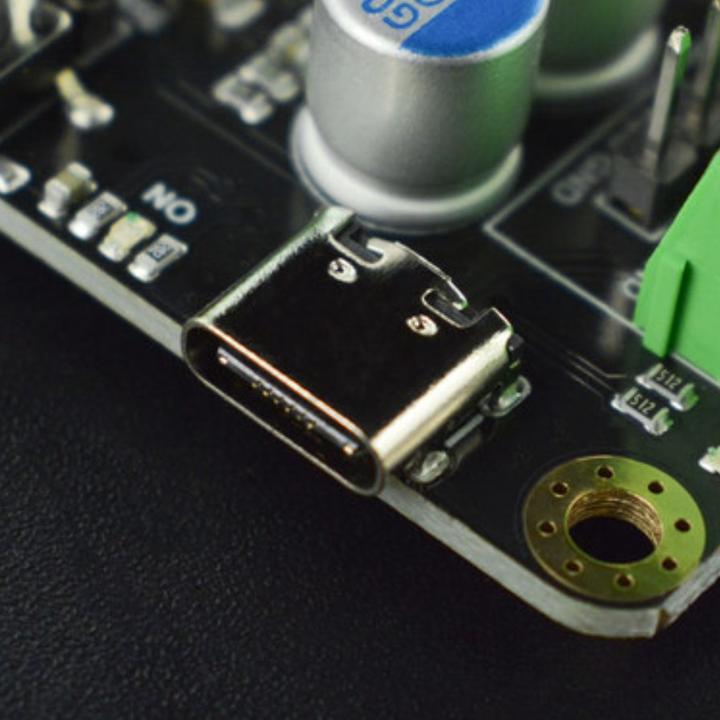

  • USB Interface: Type-C
  • UART Interface: PH2.0-4P
  • Mounting Holes: Ø3.1mm
  • Dimensions: 57 x 37 x 14mm
  • Weight: 30g

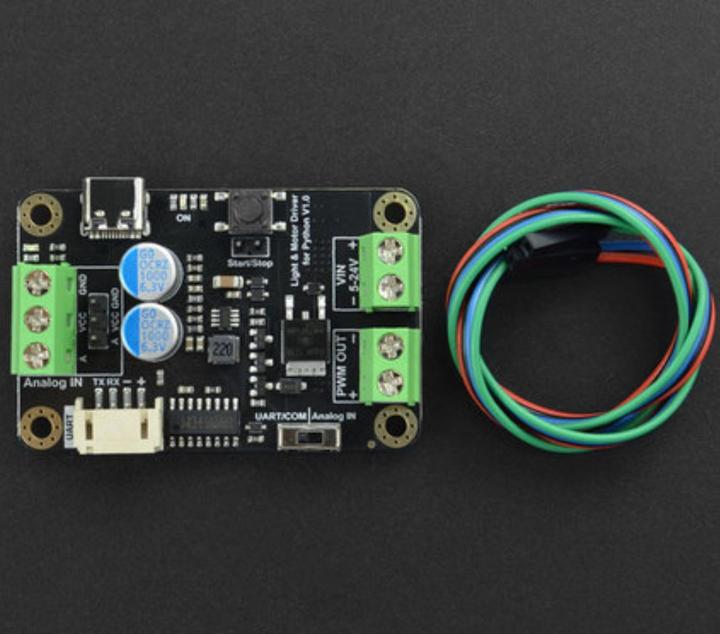

Package Contents:

  • 1x Light and Motor Driver Module for Python
  • 1x Gravity IIC/UART Sensor Cable 30cm.

Key specifications

Development board type
Kit
Item number
24936646

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
30.3.2023

Development board properties

Development board type
Kit

Power supply

Operating voltage
24 V

Connections

USB ports
USB-C

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x Gravity IIC/UART sensor cable 30cm, 1x light and motor driver module for Python

Product dimensions

Weight
30 g
