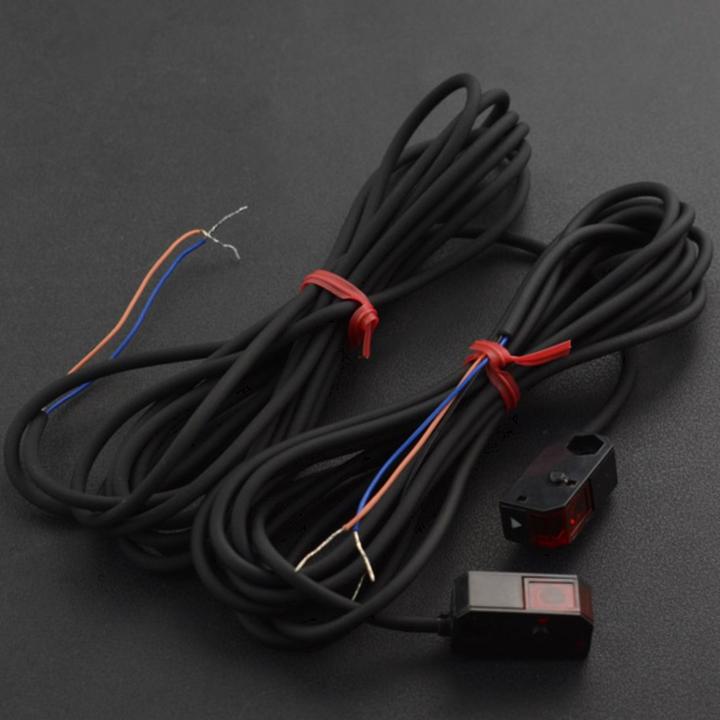

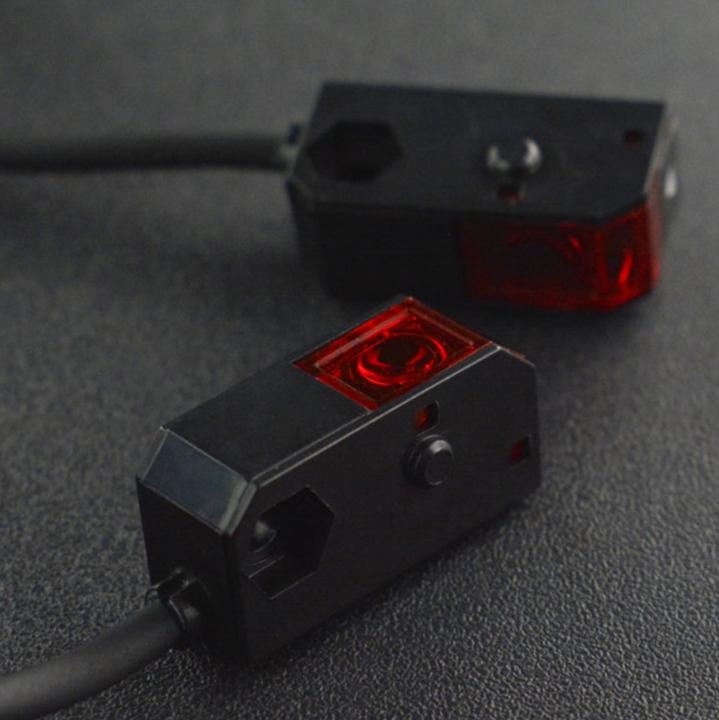

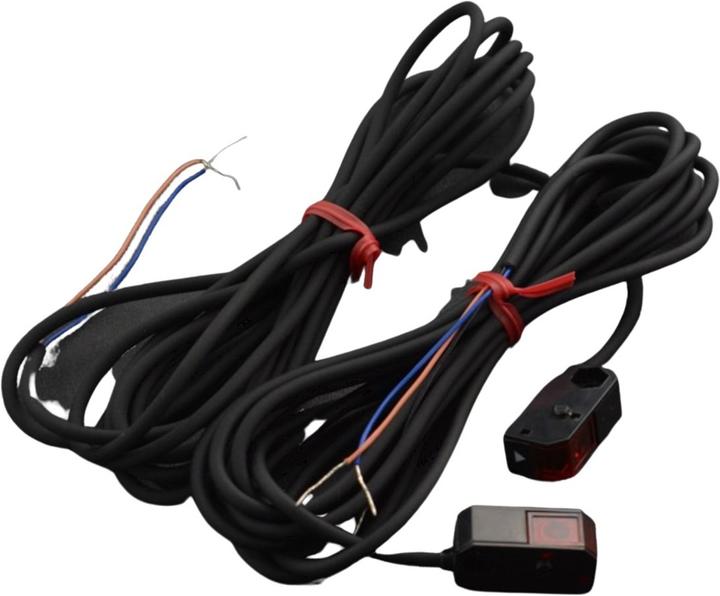

DFRobot Infrared light barrier 1.5m 9-24V

Delivered between Tue, 8.7. and Wed, 9.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

The infrared light barrier has a detection range of up to 1.5 meters and a fast response time of less than 1 millisecond. It consists of a transmitter and a receiver and is suitable for temperatures ranging from -20°C to 65°C. The light barrier is used in various industries, including machine automation and the automotive industry, and is also suitable for speed detection and timing in intelligent robot competitions. Due to its independence from weather influences, it is particularly accurate in measurement.

Note: To use the sensor with an Arduino, the signal voltage must be reduced to 5V. This can be achieved with a simple voltage divider or an optocoupler.

Recommended accessory: 1-channel EL817 optocoupler 12V

Technical details:
Manufacturer: DFRobot
Manufacturer SKU: SEN0347
Voltage: 9-24V
Output form: Three-wire DC
Output type: NPN
Detection distance: 150cm
Output current: 200mA
Housing material: Polymer
Operating temperature: -20~65°C
Operating frequency: 1000Hz
Response time: < 1ms
Wiring: blue-GND, brown-VCC, black-output signal
Dimensions: 22.4 x 11.2 x 8.3mm
Weight: 48g

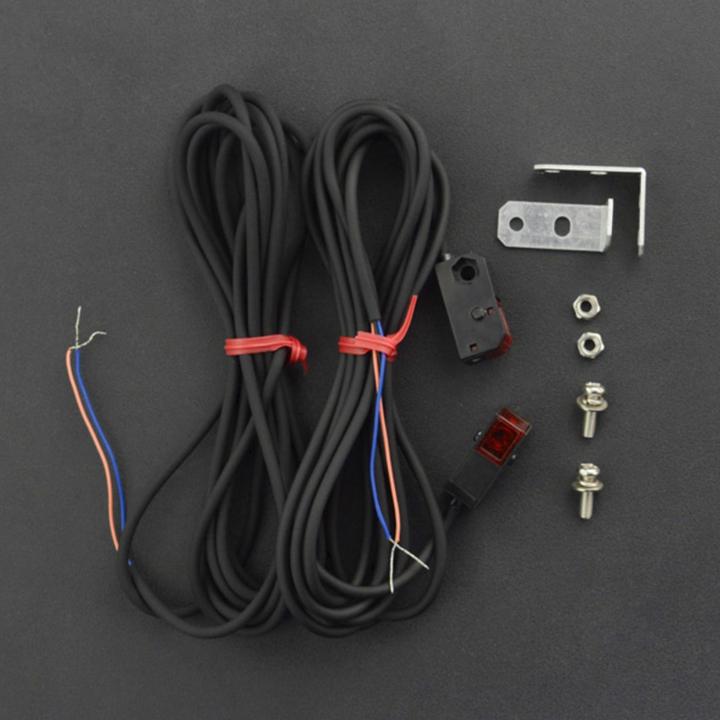

Delivery includes:
1x Infrared light barrier 1.5m 9-24V
1x Mounting material.

Key specifications

Item number
33011381

General information

Manufacturer
DFRobot
Category
Home automation
Release date
16.5.2023

Home automation properties

Range
1.50 m
Manufacturer Type
SEN0347

Power supply

Electric current output
0.20 A

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x infrared light barrier 1.5m 9-24V

Product dimensions

Weight
48 g

30-day right of return
24 Months Warranty (Bring-in)
