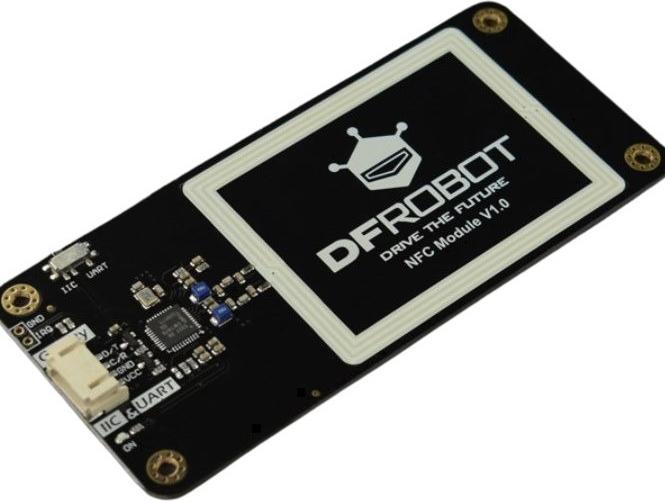

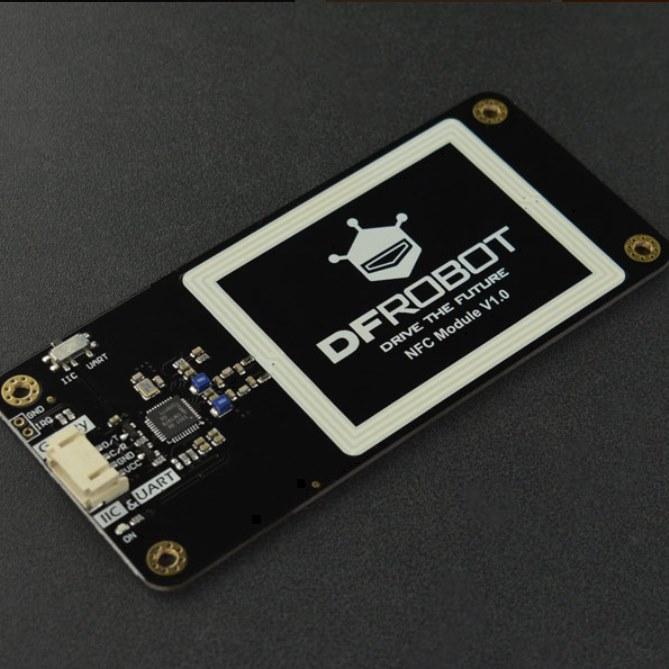

DFRobot Gravity PN532 NFC RFID Module with UART and I2C

The Gravity NFC RFID Module from DFRobot uses an NXP PN532 chip. The PN532 is a highly integrated NFC communication controller that supports various types of NFC chip cards or NFC tags, as well as RFID cards like the MIFARE Classic Series and NTAG. The module features a large PCB antenna, allowing NFC chips to be read from a distance of up to 10 mm. When controlling the Gravity NFC RFID Module via the I2C interface, it can be easily used with various microcontrollers such as Arduino, micro:bit, FireBeetle ESP32, FireBeetle ESP8266, or Raspberry Pi. NFC (Near Field Communication) is a wireless technology that enables contactless point-to-point data communication between devices at a distance of about 10 mm. It is commonly used in applications such as access control systems, contactless payment systems, meal cards, and smartphone NFC applications.

Features of the Gravity NFC RFID Module:

• Easy connection via the I2C Gravity interface
• Onboard PN532 chip, supports various NFC/RFID cards like MIFARE/NTAG2xx, etc.
• Three selectable communication interfaces: I2C and UART, configured via a switch
• Connection cable with Dupont Female, allowing easy connection to an Arduino, ESP32, ESP8266, or Raspberry Pi
• Example programs for Arduino available

Technical Details:

• NFC Controller: PN532
• Operating Voltage: 3.3 V to 5 V
• Operating Frequency: 13.56 MHz
• Communication Interfaces: I2C, UART
• I2C Address: 0x48
• Standard Baud Rate: 115200 bps
• Supported Protocols:
• Reader/Writer Mode: ISO/IEC 14443A, ISO/IEC 14443B, MIFARE, FeliCa
• Card Emulation Mode: ISO 14443A/MIFARE Classic 1K or 4K, FeliCa
• Peer-to-Peer: ISO/IEC 18092, ECM340
• Dimensions: 110 × 50 × 7.5 mm
• Weight: 37.8 g

Package Includes:

• 1x Gravity NFC RFID Module with UART and I2C
• 1x Gravity IIC/UART Sensor Cable
• 1x 1x2Pin Header
• 1x MIFARE Classic NFC Tag Round.
