DFRobot Gravity Non-contact Digital Water / Liquid Level Sensor for Arduino
Supplied by
Free shipping starting at 50.–

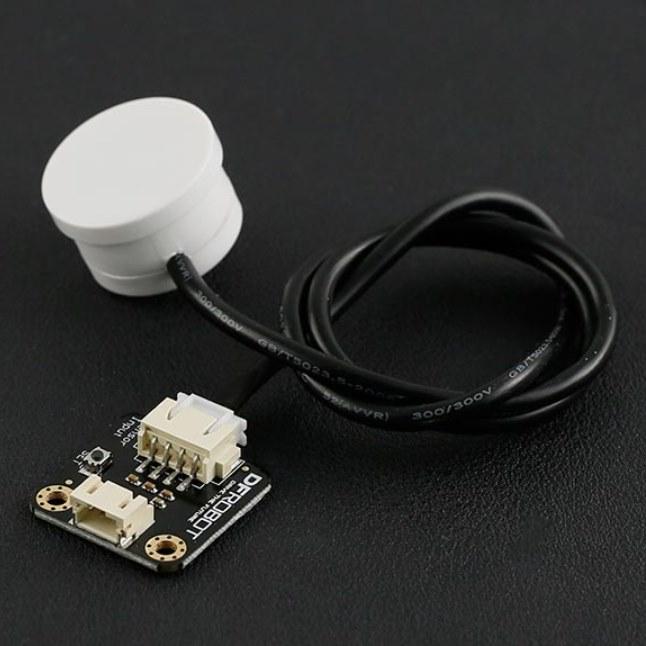

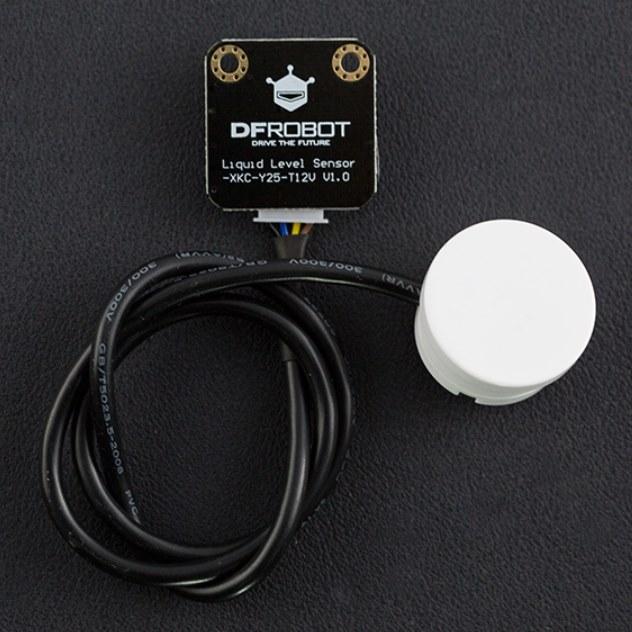

The XKC-Y25-T12V is a non-contact water and liquid level sensor for Arduino. It utilizes advanced signal processing technology with a powerful chip (XKC-Y25-T12V) and a capacitance measurement principle to enable non-contact level detection. By measuring without contact, the module is suitable for hazardous applications, such as detecting toxic substances, strong acids, strong alkalis, and all types of liquids in a sealed container under high pressure. The sensor cannot be used with metal containers; otherwise, there are no special requirements for the liquid. The liquid sensor is easy to use and install. The level sensor comes with an interface adapter that is compatible with the DFRobot Gravity interface. Four sensitivity levels can be configured by pressing the SET button.
Technical Details:
Chip: XKC-Y25-T12V
Not suitable for metallic containers
Interface: Gravity Digital
Operating Voltage (InVCC): 5 to 24V DC
Current Consumption: 5mA
Output Voltage (High Level): InVCC
Output Voltage (Low Level): 0V
Output Current: 1 to 50mA
Response Time: 500ms
Operating Temperature: 0 to 105°C
Material: ABS
Sensor Diameter: 23mm
Sensor Height: 16.9mm
Weight: 29.5g
Delivery Includes:
1x Gravity Non-contact Digital Water/Liquid Level Sensor for Arduino
1x Adapter Board
1x Gravity 3-pin Digital Sensor Cable PH2.0 to XH2.54.
Development board type | Kit |
Item number | 43488809 |
Manufacturer | DFRobot |
Category | Development boards + Kits |
Release date | 6.3.2024 |
Development board type | Kit |
Operating voltage | 24 V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x adapter board, 1x Gravity 3pin digital sensor cable PH2.0 to XH2.54, 1x Gravity Non-contact Digital Water / Liquid Level Sensor for Arduino |
Weight | 29.50 g |
