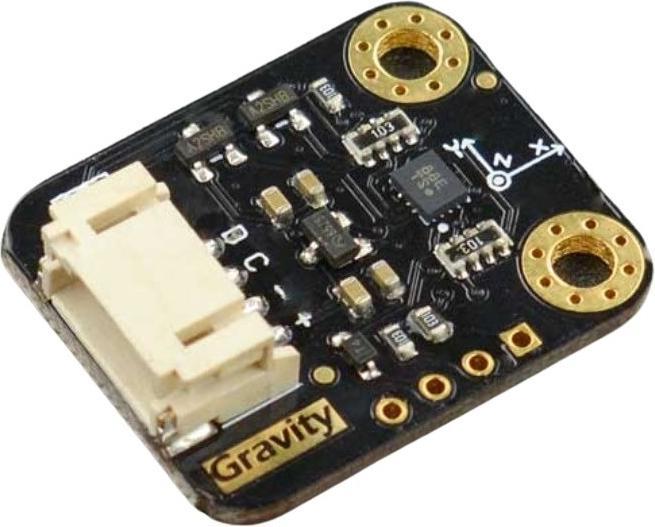

DFRobot Gravity I2C BMI160 6-Axis Motion Sensor with Gyroscope

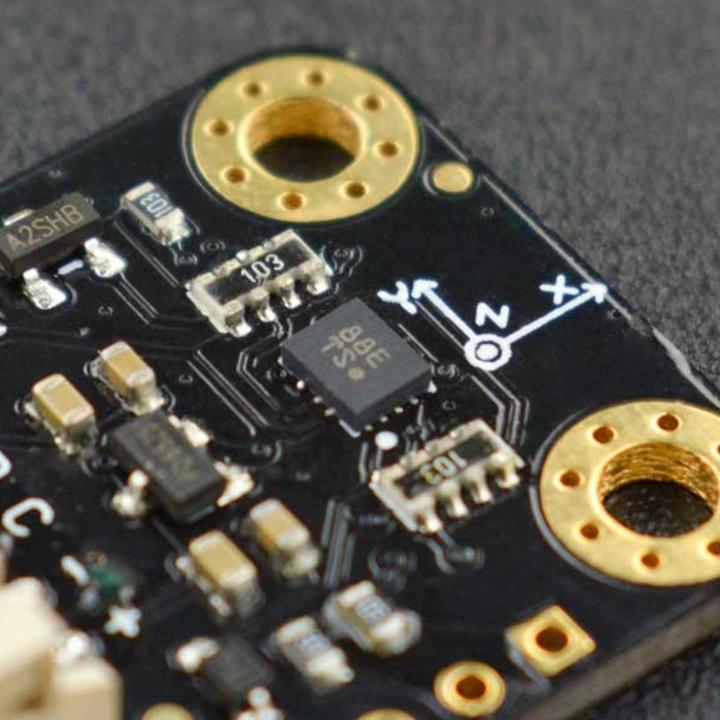

This 6-axis motion sensor features a 3-axis accelerometer and a 3-axis gyroscope. The BMI160 motion sensor is based on the Bosch BMI160 6-axis MEMS sensor, which combines a 16-bit 3-axis accelerometer with a low-power 3-axis gyroscope. The Bosch BMI160 is designed for smartphones, tablets, and wearable devices. It includes built-in intelligent step counting algorithms that can be read directly via registers. The integrated 3-axis accelerometer and 3-axis gyroscope can detect running, fitness activities, and other movements. The integrated LDO power management chip supports a wide operating voltage range of 3.2 to 6V and also features an I2C level converter. This allows the sensor to be operated with 3.3V and 5V microcontrollers such as Arduino, ESP32, or ESP8266.

Info: The connection cable can be converted to male by attaching a 10cm Dupont M-M cable. This makes it easy to use with an Arduino UNO.

Features of the BMI160:

• Step count
• Acceleration detection
• Tilt measurement
• Switching between horizontal and vertical mode

Technical details:

• Operating voltage: 3.2V to 6V
• Current consumption: <1mA
• Interface: Gravity I2C
• Acceleration range: ±2g/±4g/±8g/±16g
• Gyroscope range: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
• Acceleration zero-g offset: ±40mg
• Gyroscope zero-offset: ±10°/s
• Programmable frequency: 25/32Hz to 1600Hz
• 6D detection and localization
• 16-bit data output
• 2 independent programmable interrupts
• Integrated 1024Byte FIFO
• Operating temperature: -40°C to +85°C

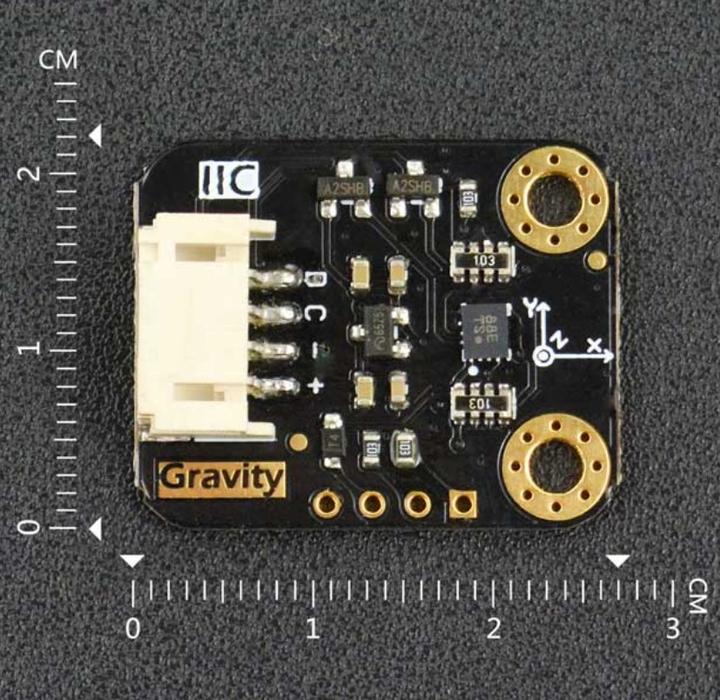

• Dimensions: 22 x 27mm
• Weight: 13g

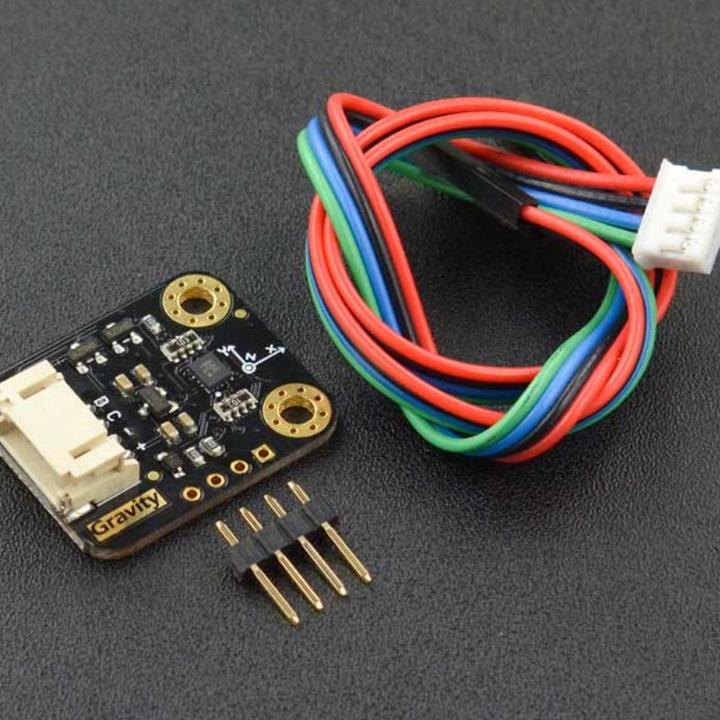

Package contents:

• 1x Gravity I2C BMI160 6-axis motion sensor with gyroscope
• 1x Gravity IIC/UART sensor cable
• 1x 1x4Pin header.
