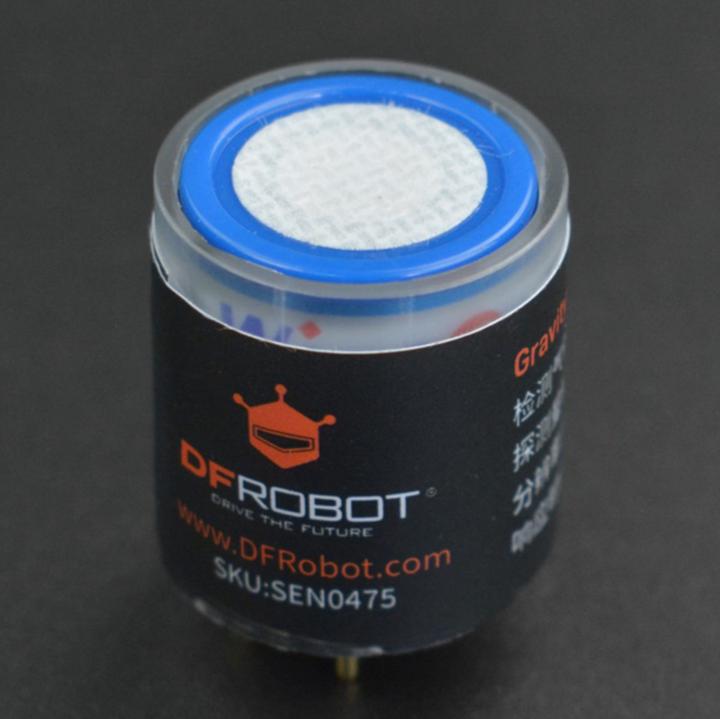

DFRobot Gravity HF hydrogen fluoride sensor I2C and UART

The Gravity HF Hydrogen Fluoride Sensor from DFRobot is an advanced, factory-calibrated sensor designed for the precise measurement of hydrogen fluoride (HF) in the air. With a measurement range of 0 to 10 ppm and support for analog, I2C, and UART output modes, this sensor provides a comprehensive solution for a variety of applications, from industrial monitoring to environmental protection projects. The electrochemical measurement method ensures high accuracy, stability, and excellent resistance to interference. An integrated temperature compensation feature and an alarm function for threshold values further enhance the sensor's reliability. Thanks to its compatibility with common microcontrollers such as Arduino, ESP32, and Raspberry Pi, the sensor can be easily integrated into existing systems.

Features:

• High accuracy and sensitivity in HF detection.
• Supports analog, I2C, and UART output modes.
• Robust design with a lifespan of over two years.
• Strong anti-interference capability due to the electrochemical measurement principle.
• Compatible with Arduino, ESP32, and Raspberry Pi.

Application Examples:

• Monitoring hydrogen fluoride concentrations in the semiconductor industry.
• Use in the chemical industry for monitoring production processes.
• Environmental monitoring for detecting HF emissions.
• Integration into safety systems for early detection of hazardous gases.

Technical Specifications:

• Detection Gas: Hydrogen Fluoride (HF)
• Measurement Range: 0~10 ppm
• Operating Voltage: 3.3–5.5 V DC
• Operating Current: <5 mA
• Output Signal: I2C, UART (0~3 V), analog voltage
• Operating Temperature: -20–50 °C
• Operating Humidity: 15–90 % RH (non-condensing)
• Lifespan: >2 years (in air)
• Compatibility: Arduino, ESP32, Raspberry Pi
• Dimensions: 37 x 32 x 30 mm
• Weight: 81.9 g

Delivery Includes:

• 1x Gravity HF Hydrogen Fluoride Sensor I2C and UART
• 1x Gravity IIC/UART Sensor Cable.
