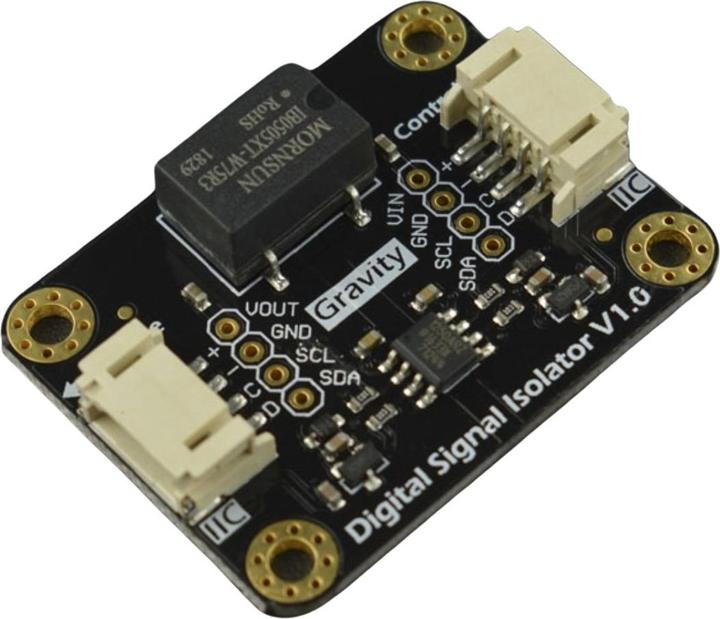

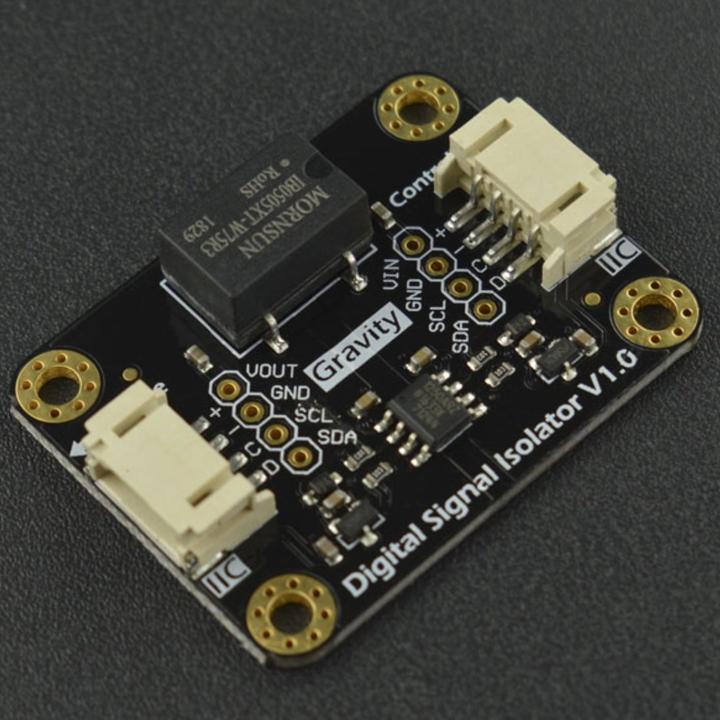

DFRobot Gravity Digital I2C Signal Isolator Optocoupler

The Gravity: Digital I2C Signal Isolator can isolate the digital I2C signal and provide isolated power to the sensor module, preventing mutual interference between the sensor modules. It can be used for multiparameter water quality detection systems to avoid mutual interference of water quality sensors. The product is plug-and-play, requires no soldering, and the code of the sensor module on the control board does not need to be changed. It is specifically designed for DFRobot I2C connection sensors or modules and can provide electrical isolation to ensure stable operation of the sensor modules.

Features:

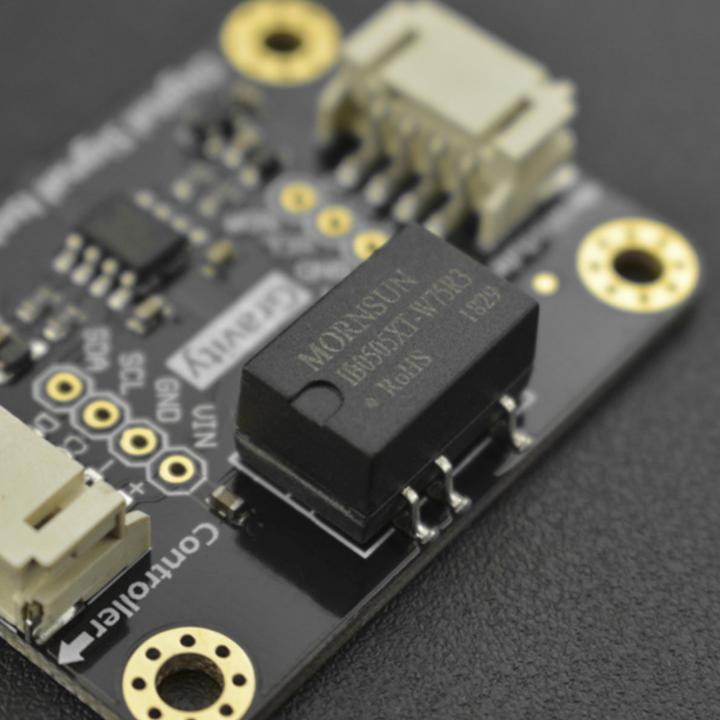

Integrated 5V 0.75W isolation power chip, no additional power supply required, simple and convenient.
Nearly compatible with all DFRobot I2C connection sensors or modules, plug and play, no soldering.

Technical Details:
Manufacturer: DFRobot
Manufacturer SKU: DFR0565
Operating Voltage: 5.0V
Connector Type: PH2.0-4P
Interface Protocol: I2C
Interface Signal Level: High 3.3V, Low 0V
Controller Side (Non-Isolation Side) Supply Voltage: 5.0 ± 0.15V
Controller Side (Non-Isolation Side) Quiescent Current: 15mA (TYP)
Module Side (Isolation Side) Output Voltage: 5.0 ± 0.15V
Module Side (Isolation Side) Output Current: 150mA (MAX)
Dimensions: 42 x 32 x 8.8mm
Weight: 22g

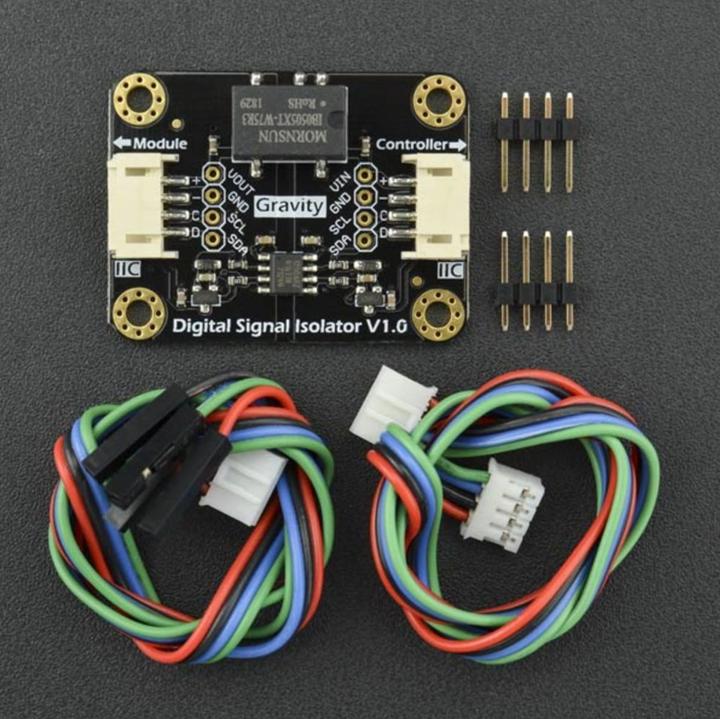

Package Includes:
1x Gravity: Digital I2C Signal Isolator
1x Double PH2.0-4P Cable
1x 30cm Gravity 4pin I2C/UART Sensor Cable PH2.0 to XH2.54
2x XH2.54-4Pin Pin Headers.
