DFRobot Gravity Digital HX711 Load Cell 1Kg Weight Sensor Kit

The Arduino electronic weight sensor can detect a weight of 1 kg and is based on the HX711, a 24-bit analogue-to-digital converter for scales and industrial control applications. It uses the DFRobot Gravity Interface for easy connection, making it a good choice for electronics enthusiasts who want to build small scales for the home.

Features:

• Active low noise on-chip PGA with selectable gain of 32, 64, and 128.
• On-chip power supply regulator for analogue load cell and ADC supply.
• On-chip oscillator requiring no external components, with optional external crystal.
• On-chip power-on-reset.
• Simple digital control and serial interface: pin-driven control, no programming required.
• 16-pin SOP-16 package.

Technical details:
Manufacturer: DFRobot
Manufacturer's SKU: SEN0160
24-bit analogue-to-digital converter for scales (HX711):

• Input channels: Two selectable differential channels
• Output data rate: 10 SPS or 80 SPS (Selectable)
• Supply suppression: 50- and 60-Hz (Simultaneous)
• Supply voltage: 2.6V to 5.5V
• Current: <1.6 mA
• Operating temperature: -40 to 85°C

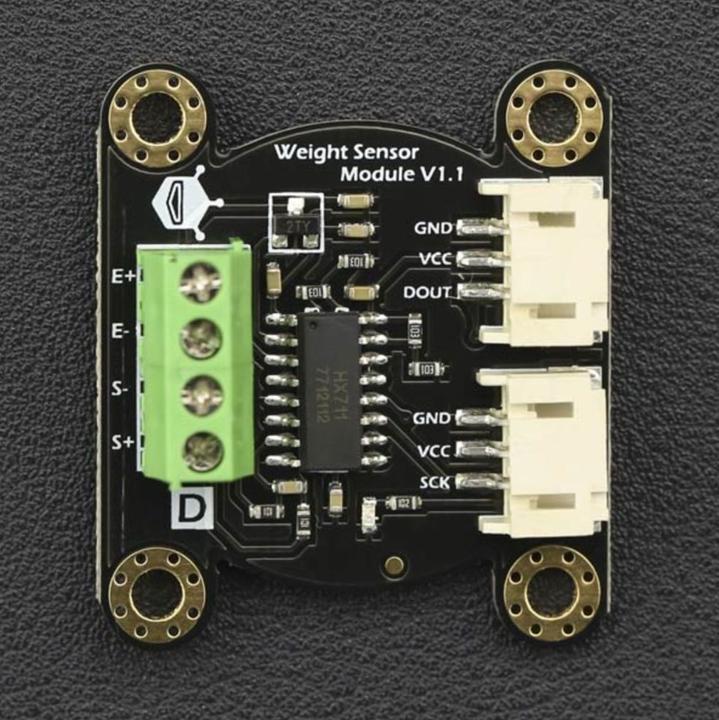

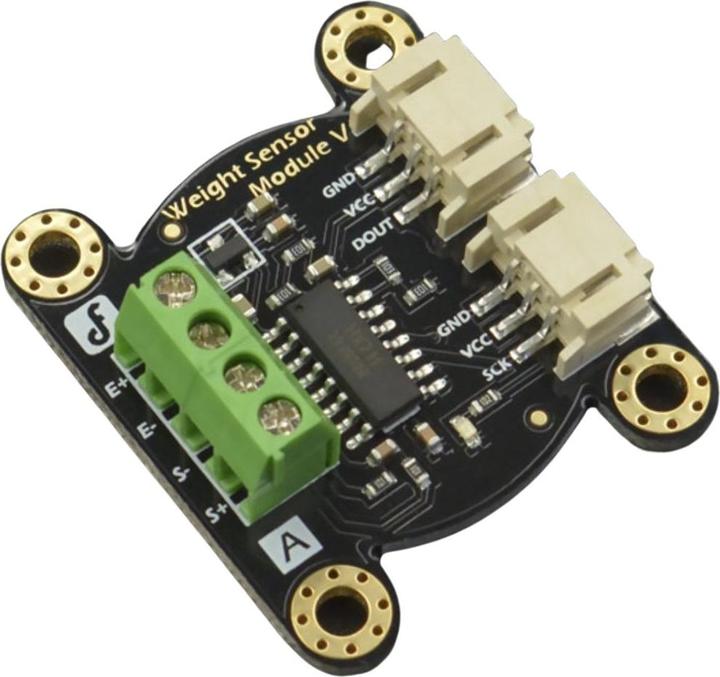

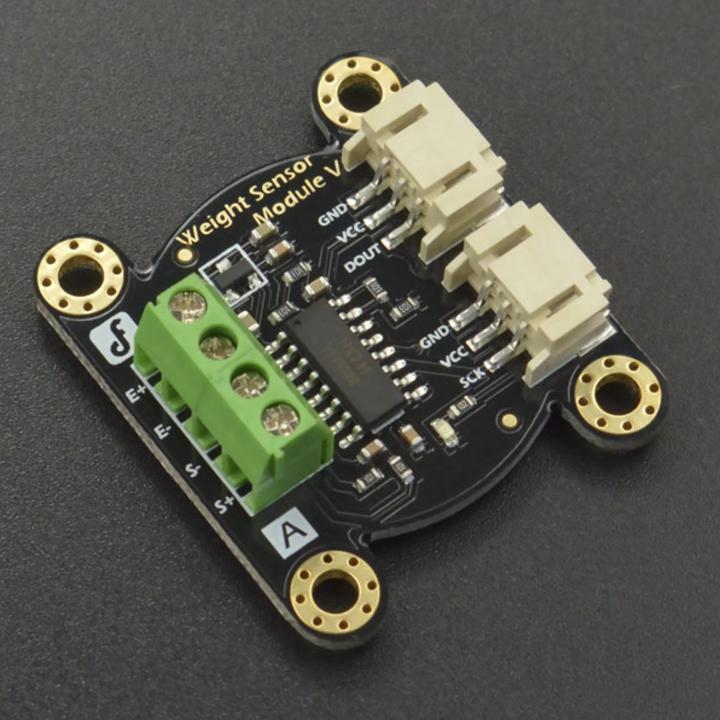

Weight sensor module:

• Range: 1 kg
• Excitation voltage: 5-15V
• Output sensitivity: 1.0±0.15 mV/V
• Synthetic error: 1 per mil of final value
• Zero offset: 0.05/0.03 (30 min) percent of full scale
• Zero offset at temperature: 0.05/0.03 percent of full scale per 10°C
• Zero output: ±0.1 mV/V
• Input impedance: 1055±15 Ω
• Output impedance: 1000±5 Ω
• Overload capability: 200 percent of full scale
• Output: Analogue output
• Board dimensions: 33 x 38 x 12 mm
• Weight: 53 g

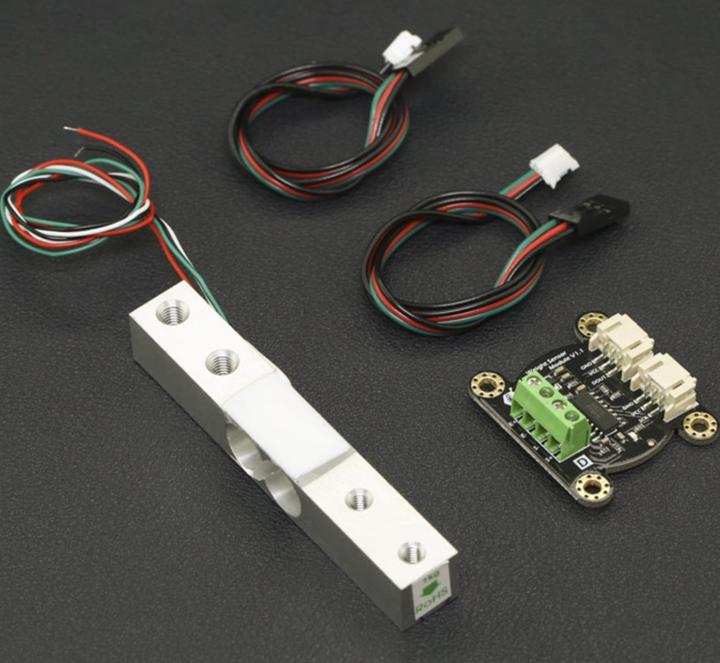

Scope of delivery:

• 1x Gravity Digital HX711 Load Cell 1 kg Weight Sensor Kit

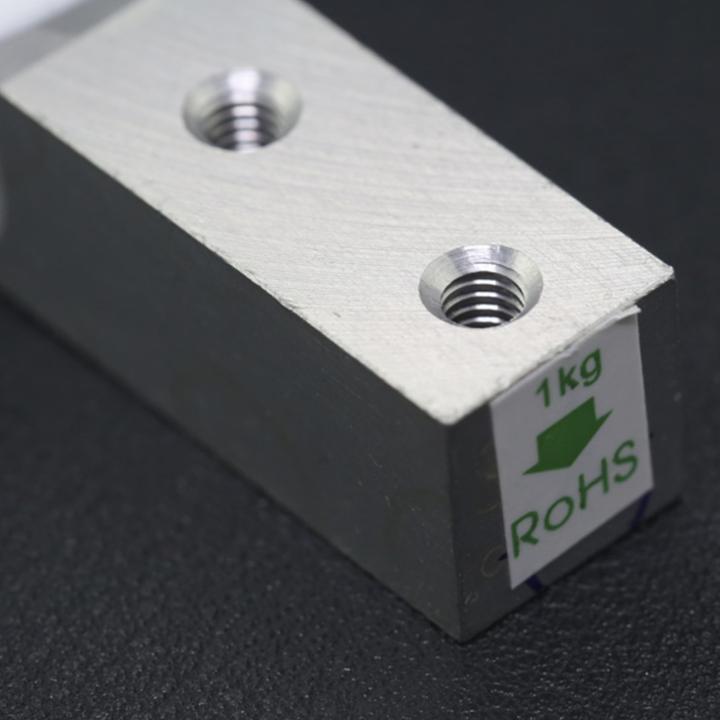

• 1x weight sensor 1 kg
• 2x sensor cable.
