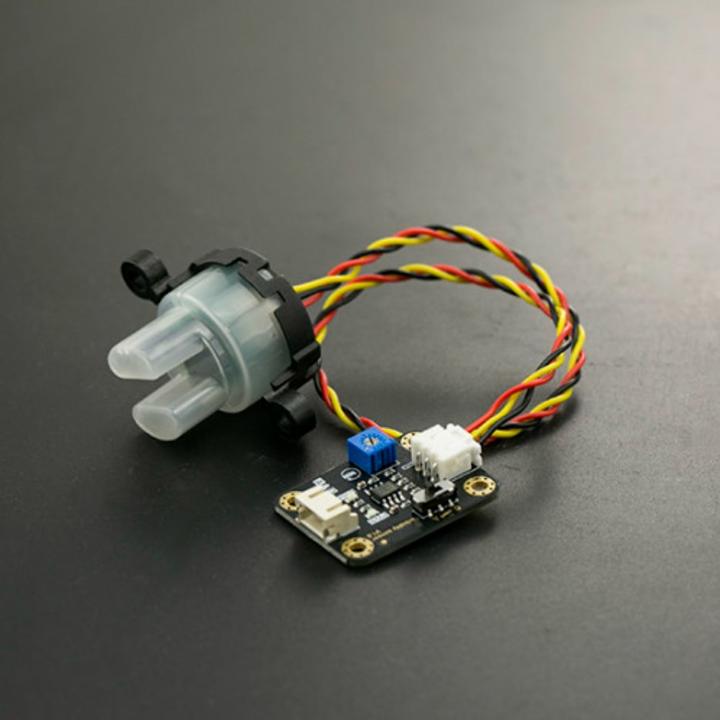

DFRobot Gravity Analogue Turbidity Sensor

The analog turbidity sensor for Arduino detects water quality by measuring the turbidity level, which changes with the amount of suspended particles in the water. The higher the TTS value, the greater the turbidity of the liquid. The sensor features both analog and digital signal output modes, with the threshold in digital signal mode being adjustable. Turbidity sensors are used for measuring water quality in rivers and streams, wastewater and sewage measurements, sediment transport research, and laboratory measurements.

Technical Details:
Manufacturer: DFRobot
Manufacturer SKU: SEN0189
Operating Voltage: 5V DC
Operating Current: 40mA (max)
Response Time: <500ms
Isolation Resistance: 100M (min)
Output Method: Analog & digital
Analog Output: 0-4.5V
Digital Output: High/Low level signal (threshold can be adjusted using the potentiometer)
Operating Temperature: 5-90°C
Storage Temperature: -10-90°C
Dimensions: 38 x 28 x 10mm
Weight: 27g

Package Includes:

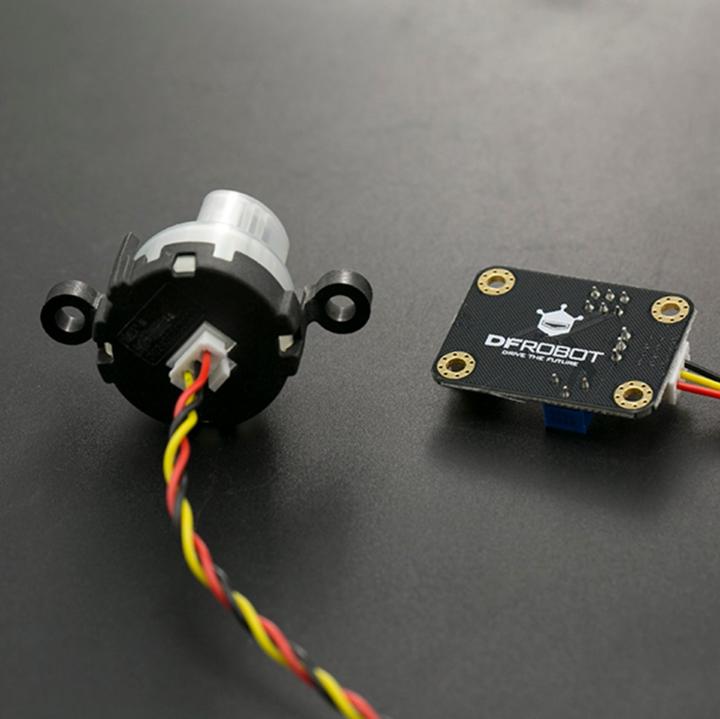

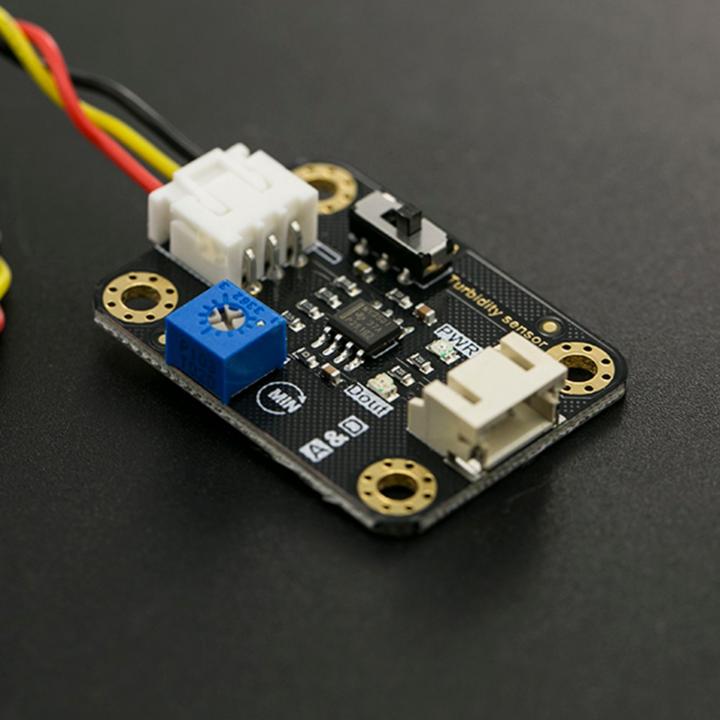

1x Turbidity sensor adapter board

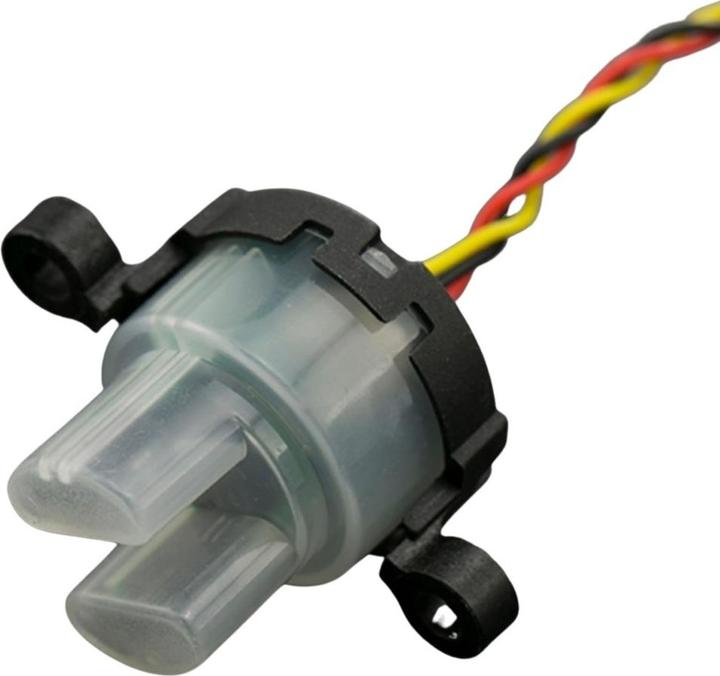

1x Turbidity sensor probe
1x Connection cable for turbidity sensor
1x 30cm Gravity 3-pin Analog Sensor Cable PH2.0 to XH2.54.
