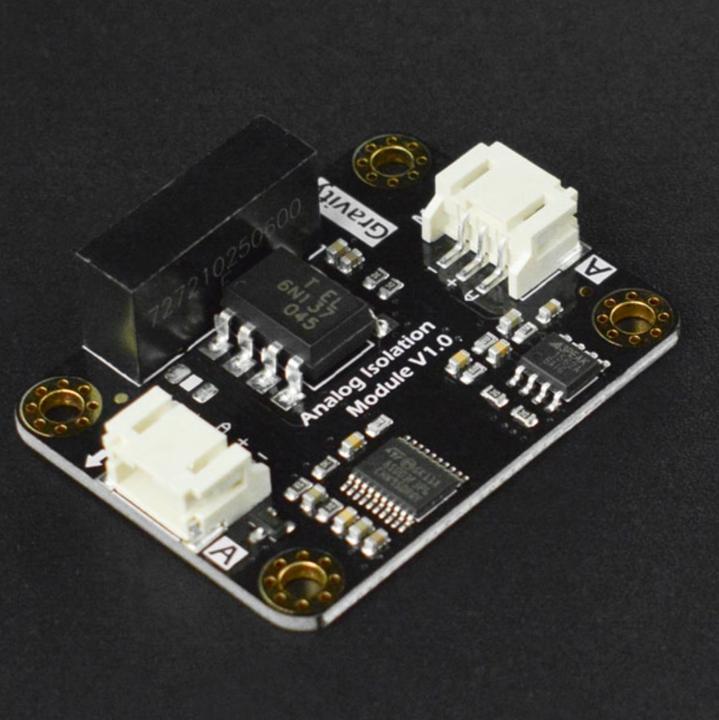

DFRobot Gravity Analogue Signal Isolator Optocoupler

Ratings
BrandMore from DFRobot
Delivered between Tue, 16.12. and Wed, 17.12.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

To ensure that sensors such as pH sensors and conductivity sensors provide correct measurements, it is important that they are electrically isolated. The Gravity: Analogue Signal Isolator can prevent interference between sensors and has an integrated isolation voltage. This allows for easy plug-and-play without soldering and minimises the impact on the readings of the connected sensors. The Gravity: Analogue Signal Isolator is useful in multi-parameter water quality monitoring systems that need to prevent interference between water sensors. The product is compatible with most DFRobot analogue sensors and meets various requirements in situations that require electrical isolation.

Technical details:
Manufacturer: DFRobot
Manufacturer SKU: DFR0504
Operating voltage: 5.0 V
Response time: 4 seconds (type)
Analogue error between two connections: <± 20mV (typical)
Connector type: PH2.0-3P
No-load current: 75mA
Non-isolated terminal (MCU terminal) Supply voltage: 5.0 ± 0.1V
Non-isolated terminal (MCU terminal) Analogue output: 0~5.0V
Insulated terminal (SEN terminal) Output voltage: 5.0 ± 0.2V
Insulated terminal (SEN terminal) Analogue input: 0~5.0V

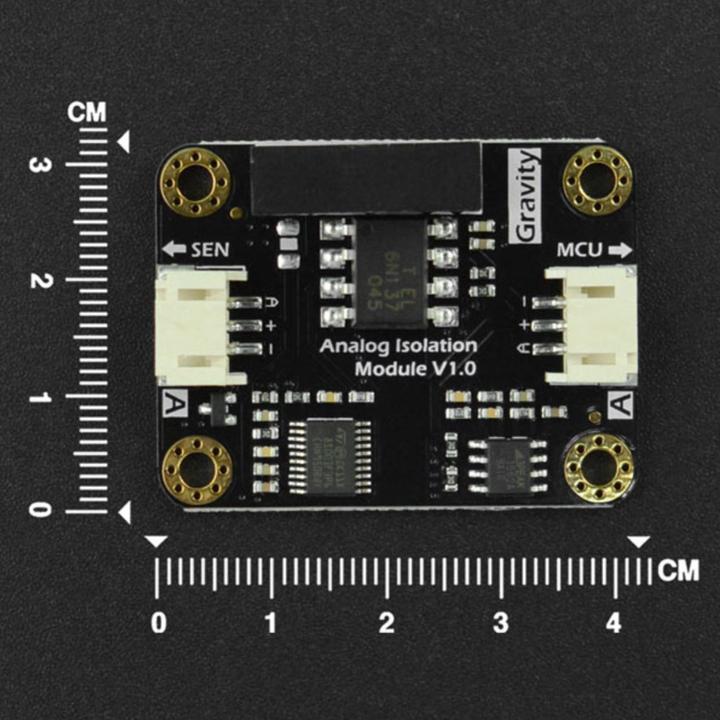

Dimensions: 42 x 32 x 12mm
Weight: 17g

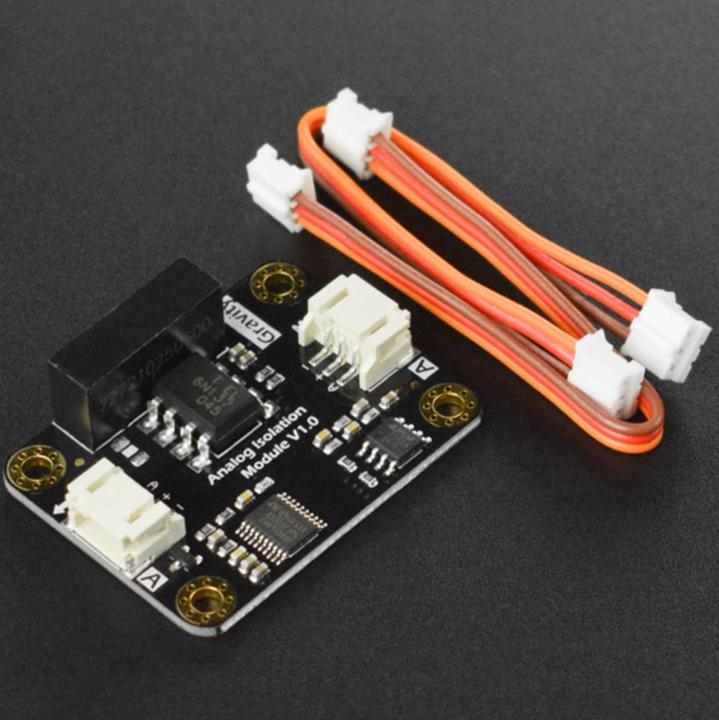

Scope of delivery:
1x Gravity Analogue Signal Isolator Optocoupler.
2x PH2.0-3P cable.

Key specifications

Item number
33011382

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
16.5.2023

Power supply

Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x Gravity analogue signal isolator optocoupler, 2x PH2.0-3P cable

Product dimensions

Weight
17 g

30-day right of return
24 Months Warranty (Bring-in)
