DFRobot Gravity 4G/LTE IoT communication module Air780EU CAT1

1Ratings
BrandMore from DFRobot
Delivered Mon, 6.4.
Only 4 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

The Gravity 4G/LTE IoT communication module Air780EU CAT1 from DFRobot is a powerful solution for IoT applications in Europe, the Middle East, Russia, Thailand, and Africa. It supports multiple LTE-FDD frequency bands, ensuring a reliable and fast network connection. With a maximum data rate of 10 Mbps in the downlink and 5 Mbps in the uplink, it is ideal for projects that require rapid data transmission. The module is equipped with a variety of network protocols that facilitate software development and allow for flexible integration into different systems. The easy connection to development platforms is supported by the USB-C interface and the UART interface, simplifying its use in various environments. Additionally, the module is energy-efficient and can be used both in mains operation and battery operation, making it a versatile choice for developers.

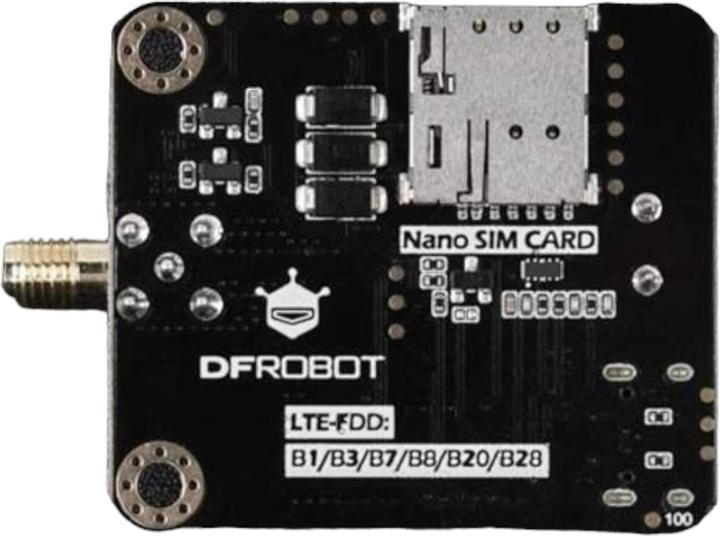

  • Supports LTE-FDD frequency bands B1/B3/B7/B8/B20/B28 for global connectivity
  • Maximum data rate of 10 Mbps in the downlink and 5 Mbps in the uplink for fast data transfers
  • Comprehensive support for network protocols such as TCP/UDP/PPP/HTTP/NTP/MQTT to simplify software development

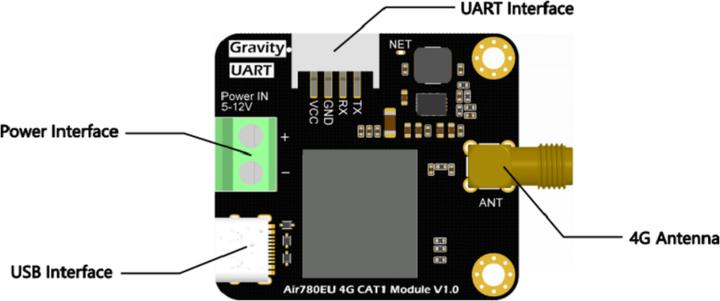

  • Easy connection to various platforms via USB-C and UART interface
  • Low power consumption enables battery-operated use.

Key specifications

Development board type
Board

General information

Item number
47375514
Manufacturer
DFRobot
Category
Single board computer kits
Release date
23.7.2024

Development board properties

Development board type
Board

Power supply

Power supply
Battery operated, Electrical connection
Operating voltage
12 V

Wireless transmission

Wireless transmission
4G (LTE)

Connections

USB ports
USB-C
Exact USB ports
USB-C 2.0 (1x)
Max. port speed
10 Mbit/s
Additional connections
F socket (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
95.84 kg
Climate contribution
CHF 2.–

Scope of delivery

Scope of delivery
1x 4G rod antenna, 1x Gravity 4G/LTE IoT communication module Air780EU CAT1, 1x UART PH2.0-4P connection cable

Product dimensions

Length
51 mm
Width
15 mm
Height
38 mm
Weight
33 g
