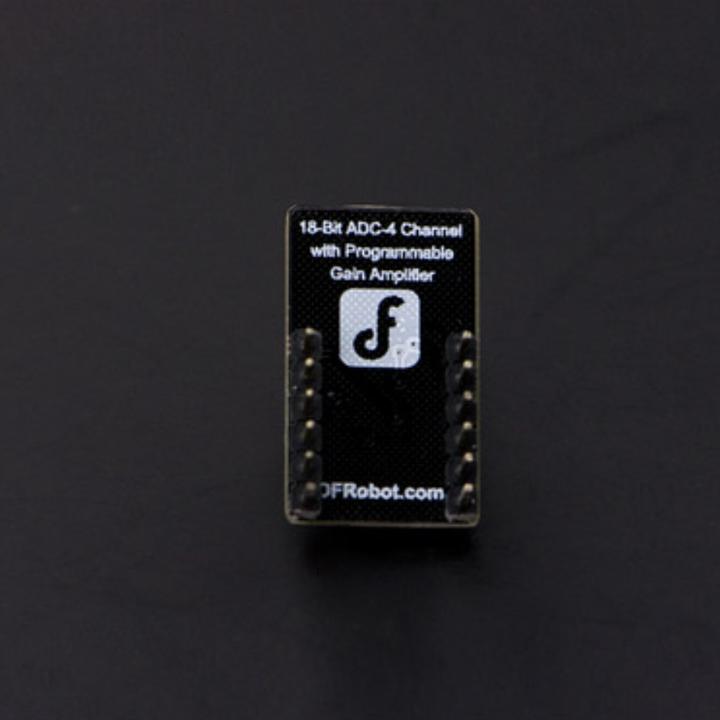

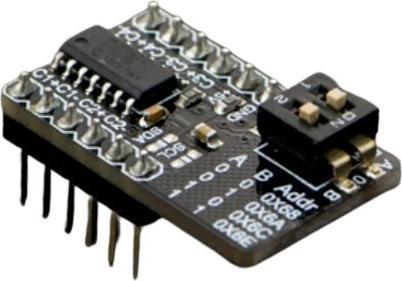

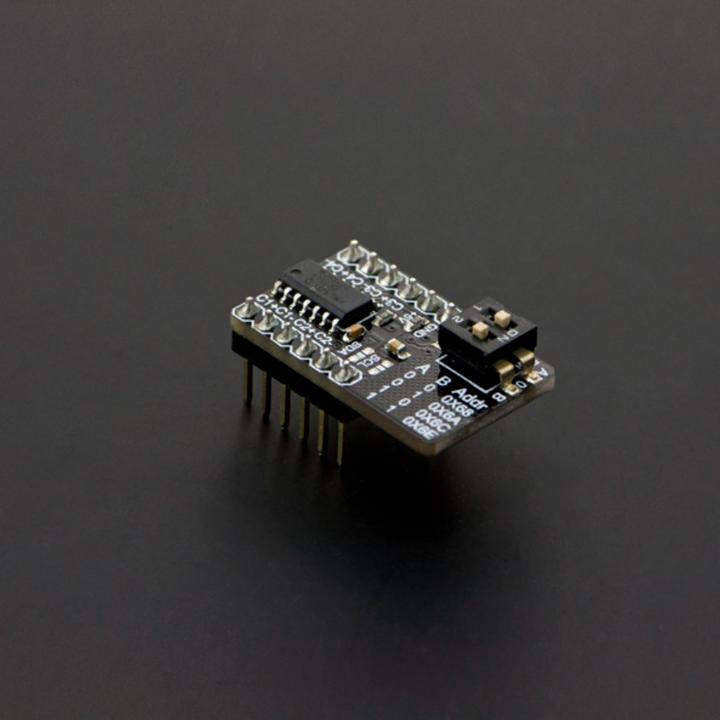

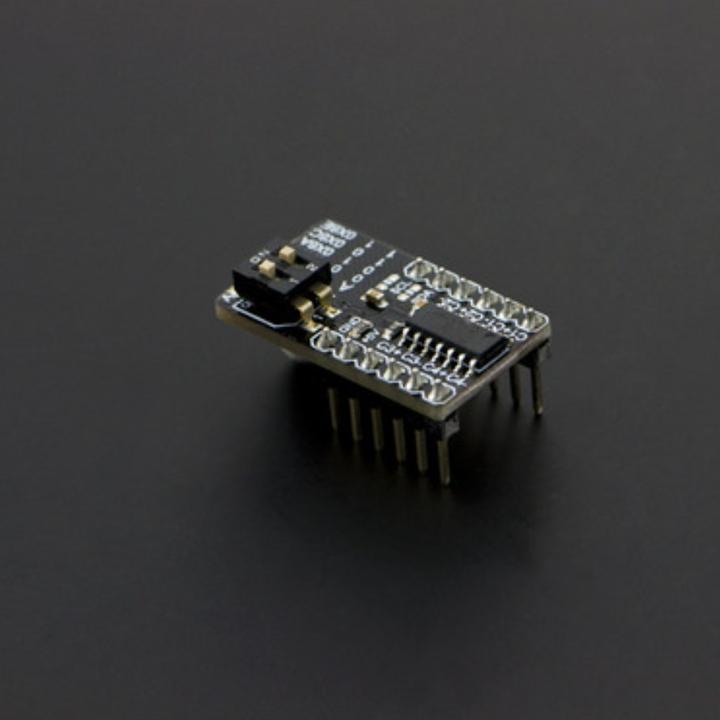

DFRobot Fermion MCP3424 18-bit 4-channel ADC

Ratings
Delivered between Tue, 3.6. and Wed, 4.6.
6 items in stock at third-party supplier
Supplied by

Product details

This is an ADC (audio-to-digital converter) with programmable gain amplifier. The built-in MCP3424 is an 18-bit delta-sigma analogue to digital converter. The user can set the PGA gain before conversion. This allows the module to convert weak input signals with high resolution. The ADC can be powered from 2.7 to 5.5V, making it very interesting to use with a Raspberry Pi or 3.3V microcontroller.

The ADC MCP3424 has two modes:
One-Shot Mode: the module performs a single conversion and automatically enters standby mode until it receives another conversion command.
Continuous Mode: Conversion takes place continuously at the set speed.

Features:
18-bit
4-channel
Programmable PGA gain
Two modes for power saving use
Four different I2C addresses easily switchable via slide switch

Technical Details:
Manufacturer: DFRobot
Manufacturer SKU: DFR0316
Chip: MCP3424
Working voltage: 2.7-5.5V
Standby current: 300nA
Programmable gain amplifier: x1,x2,x4,x8
Programmable resolution: 12,14,16,18-bit
Input interface: 4-channel, pin header
Interface: I2C
Operating temperature: -40°C to 125°C

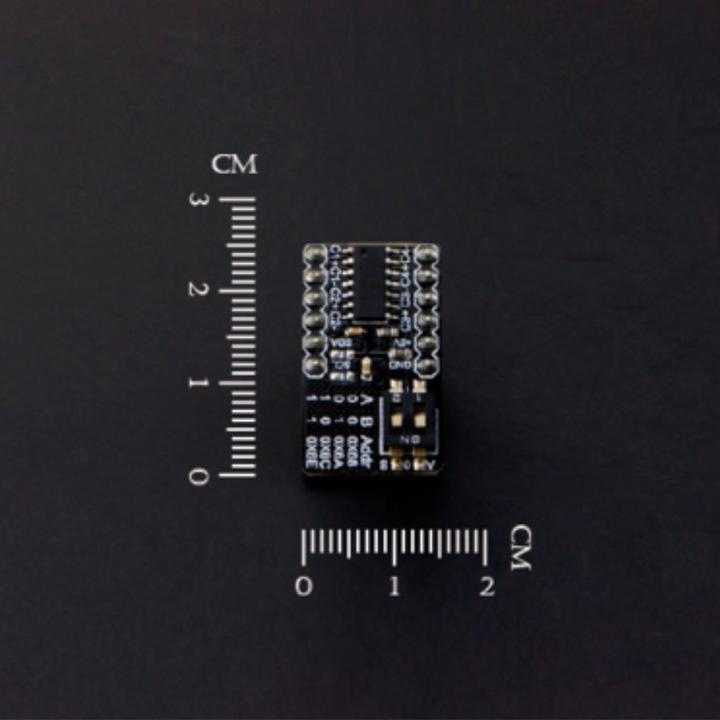

Dimension: 27 x 16 x 12mm
Weight: 8.6g

Scope of delivery:
1x Fermion MCP3424 18-bit 4-channel ADC.

Key specifications

Item number
24936683

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
30.3.2023

Connections

Number of I/O
4

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x Fermion MCP3424 18-bit 4-channel ADC

Product dimensions

Length
27 mm
Width
16 mm
Height
12 mm
Weight
8.60 g
