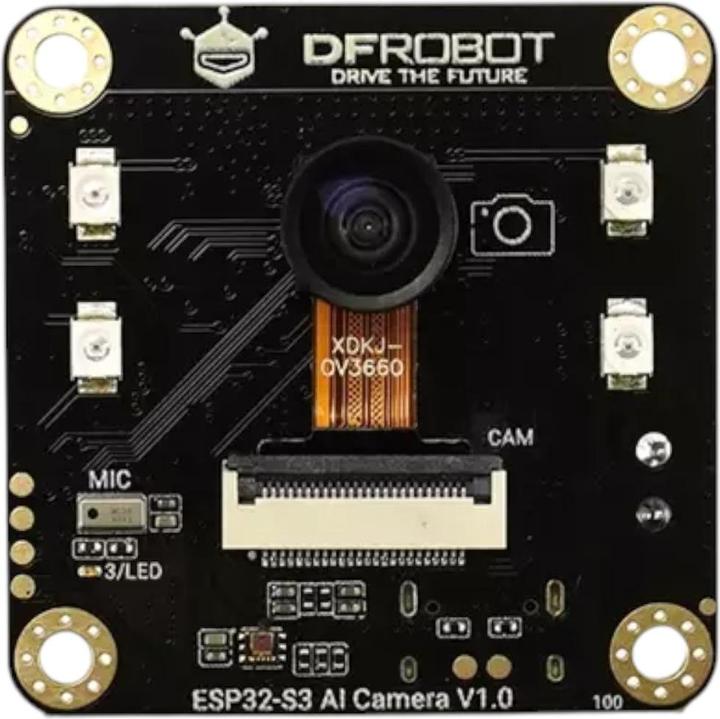

DFRobot ESP32-S3 AI CAM Development Board Kamera mit Nachtsicht

This compact and powerful camera module offers a combination of artificial intelligence, night vision capability, and voice interaction. It is based on the ESP32-S3 chip, specifically designed for edge computing applications. With the integrated wide-angle infrared camera, you can capture clear images even in complete darkness. The module is perfect for smart door viewers, surveillance systems, toy robots, or smart glasses. Support for Edge Impulse, YOLO, and OpenCV allows for easy implementation of image recognition, object tracking, or classification. Voice interaction is facilitated by a built-in microphone and speaker, and it can even be combined with ChatGPT. You can execute voice commands directly—completely offline if desired. Additionally, the module supports both Wi-Fi and BLE 5, enabling seamless live streaming or control via your smartphone. Whether you want to automate smart devices, build new IoT solutions, or simply implement exciting AI projects—this AI-CAM provides you with the right tool.

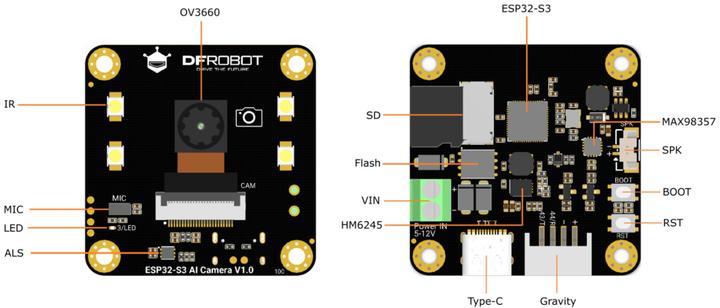

Technical Specifications:
Manufacturer: DFRobot
Manufacturer SKU: DFR1154
Camera Sensor: OV3660
Resolution: 2 MP
Field of View: 160°
Infrared Sensitivity: visible light and 940 nm
Focal Length: 0.95
Aperture: F/2.0 ±5%
Infrared Lighting: IR LED controlled via IO47
Light Sensor: LTR-308 Ambient Light Sensor
Microphone: I2S PDM Microphone
LED: Onboard LED on IO3
Main Chip: ESP32-S3R8
Flash Memory: 16MB
Memory Card Slot: microSD
Voltage Regulator: HM6245 Power Chip
Speaker Interface: MX1.25-2P
Audio Amplifier: MAX98357 I2S Amplifier Chip
Operating Voltage: 3.3V
Input Voltage USB-C: 5V DC
Input Voltage VIN: 5–12V DC
Operating Temperature: -10 to 60°C
Dimensions: 42 × 42 x 22 mm
Weight: 26 g.
