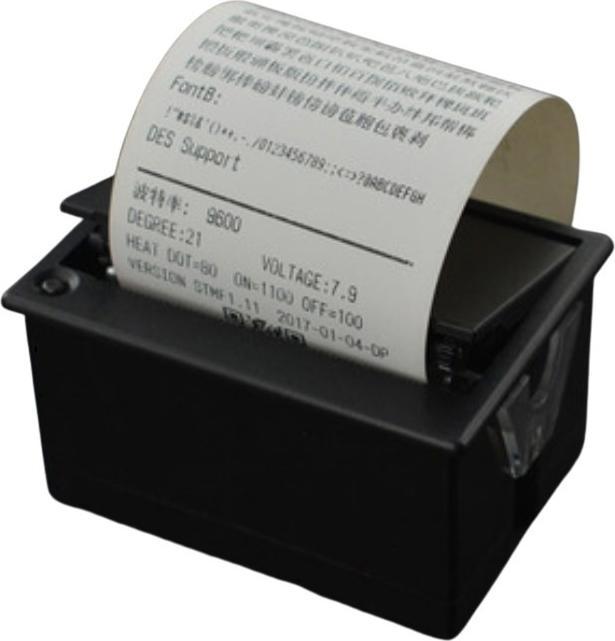

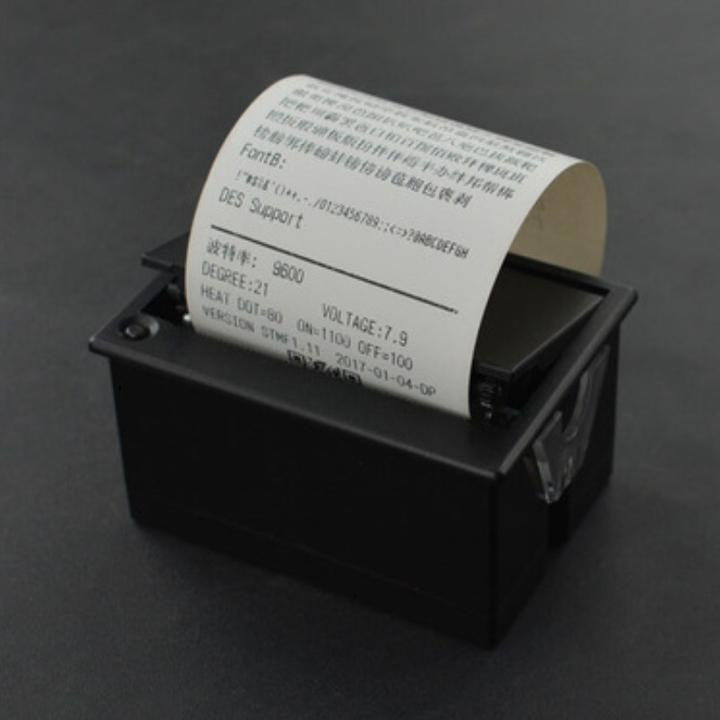

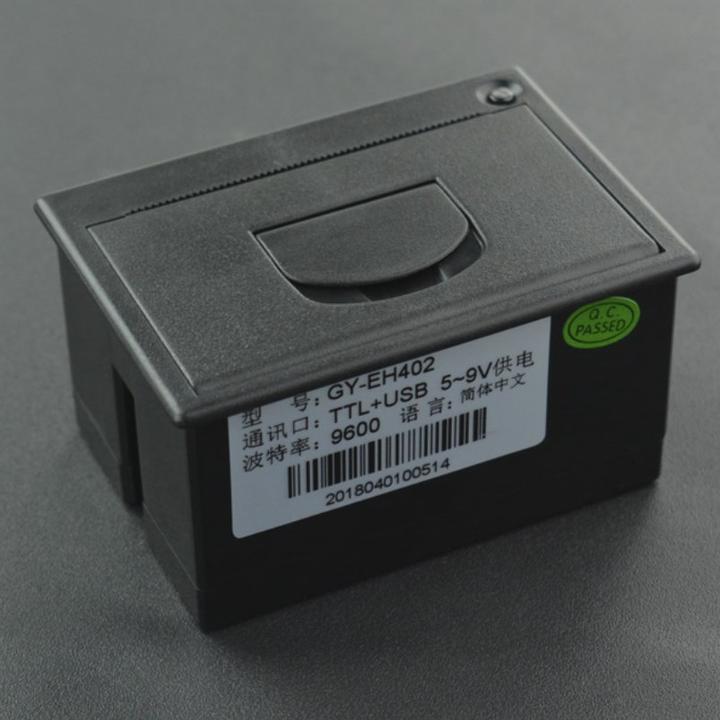

DFRobot Embedded Thermal Printer TTL Serial

This is a compact thermal printer from DFRobot. The advantage of the thermal printer is that it does not need to be refilled with toner or ink, but can continue to print continuously. The printer is controlled via a mini-USB port or a RS232/TTL serial interface, and supplied with 5V-9V via a PH 2.0 connector. The printer comes with a 58mm paper roll and is perfect for printing sales slips, QR codes or measurement details. With an Arduino or Raspberry Pi, a Gravity Expansion Board and sensors, you can build compact, integrated systems such as measurement systems that print their data periodically or a DIY receipt printer.

Info: The higher the voltage of 5V-9V, the clearer the print. Normal working current is about 0.8A-1.5A. However, if the printer is used in a particularly cold environment, the printer can draw up to 2A. The USB interface supports Windows, but a driver must be installed first. For more information, see the documentation.

Features:
Thermal printer
Mini-USB interface, WIndows compatible
RS232/TTL serial interface for Arduino, Raspberry Pi
Lifetime of 50Km print length
Input voltage from 5V-9V

Technical Details:
Manufacturer: DFRobot
Manufacturer SKU: DFR0503-EN
Input voltage: 5V-9V DC (9V Recommended)
Working current: 0.8A - 1.5A (up to 2A in cold conditions)
Interface: Mini.USB, TTL
Print colour: Monochrome
Resolution: 203DPI
Paper roll: 57mm wide, 30mm diameter
Effective print width: 48mm
Lifetime: 50Km
Print speed: 60mm/s
Working temperature: -20°C - 50°C
Print character: 1224 standard ASCII, 2424 inernational first and second level font
Print order: ESC/POS compatible
Dimension with seat: 82 x 58 x 44mm
Dimension without seat: 77 x 53 x 42mm
Weight: 134g

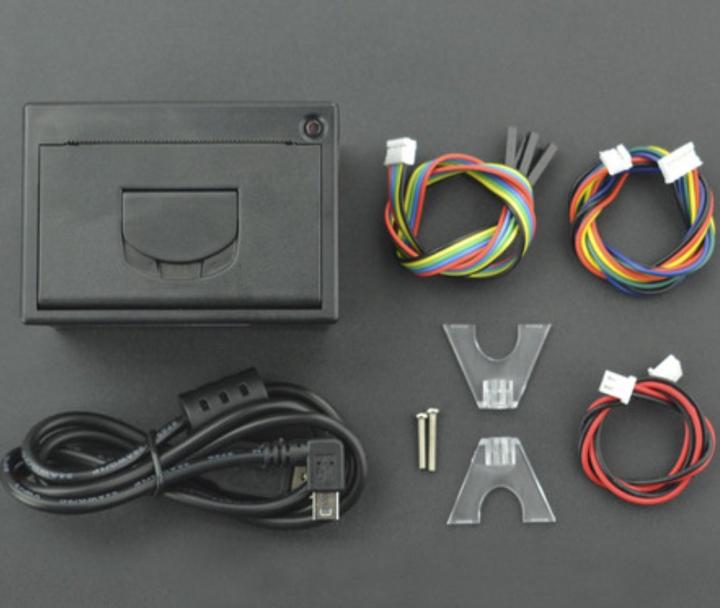

Scope of delivery:
1x DFRobot Embedded Thermal Printer
1x Mini-USB to USB-A cable 120cm
1x PH2.0 to PH2.0 power cable 30cm
1x 5pin TTL cable 30cm
1x 5pin to DuPont cable 30cm
2x positioning bracket
2x positioning screw.
