DFRobot EC11 Rotary Encoder Module

1Ratings
BrandMore from DFRobot
Delivered tomorrow
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

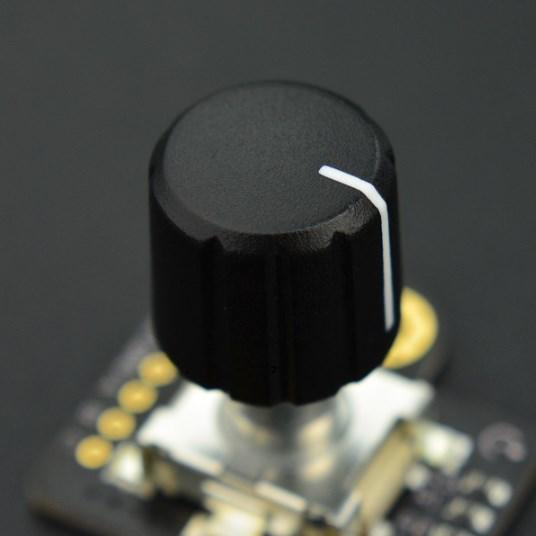

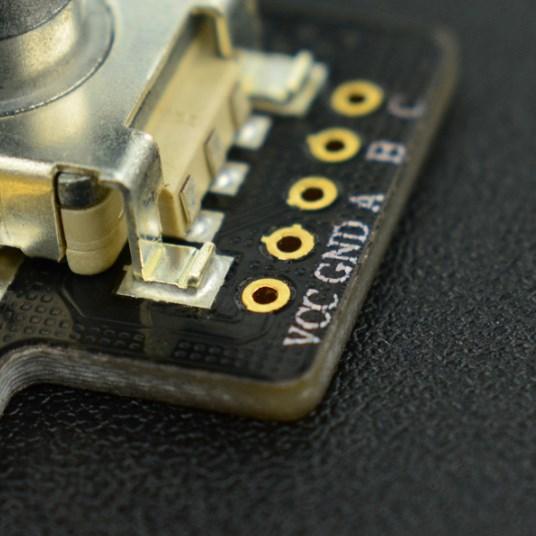

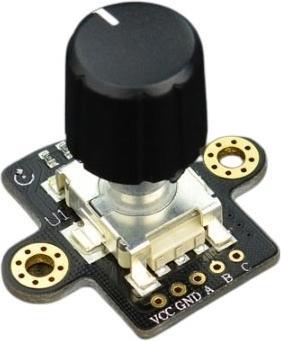

The EC11 encoder from DFRobot is a 360 degree rotary encoder that can be rotated endlessly. The module has three signal terminals: Terminals A and B are encoder outputs, terminal C is the push button signal output when the rotary knob is pressed. This module is perfect for navigating menus, for example. It can also be super used to control and move motors, similar to a handwheel on CNC machines.

Technical details:
Operating voltage: 3.4V to 5V
Full rotation angle: 360 degrees (no stop)
Number of pulses: 15
Lifetime: 30000 ± 200cycles
Contact resistance: ? 100m?
Insulation resistance: 100M? or more
Operating temperature: -30°C to +80°C
Module size: 33.8 x 22.4 x 27.8mm
Weight: 14g

Scope of delivery:

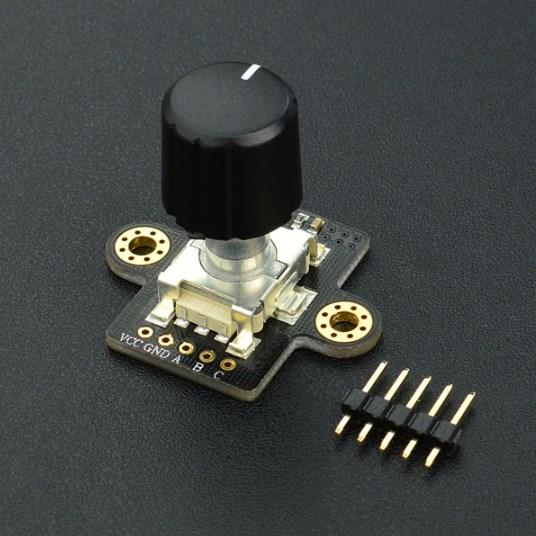

1x EC11 Rotary Encoder Module (Including rotary knob).

1x pin header 1x5 pin.

Key specifications

Item number
24861689

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
23.3.2023
Sales rank in Category Development boards + Kits
209 of 2711

Power supply

Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x EC11 Rotary Encoder Module (rotary knob included), 1x pin header 1x5 pin

Product dimensions

Weight
14 g
