Product details

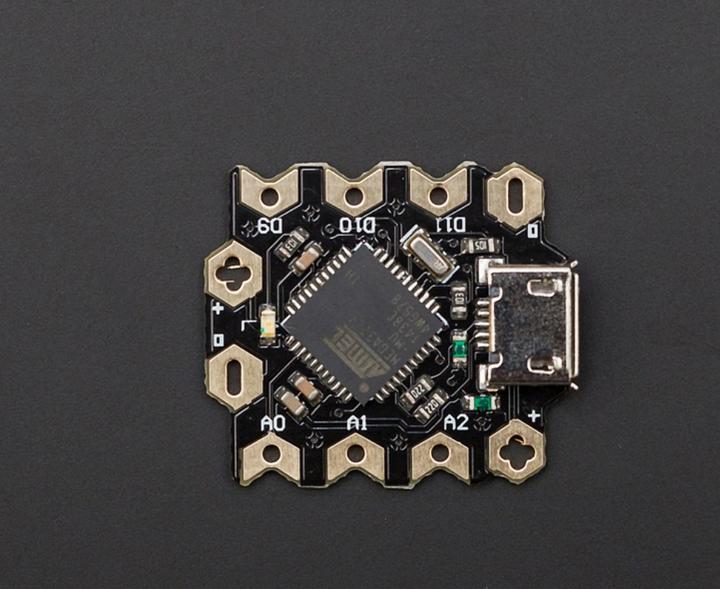

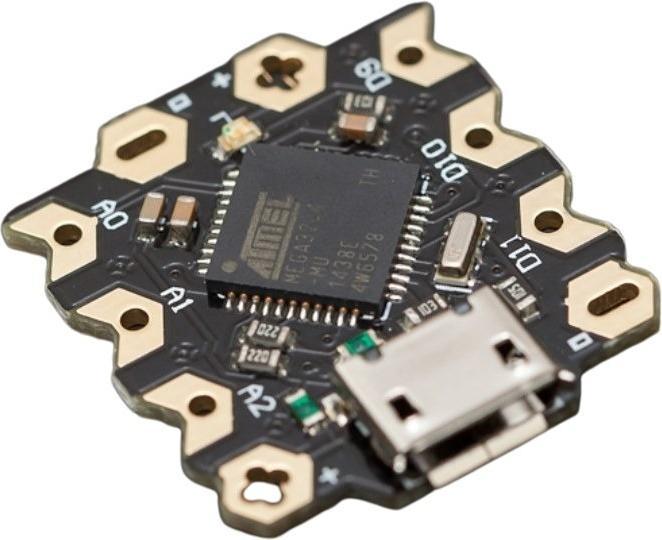

Beetle is an extremely small Arduino Leonardo board. The Beetle board from DFRobot comes with an Atmel AtMega32u4 running at 16MHz. To program the board, simply connect a micro USB cable to the board and your PC, and upload programs to the microcontroller using the Arduino software. When programming with the Arduino software, you need to select the "Arduino Leonardo" board (Tools > Board > Arduino Leonardo). The built-in ATmega32U4 comes with a bootloader that allows you to upload any code applicable to Arduino Leonardo.

Features:
Compact size of only 20 mm x 22 mm
Direct downloading of programs and testing via micro USB
Large gold-plated IO ports allow for direct wire attachment; for example, it can be sewn onto clothing with conductive thread.

Technical Details:
Microcontroller: ATmega32u4
Clock Frequency: 16 MHz
Operating Voltage: 5V DC
Digital I/O Pins: 10
PWM Channels: 4
Analog Input Channels: 5
UART: 1
I2C: 1
Micro USB: 1
Power Connections: 2
Flash Memory: 32 KB, of which 4 KB is used by the bootloader
SRAM: 2.5 KB
EEPROM: 1 KB
Dimensions: 20 x 22 x 3.8 mm
Weight: 7.3 g

Included in the package:
1x Beetle.

Key specifications

Development board type
Board
Processor type
ATmega32u4
Clock speed
16 MHz
Item number
39325208

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
13.10.2023

Development board properties

Development board type
Board
Processor type
ATmega32u4
Clock speed
16 MHz
Flash memory
32 kB

Power supply

Operating voltage
5 V

Connections

Analogue outputs
10
Digital outputs
4
Digital inputs
5
Number of I/O
10

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x Beetle

Product dimensions

Length
3.80 mm
Width
22 mm
Height
20 mm
Weight
7.30 g
