DFRobot Beetle CM-32U4 Arduino Leonardo ATmega32U4

Ratings
BrandMore from DFRobot
Delivered between Tue, 24.6. and Wed, 25.6.
More than 10 items in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

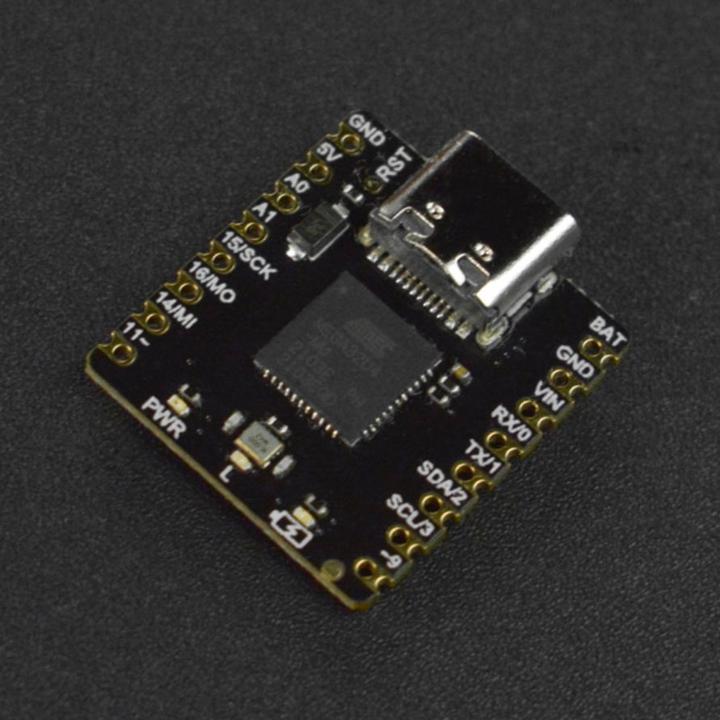

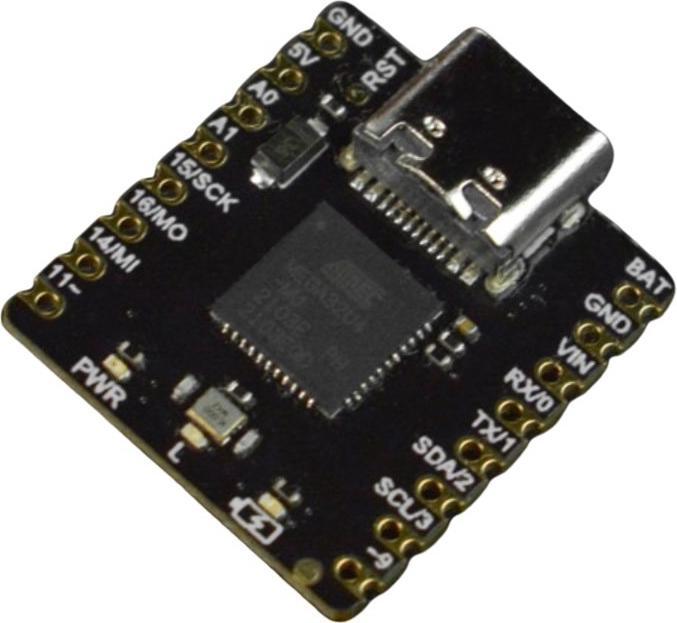

This is a compact Arduino Leonardo board from DFRobot with Lipo charging connector. The Beetle CM-32U4 has the most commonly used interfaces I2C, UART, SPI and Analogue + Digital IO pins. With dimensions of only 22 x 20.5mm, the Beetle CM-32U4 is particularly suitable for applications where a very compact size is required. The Beetle CM-32U4 supports a lithium battery, which can be connected directly via the pins on the board. In total, you can power the board in 3 ways. Via the USB-C port, Lipo battery via the BAT pin or with a 5V power source via the VIN pin.
The Beetle CM-32U4 supports the official Ardiuno Leonardo firmware. This means you can program it directly with Arduino IDE without any extra downloads.

Features:
USB-C
Compact size
I2C, UART, SPI and analogue/digital IO interfaces
5V output
Supports lithium battery
Supports official Arduino Leonardo firmware

Technical details:
Manufacturer: DFRobot
Manufacturer SKU: DFR0816
Voltage Vin: 4.5 to 6V DC
Current during charging: min 200mA max 600mA
Interface: 1x I2C, 1x SPI, 1x UART, 2x Analogue, 2x Digital
Output: 5V
Operating temperature: -40°C to 125°C

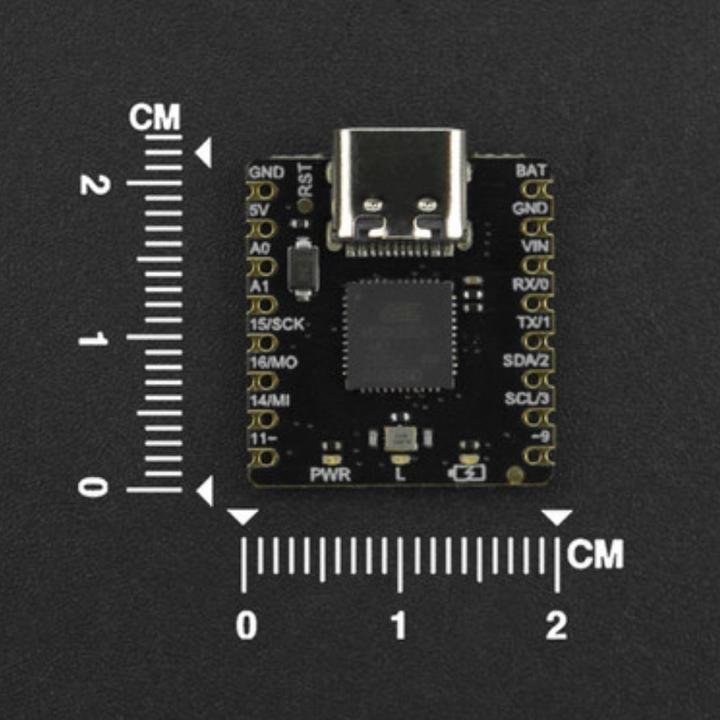

Dimensions: 22 x 20.5mm
Weight: 8.4g

Scope of delivery:
1x Beetle CM-32U4 Arduino Leonardo ATmega32U4.
2x 8pin header.

Key specifications

Development board type
Board
Processor type
ATmega32u4
Item number
24936673

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
30.3.2023

Development board properties

Development board type
Board
Processor type
ATmega32u4

Power supply

Operating voltage
6 V

Connections

Analogue outputs
2
Digital outputs
2
Digital inputs
1

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x Beetle CM-32U4 Arduino Leonardo ATmega32U4, 2x 8pin pin header

Product dimensions

Length
22 mm
Width
20.50 mm
Weight
8.40 g
