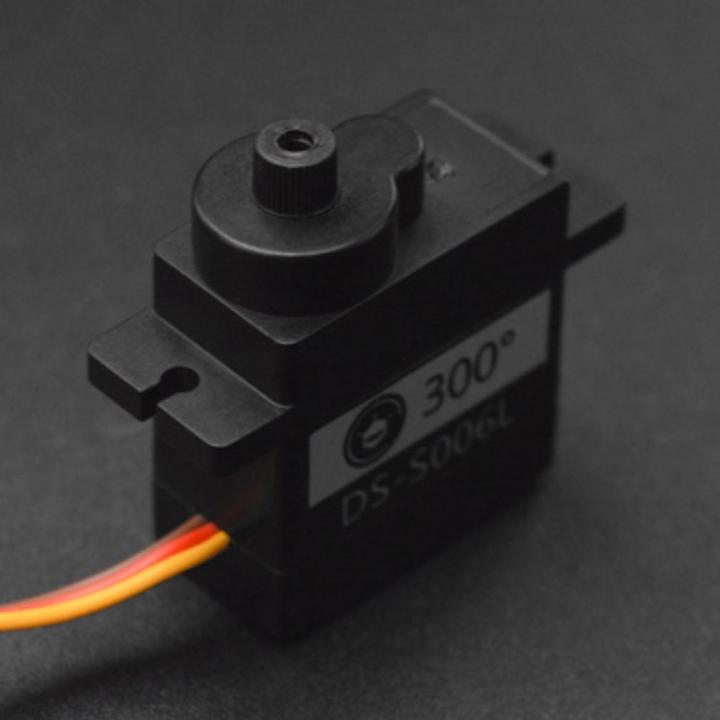

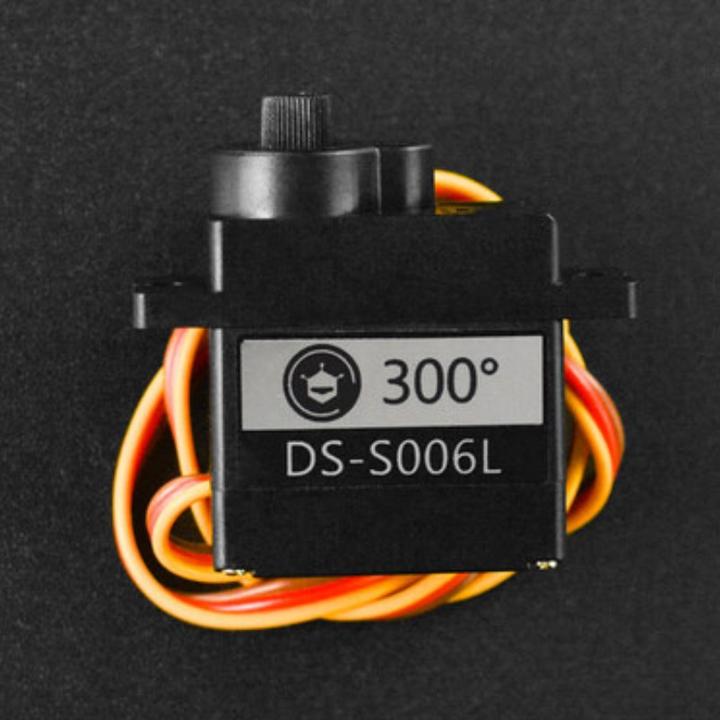

DFRobot 9g 300° servo with slipping clutch

In servos, it can happen that if the mechanical load exceeds the specification, it may lead to damage to the gearbox or overheating. With these special clutch servos featuring a clutch function and electronic protection, overload or damage can no longer occur. If the angle of a servo is altered by external forces during normal operation, the servo can automatically reset and continue to operate through the clutch function, preventing damage. The additional electronic protection turns off the blocked servo after 5 seconds to avoid overheating. This servo has a high torque, stable performance, precise running angle, and is easy to install. When operated at 6V, it achieves a stall torque of 1.2 kg/cm. There is no limited stop inside the servo, allowing it to rotate smoothly in 360 degrees (manual only). You can control the servo using the servo libraries from your Arduino IDE and drive it with a maximum rotation angle of 300 degrees within the pulse range of 500-2500 μsec.

Technical Details:
Operating Voltage: 4.8 to 6V DC
Type: DS-S006L
Communication: PWM
Operating Angle: 300°±10°
Pulse Width Range: 500 to 2500 μs
Static Current: ≤8 mA at 6.0V
Idle Current: ≤50 mA at 4.8V ≤60 mA at 6.0V
Stall Current: ≤550 mA at 4.8V ≤650 mA at 6.0V
Rated Torque: ≥0.32 kg cm at 4.8V ≥0.4 kg cm at 6.0V
Stall Torque: ≥1 kg cm at 4.8V ≥1.2 kg cm at 6.0V
Dimensions: 32.5 x 12 x 27.3 mm
Weight: 15 g

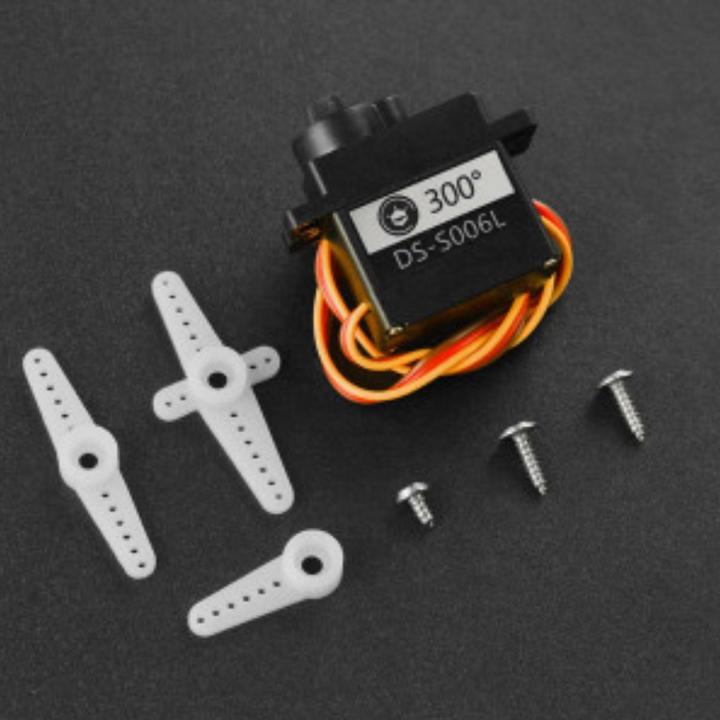

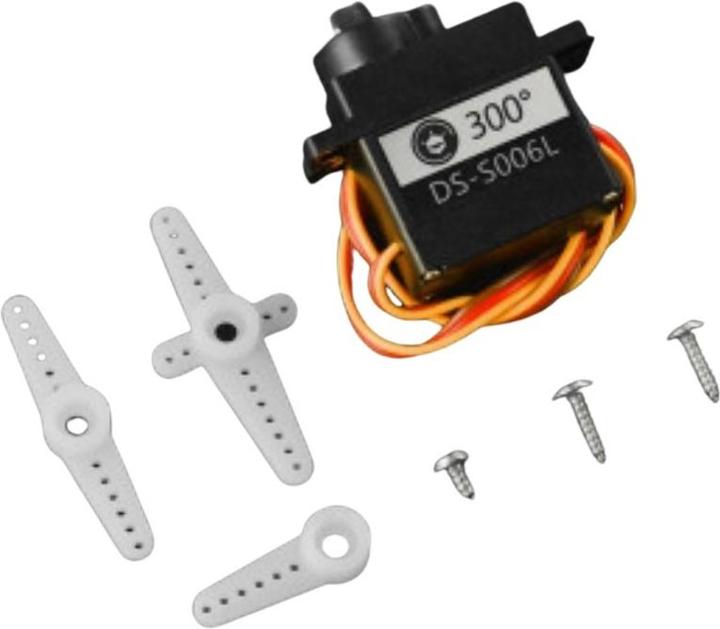

Included in the package:
1x 9g 300° servo with slip clutch

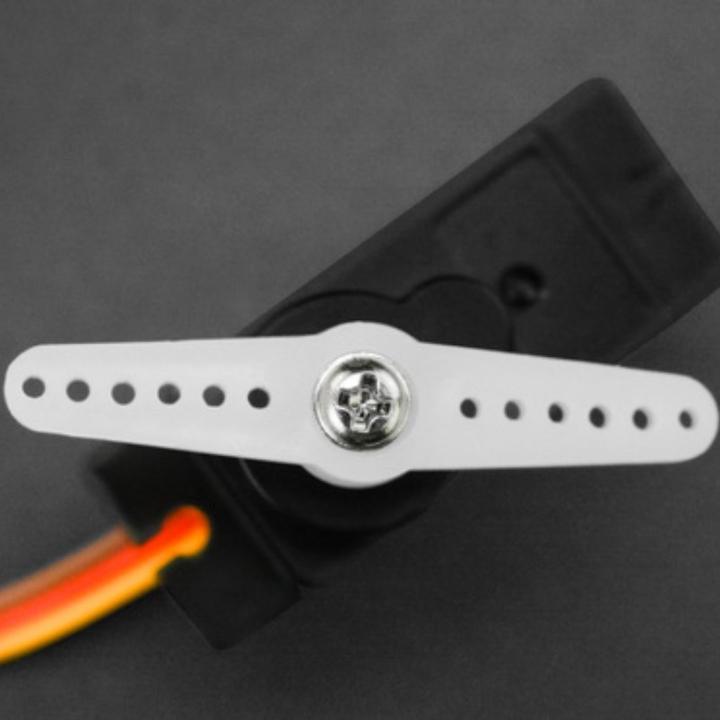

1x Servo arm set.
