DFRobot 4-channel logic level converter 12V to 3.3V

Ratings
BrandMore from DFRobot
Delivered between Tue, 5.8. and Wed, 6.8.
7 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

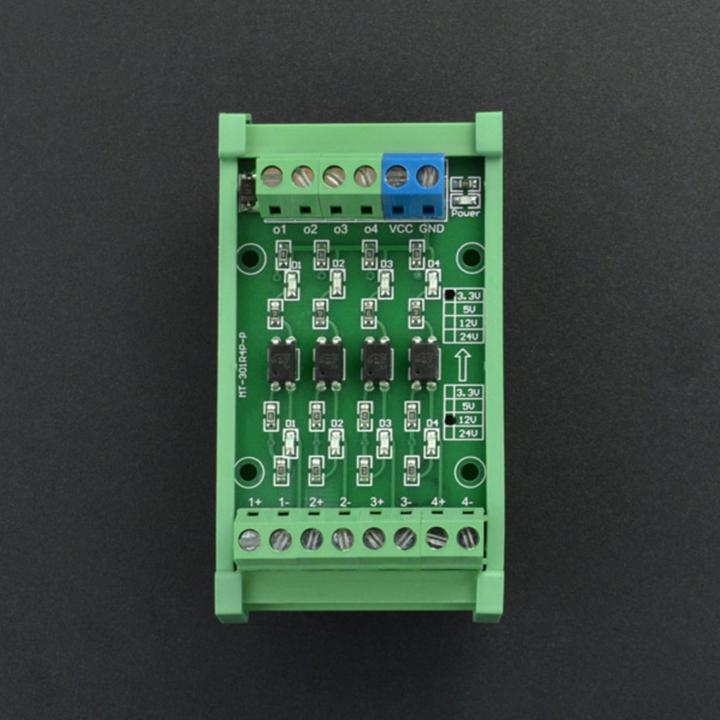

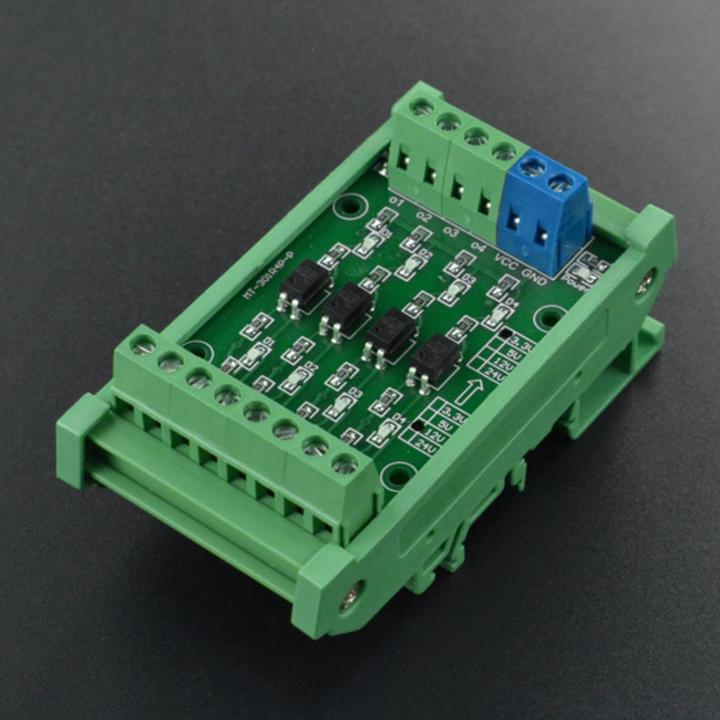

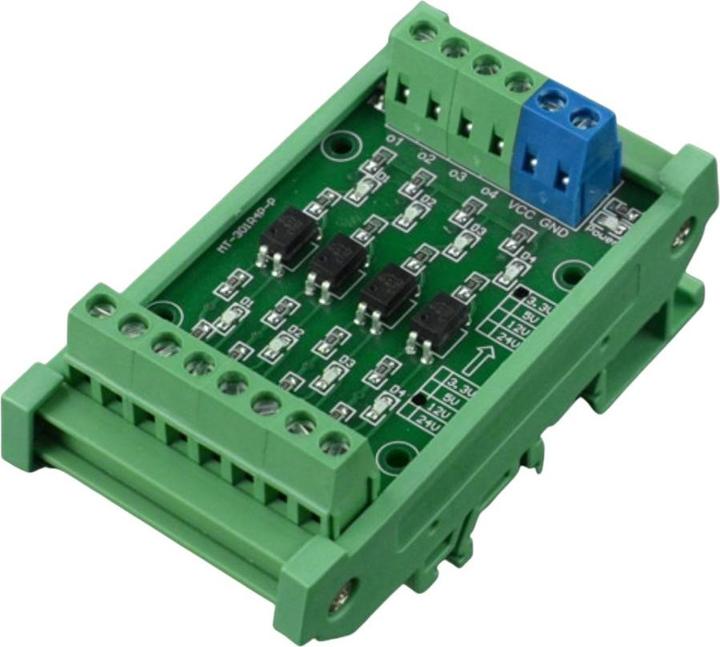

This level converter with optocoupler converts 12V signals to 3.3V signals and provides a PNP output. It has common anode, cathode, and differential signal inputs, along with 4-channel optocoupler isolation. The module can be used for signal conversions such as signal separation, NPN to PNP signal conversion, polarity, and signal level conversions. It is also ideal for converting PLC signal levels to voltages.

Features:

  • PNP output (NPN to PNP available)
  • Output signal level: 12V to 3.3V
  • Photoelectric signal isolation

Technical Details:

  • Manufacturer: DFRobot
  • Manufacturer's SKU: DFR0913

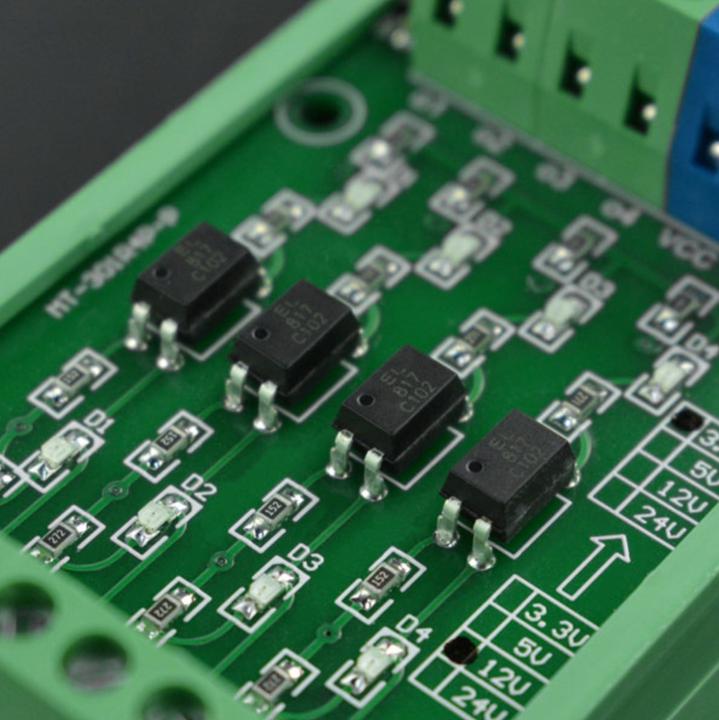

  • Input channel: 4-channel opto-coupler isolation
  • Output signal: PNP output (NPN to PNP available)
  • Sensor input voltage: 12V
  • Module supply voltage: 3.3V
  • Input signal level: 12V
  • Output signal level: 3.3V
  • Output current: no more than 50mA for each channel
  • Display: SMD LED

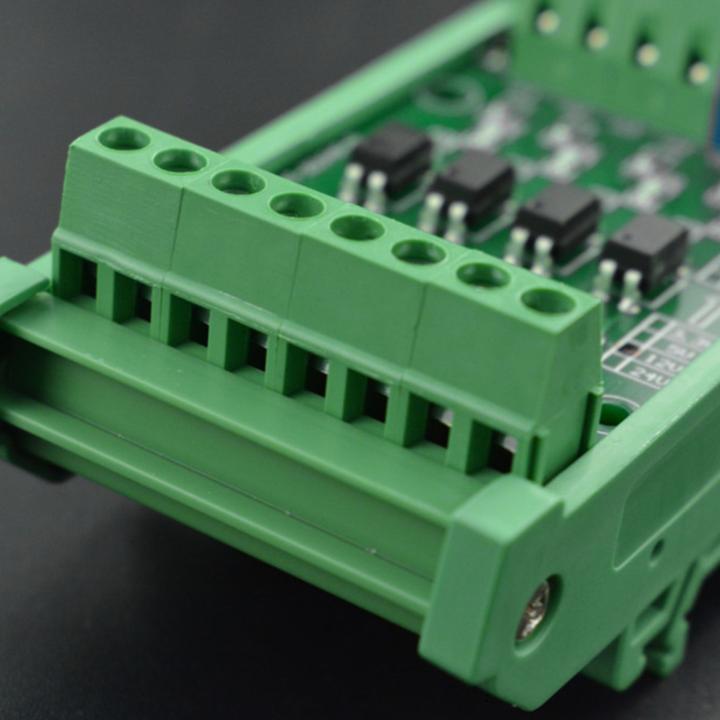

  • Installation specification: with sleeve (fits on standard rails)
  • Size of screw hole: 3mm
  • Dimensions: 47 x 87 x 39mm
  • Weight: 74g

Scope of delivery:
1x 4-channel logic level converter 12V to 3.3V.

Key specifications

Item number
35827863

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
24.5.2023

Power supply

Operating voltage
12 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 4-channel logic level converter 12V to 3.3V

Product dimensions

Weight
74 g
