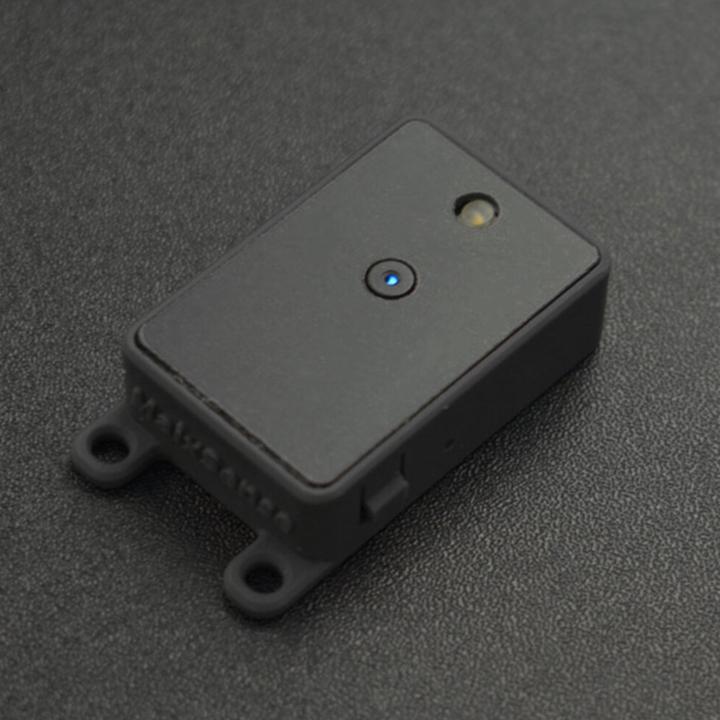

DFRobot 3D ToF depth sensor camera with LCD display

Dive into the future of 3D imaging with the MaixSense-A010 depth sensor camera, equipped with a 1.14-inch LCD display. This state-of-the-art camera uses Time-of-Flight (ToF) technology to create accurate depth maps and enables a variety of applications from surveillance to 3D modeling and facial recognition. With a measurement range of 0.15 to 1.5 meters and support for ROS1 and ROS2, it is ideal for robotics, smart projects, and IoT applications. The camera is plug-and-play capable thanks to its UART and Type-C interfaces and consumes little power, making it a flexible and cost-effective solution for your projects.

Features:

• Combination of ToF and RGB sensors for versatile imaging options.
• Depth measurement range from 0.15 to 1.5 meters.
• Power supply and data transfer via USB 2.0.
• Low power consumption for efficient long-term use.

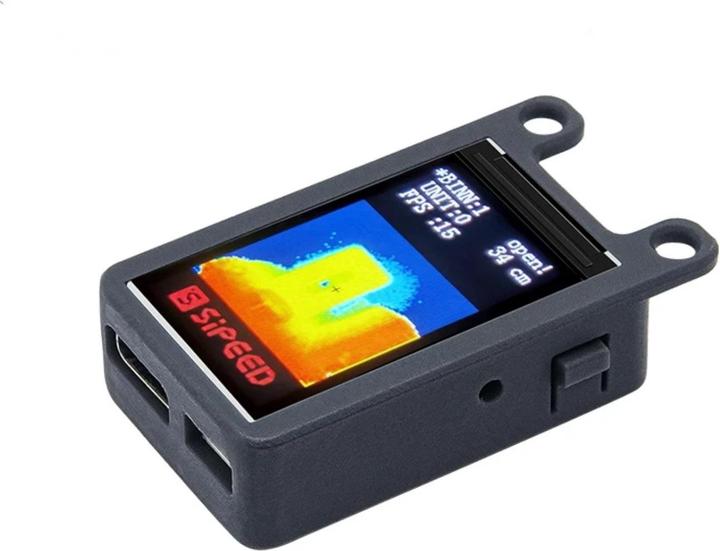

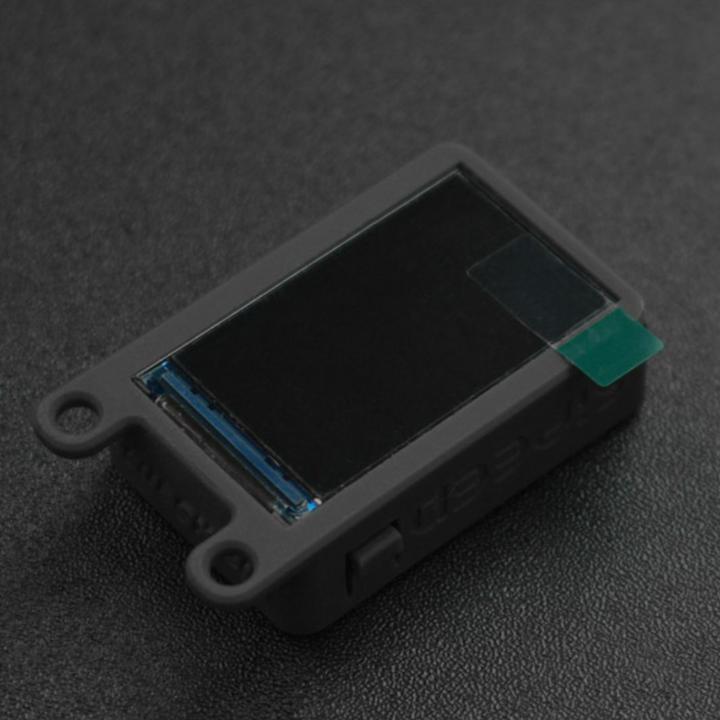

• Integrated 1.14-inch LCD screen for real-time preview of depth maps.

Application examples:

• Navigation and SLAM in robotics.
• Surveillance and security inspections.
• People counting and access control.
• VR/AR applications and gesture recognition.
• Obstacle avoidance for autopilots and automated guided vehicles (AGVs).
• 3D modeling and dimensional measurements.
• Liveness detection and facial recognition.

Technical data:

• Manufacturer: DFRobot / sipeed
• Manufacturer SKU: SEN0581
• CPU: 32-bit RISC CPU with FPU, up to 144 MHz.
• Memory: 132KB RAM and 192KB ROM.
• Supply voltage: 5V/0.5A.
• Measuring range: 0.15-1.5 m.
• Interfaces: UART (1.25mm), USB2.0 (Type-C).
• Display: 1.14-inch LCD.
• Supports ROS1/ROS2.
• Operating temperature: -20 to +50°C.
• Dimension: 23.25 x 40.7 x 10.5mm.
• Weight: 42.3g.

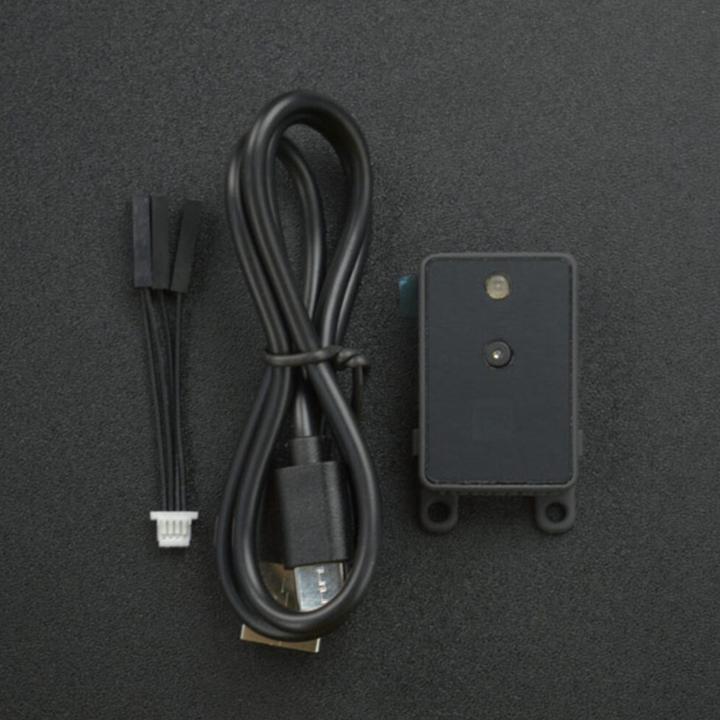

Scope of delivery:

• 1x 3D ToF depth sensor camera with LCD display.
• 1x USB cable.
• 1x UART cable.
