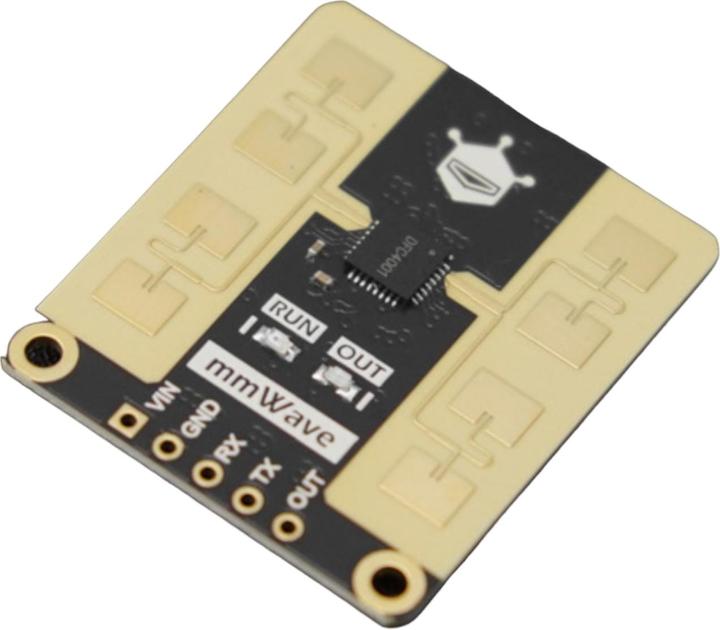

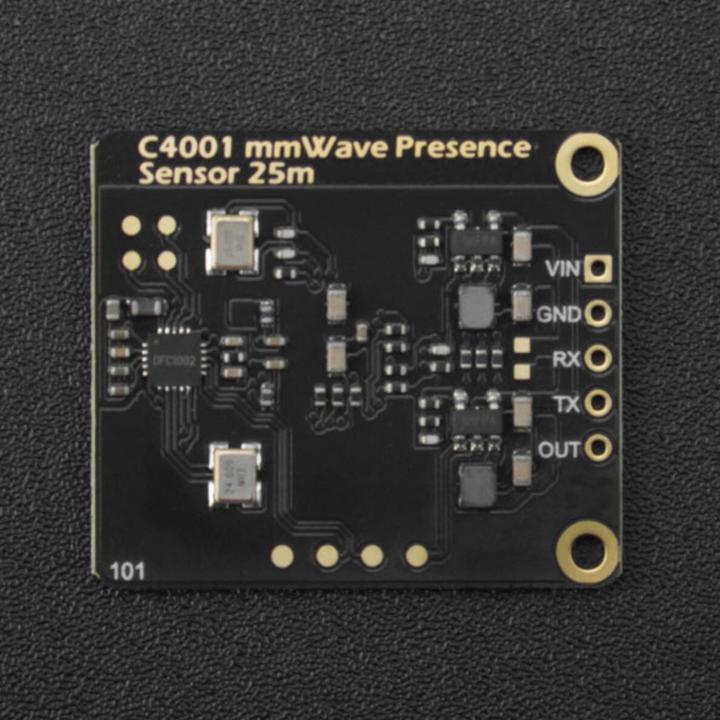

DFRobot 25m C4001 24GHz mmWave radar motion and speed detection

Experience the latest technology in motion and speed detection with the 25m C4001 24GHz mmWave Radar. This state-of-the-art sensor delivers outstanding performance for human presence detection, environmental monitoring, and real-time surveillance projects. With an impressive detection range of up to 25 meters and the ability to capture both static and moving objects, this device sets new standards in sensor technology. The mmWave radar technology allows for precise distance and speed measurement by utilizing frequency-modulated continuous wave (FMCW), resulting in enhanced resolution and real-time capture. Thanks to its strong interference resistance, the sensor is unaffected by environmental factors such as snow, fog, temperature, humidity, and noise, making it an indispensable tool for a variety of applications.

Features:

• Detects human presence in an area of up to 16 meters and movement up to 25 meters.
• Distance detection range from 1.2 to 25 meters.
• Speed detection range from 0.1 m/s to 10 m/s.
• High interference resistance, unaffected by weather conditions and environmental influences.
• Easy integration due to compact dimensions.

Application Examples:

• Human presence detection in buildings or outdoor areas.
• Distance and speed measurement for automation projects.
• Environmental monitoring and data collection.
• Industrial automation and real-time monitoring.

Technical Specifications:

• Manufacturer: DFRobot
• Manufacturer SKU: SEN0609
• Communication: UART
• Baud Rate: 9600
• Operating Voltage: 3.3/5V
• Maximum Detection Range: 25m
• Beam Angle: 100 x 40°
• Modulation Mode: FMCW
• Operating Frequency: 24GHz
• Operating Temperature: -40 to 85℃
• Dimensions: 26 x 30 x 3.6mm
• Weight: 4.3g

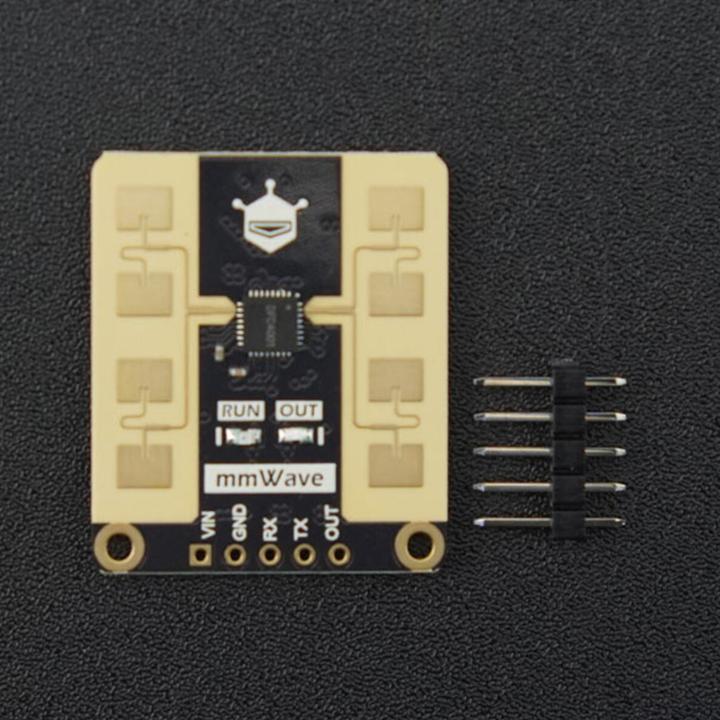

Delivery Contents:

• 1x 25m C4001 24GHz mmWave Radar Motion and Speed Detection
• 1x 5-Pin Header.
