DFRobot 1MP OV9281 Global Shutter Kamera 79 FOV für Raspberry Pi 4B/5

This camera is the perfect choice for applications where fast movements need to be captured without distortion. Thanks to the global shutter technology, it captures images without the typical rolling shutter effect, preventing motion blur. The OV9281 image sensor with a resolution of 1280 × 800 pixels ensures clear and detailed shots, even in low light conditions. The camera is specifically designed for use with the Raspberry Pi 4B and 5 and comes with the appropriate FPC cables, allowing you to connect it immediately. The fixed focus lens with an aperture of f/2.0 provides sharp images without the need for manual adjustment. With a field of view of 79°, the camera is suitable for precise image capture in various technical applications. The MIPI-CSI-2Lane interface enables fast and stable image transmission. Thanks to its high light sensitivity and integrated infrared filter technology, it is ideal for surveillance tasks and real-time image processing. It is particularly well-suited for machine vision applications, gesture recognition, and motion analysis. Its compact design makes it easy to integrate into existing projects.

Technical Specifications
Manufacturer: DFRobot
Manufacturer SKU: SEN0634
Image Sensor: Black and White OV9281
Pixel Count: 1 Million
Pixel Size: 3 µm × 3 µm
Maximum Resolution: 1280 × 800 Pixels
Shutter Type: Global Shutter
Focus Mode: Fixed Focus
CMOS Sensor Size: 1/4 Inch
Infrared Filter: Integrated
Aperture: f/2.0
Focal Length: 2.85 mm
Field of View: 79.3°
Distortion: <1%
Interface: MIPI-CSI-2Lane
Lens Size: 6.5 × 6.5 mm
Dimensions: 26 x 25 x 8 mm
Weight: 15 g

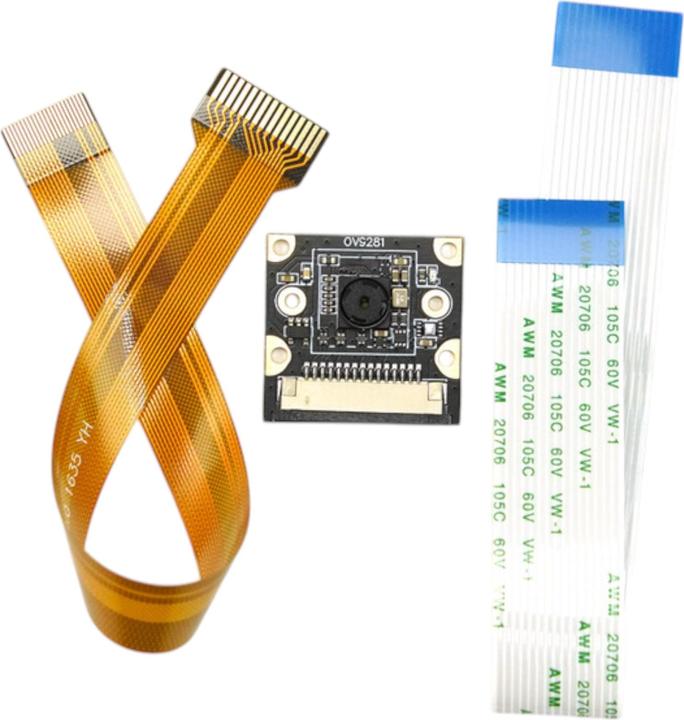

Included in Delivery
1x 1MP OV9281 Global Shutter Camera 79 FOV for Raspberry Pi 4B/5
1x 15-Pin to 15-Pin FPC Cable
1x 15-Pin to 22-Pin FPC Cable.
