DFRobot 12V 251RPM 18Kg*cm DC Gear Motor with Encoder

Ratings
BrandMore from DFRobot
Delivered between Wed, 9.7. and Thu, 10.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

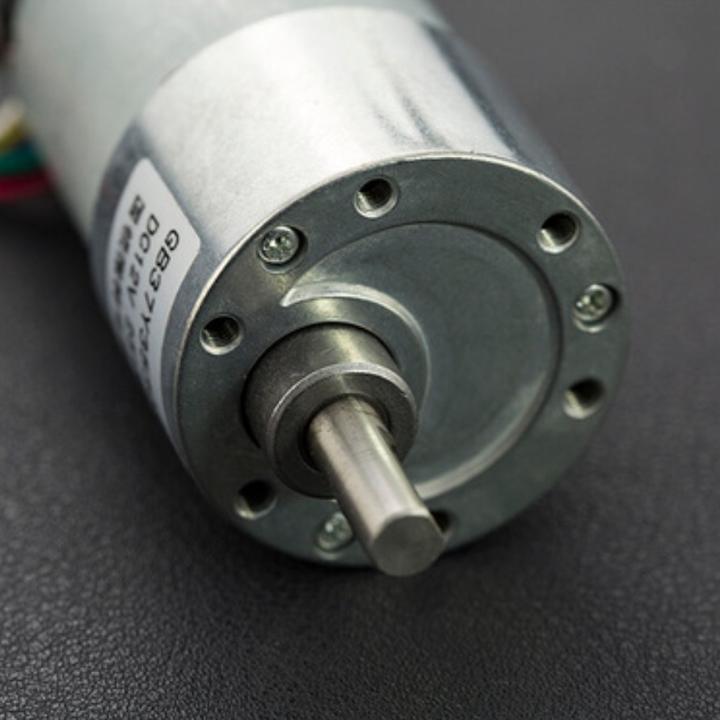

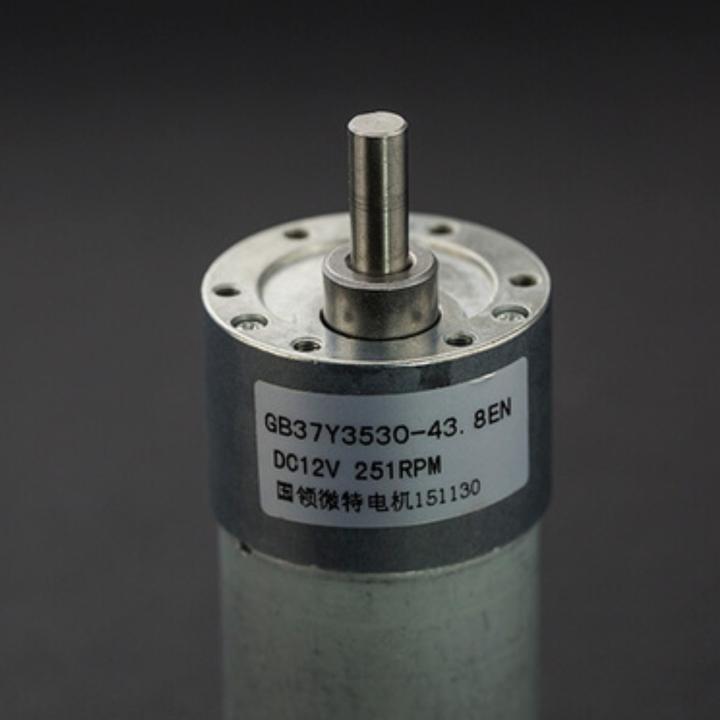

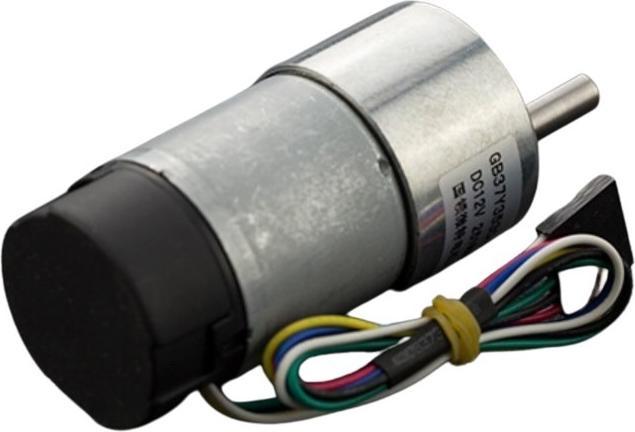

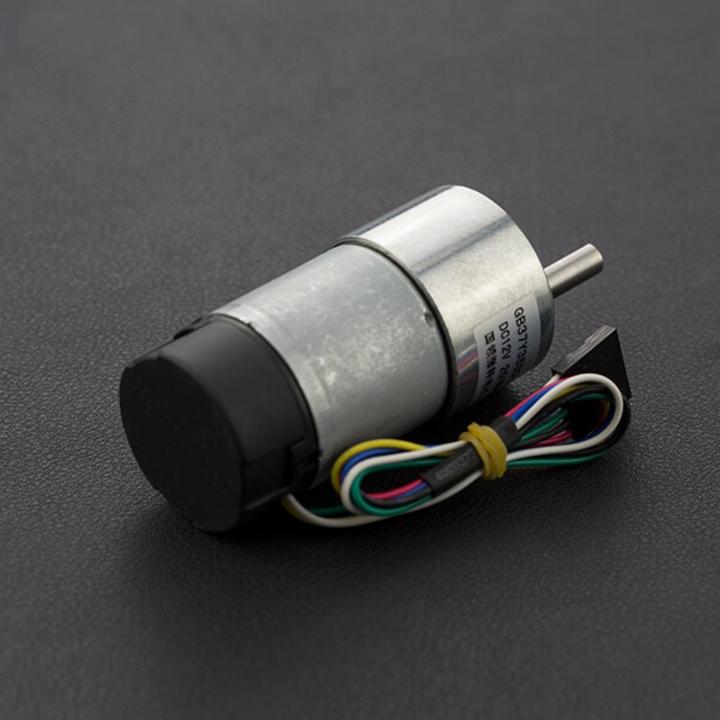

This is a 12V DC motor with a 43.8:1 metal gearbox and an integrated encoder that provides a resolution of 16 counts per revolution of the motor shaft, which corresponds to 700 counts per revolution of the gearbox output shaft. The motor features a D-shaped output shaft with a length of 12 mm and a diameter of 6 mm. This motor is designed for use at 12V but can be operated at a voltage as low as 1V. It is an ideal option for your mobile robot project. If you do not require precise speed control, you can also drive the motor without the encoder.

Caution: Do not screw the screws too far into the housing, as they may damage the gearbox. The manufacturer recommends 3 mm.

Technical Details
Manufacturer: DFRobot
Manufacturer SKU: FIT0186
Voltage: 1V to 12V DC
Gear Ratio: 43.8:1
Speed: 251 RPM
No Load Current: 350 mA
Full Load Current: 7 A
Torque: 18 kg*cm
Insulation Resistance: 20 MΩ
Encoder Voltage: 5 V
Encoder Type: Hall
Encoder Resolution: 16 CPR (Motor)/700 CPR (Gearbox)
Dimensions: Ø37 x 74 mm
Cable Length: 20 cm
Weight: 233 g

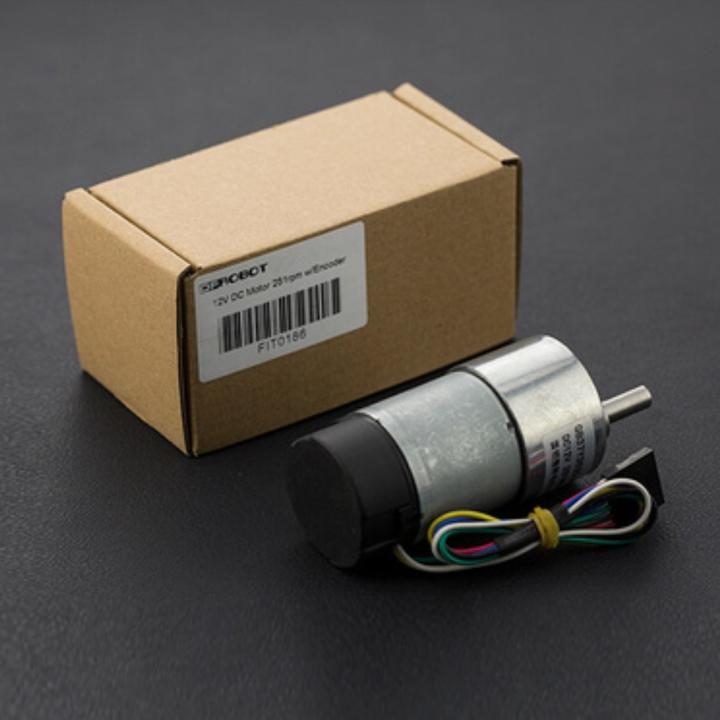

Package Includes
1x 12V 251 RPM 18 kg*cm DC Gear Motor with Encoder.

Key specifications

Item number
24936658

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
30.3.2023

Power supply

Operating voltage
12 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 12V 251RPM 18Kg*cm DC geared motor with encoder

Product dimensions

Weight
233 g
