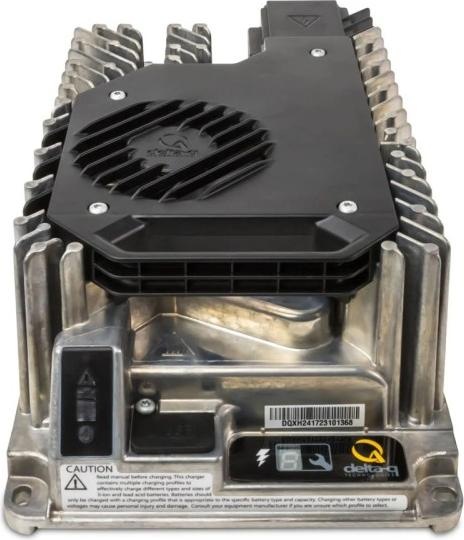

Delta-Q Battery charger IC1200 Base 24V 50A

1200 W Industrial Battery Charger

The IC1200 charger can charge lead-acid (flooded, AGM, gel) and lithium batteries and is available in both on-board and off-board configurations. Applications include scissor lifts, pallet trucks, floor care machines, and golf carts.

High Reliability

From the outset of the device's development, a strong focus was placed on high reliability.

Quality of Charge

Charging profiles for precise charging of deep-cycle lead-acid and lithium batteries.

Easy to Integrate

Supports troubleshooting on the machine through integrated charge cycle tracking. Data download/upgrade software via USB host connection. Optional CANBus communication allows for deep machine integration, diagnostics, and control.

Global and Efficient

Reliable operation on any single-phase network worldwide. Highly efficient charging for energy savings and shorter charging times.

Technical Specifications

Battery Nominal Voltage: 24V
Max. Output Voltage: 36V
Max. Output Current: 50A
Max. Output Power: 1200W
Deep Discharge Recovery: 1.2V
Battery Types: Lead flooded, AGM, gel, Li-Ion
Input Voltage Range: 85 - 270VAC
Nominal Input Voltage: 100 - 240VAC
Frequency: 50 / 60Hz
Max. Input Current: 14.5A
Max. Efficiency: 93%
Operating Temperature Range: -40°C to +65°C (Derating >40°C)
Storage Temperature Range: -40°C to +85°C

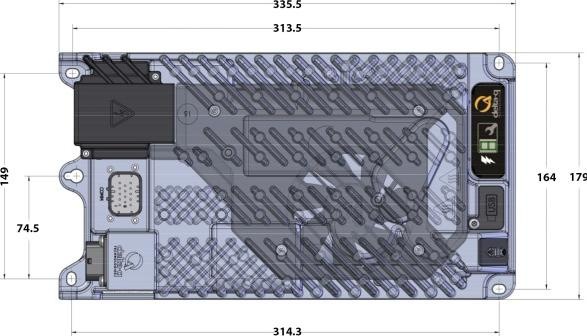

Dimensions: 335 x 179 x 105 mm
Weight: 4.1kg.
