Delock USB Type-C Triple Display Docking Station with DisplayL

This docking station from Delock can be connected to a computer with a USB-C DP Alt Mode, Thunderbolt 3, or Thunderbolt 4 port and provides a variety of interfaces. Three monitors can be operated simultaneously at the video outputs. Five integrated USB ports allow for the use of peripheral devices. Connections for a microphone and speakers, a Gigabit network port, and an SD card reader complete the features.

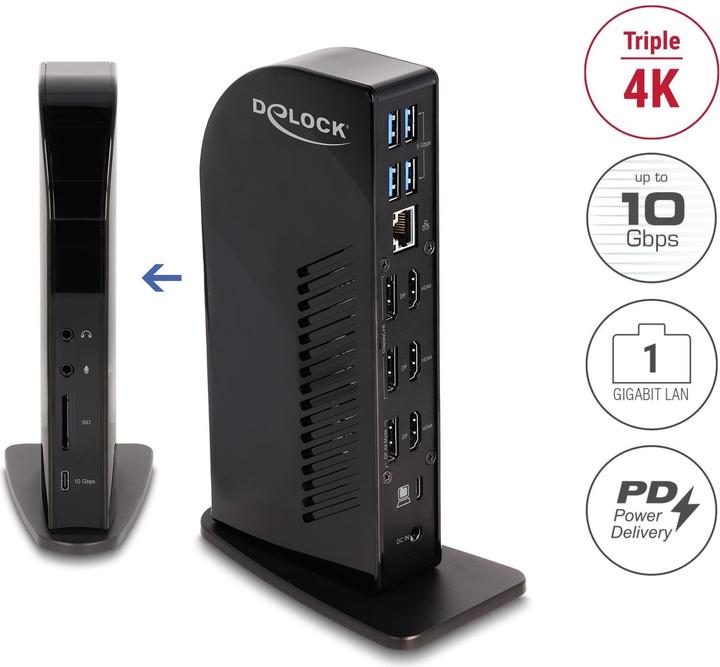

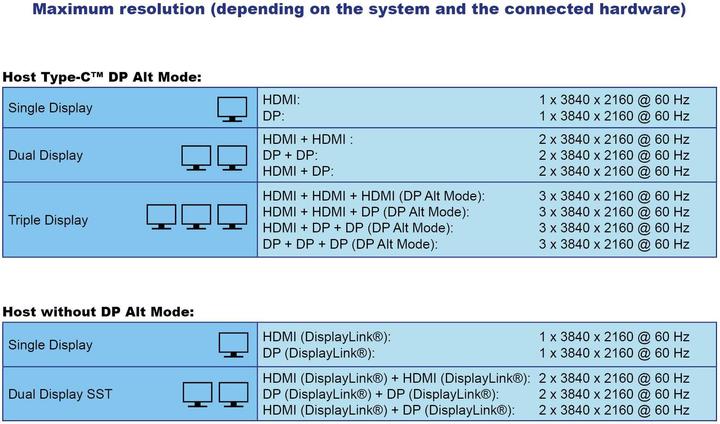

Triple Display 4K UHD Resolution

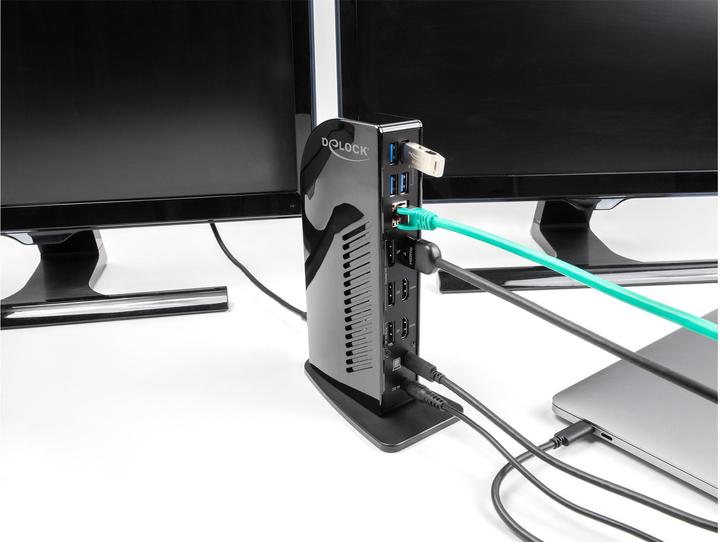

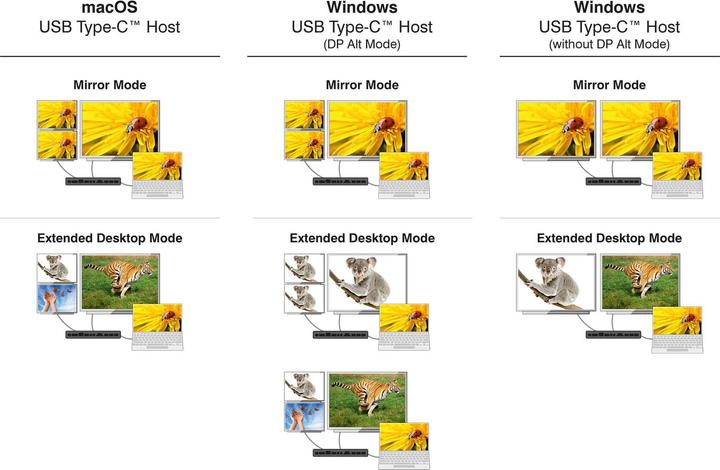

When using the three video outputs simultaneously, one monitor is operated via the DisplayPort Alternate Mode, while the other two are connected via DisplayLink. From each pair of DisplayPort and HDMI connections, one port can be used. The Delock docking station can also be operated on devices without a USB Type-C port with DP Alt Mode support, providing video output to a maximum of two monitors. A maximum resolution of 4K can be guaranteed on all ports, regardless of the operating system. Thanks to the DisplayLink graphics chipset, mirrored and extended display functions can be utilized on Windows and Mac OS operating systems.

USB Power Delivery (USB PD 3.0) support up to 96 Watts

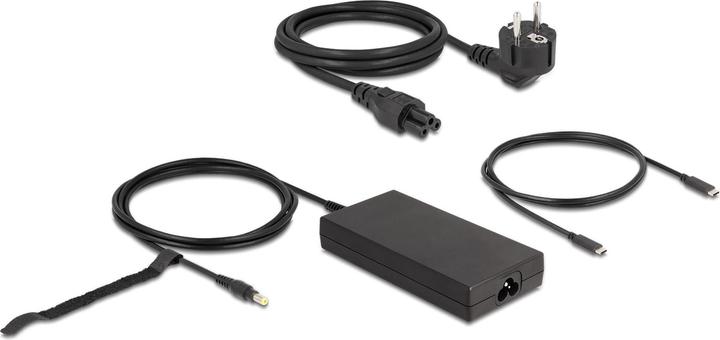

The power supply connected to the docking station charges the host device during operation with up to 96 Watts.

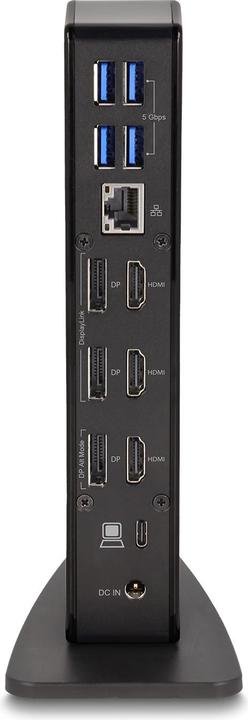

Stand

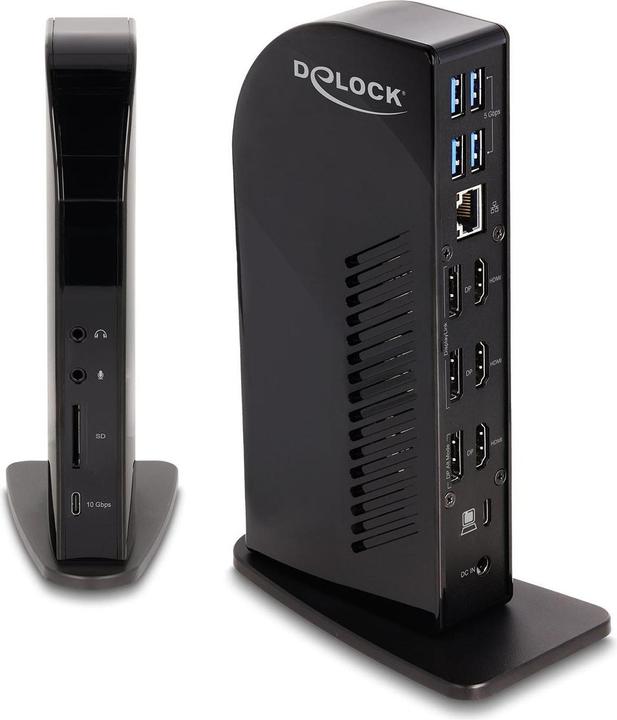

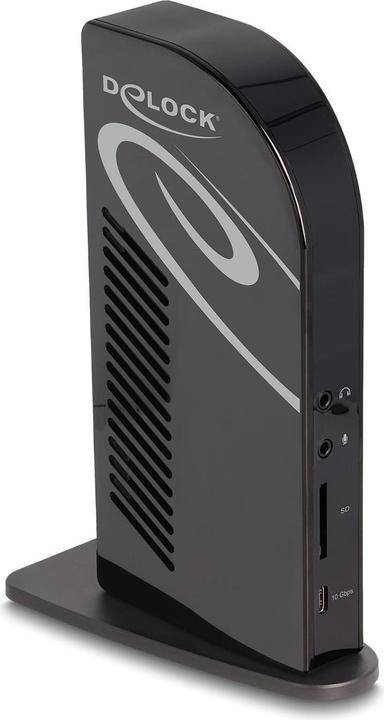

Due to its vertical installation, the Delock docking station takes up less space on the desk.

Specifications

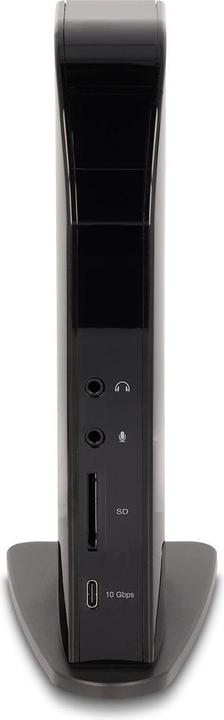

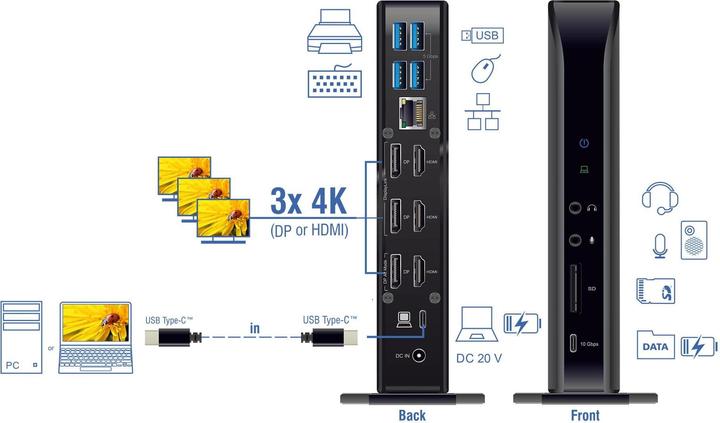

• Connections:

1 x USB Type-C port
1 x DisplayPort port (DP Alt Mode)
2 x DisplayPort ports (DisplayLink)
1 x HDMI port (DP Alt Mode)
2 x HDMI ports (DisplayLink)
4 x USB 5 Gbps Type-A ports
1 x USB 10 Gbps USB Type-C port
1 x Microphone 3.5 mm jack
1 x Speaker 3.5 mm jack
1 x Gigabit LAN 10/100/1000 Mbps RJ45 port
1 x SD Slot
1 x DC 20 V power connection.
