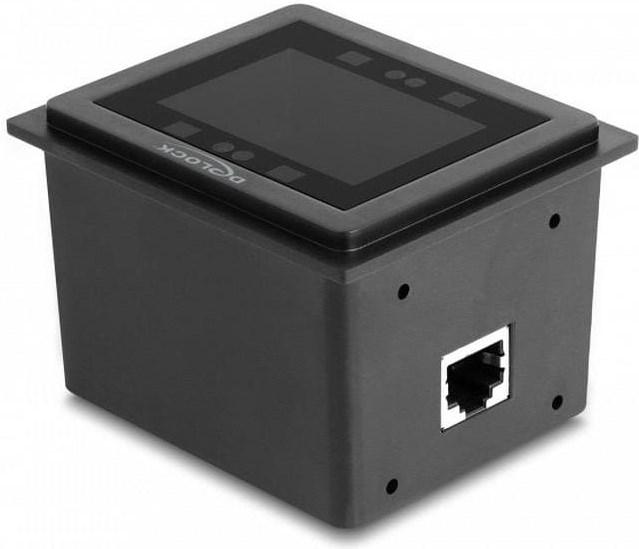

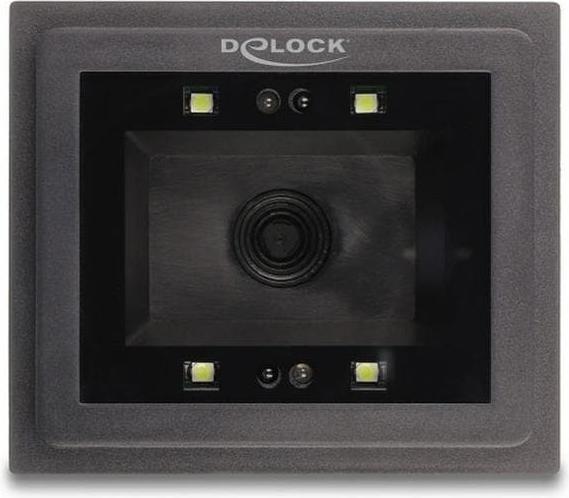

Delock USB barcode scanner 1D and 2D wired for stationary installation

This stationary barcode scanner from Delock is ideally suited for space-saving installation in a tabletop and connection to the system. It is also perfect for use in access control, for example in a digitized turnstile. All common 1D and 2D barcode types can be accurately scanned from a smartphone as well.

The scanner automatically adjusts to ambient light conditions and can capture up to 60 scans per second under optimal lighting. In low ambient light, the barcode is illuminated by an additional white LED, making it usable even in poor lighting conditions.

The data transmission of the scanned barcodes is done via the included USB cable.

Note: This scanner is intended solely for outputting the German keyboard layout.

Specifications:

• Connection: 1 x RJ50 socket
• Decoding chip: ARM Cortex 32 Bit
• Resolution: 752 x 480
• Trigger: Presentation mode
• Reading distance: approx. 50 mm to 250 mm
• Reading accuracy: 5 mil
• Compensation light: White LED
• Sensor: CMOS image sensor
• Scan rate: up to 60 scans per second
• Ambient light: max. 100000 Lux
• Input voltage: 5 V
• Power consumption: Operation max. 100 mA, Standby max. 30 mA
• Operating temperature: -10 °C to 50 °C
• Storage temperature: -10 °C to 50 °C
• Relative humidity: 5 - 95 % (non-condensing)
• Color: black
• Weight: approx. 173 g
• Dimensions (LxWxH): approx. 78 x 67 x 52 mm
• Cable length without connectors: approx. 1.5 m
• 2.4 GHz
• Scan codes: Code 128, Code 39, Interleaved 2 of 5, EAN-8 / EAN-13, ISBN - 13, Data Matrix, Micro QR, PDF417, QR Code

System requirements:

• Mac OS 12.4 or higher
• Windows 8.1/8.1-64/10/10-64/11
• PC or notebook with a free USB Type-A port

Package contents:

• Barcode scanner

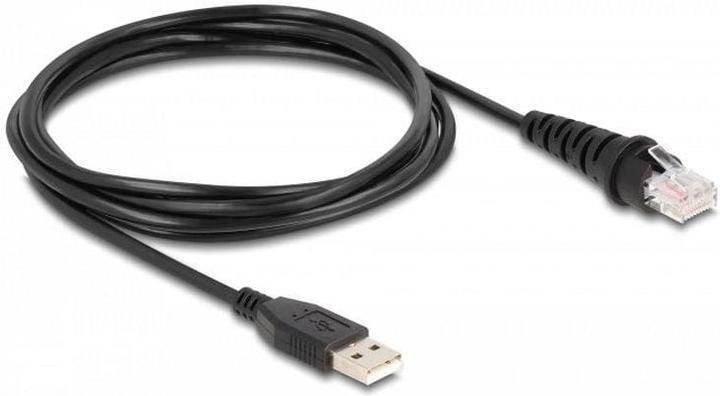

• USB data cable
• User manual.
