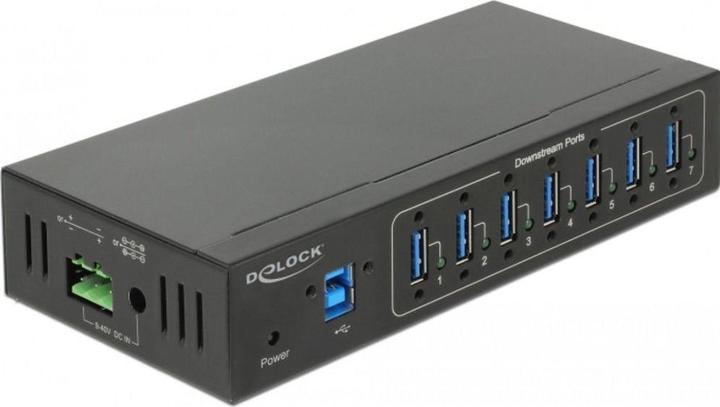

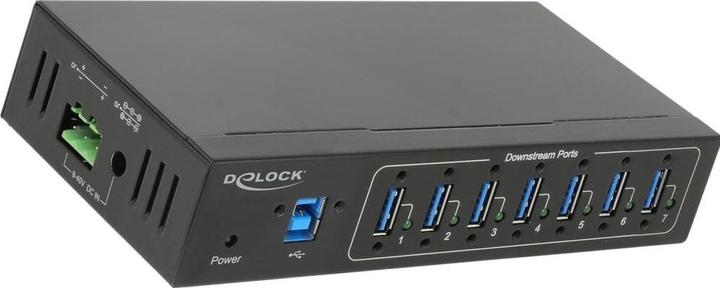

Delock USB 3 Hub 7-Port USB Type-A

This stable industrial-grade USB hub from Delock, housed in metal, connects to a computer via the USB Type-A port. It expands the computer with seven USB Type-A ports that support the USB Battery Charging Specification BC1.2, allowing connected devices, such as smartphones, to charge faster. If needed, an optional power supply or power cable can be connected to the power socket.

Specifications:

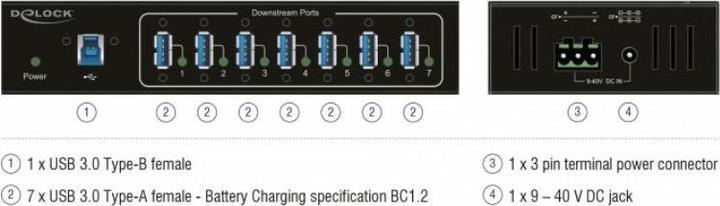

• Connections:
• 1 x USB 3.0 Type-B socket
• 7 x USB 3.0 Type-A sockets - Battery Charging Specification BC1.2
• 1 x 9 – 40 V DC power socket
• 1 x 3 Pin terminal power connection
• Chipset: VIA VL811+
• Data transfer rates up to:
• SuperSpeed USB 5 Gbps
• Hi-Speed 480 Mbps
• Full-Speed 12 Mbps
• Low-Speed 1.5 Mbps
• 8 x LED indicators
• USB ports with screw connections
• Robust metal housing
• Hole spacing USB Type-A: approx. 19 mm
• Hole spacing USB Type-B: approx. 16.5 mm
• Thread size: M3

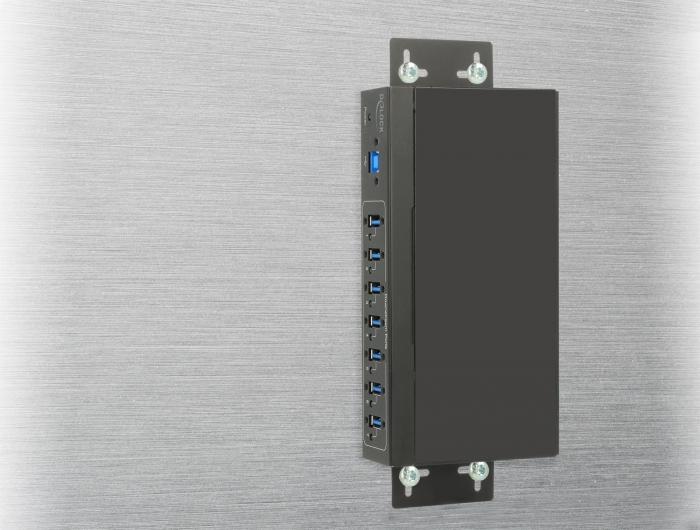

• Removable wall mount
• Power supply: Bus-powered or Self-powered
• Flexible voltage supply from 9 V to 40 V
• Automatic detection of input polarity at power connections
• ESD protection up to 15 kV for all ports
• Dimensions (LxWxH): approx. 158 x 80 x 32 mm
• Color: black
• Plug & Play

Power connection specifications:

• 9 - 40 V
• Dimensions:
• inside: ø approx. 2.1 mm
• outside: ø approx. 5.5 mm
• Length: approx. 9 mm

System requirements:

• Windows 7/7-64/8.1/8.1-64/10/10-64, from Linux Kernel 3.16.x, from Mac OS 10.9
• PC or notebook with a free USB Type-A port

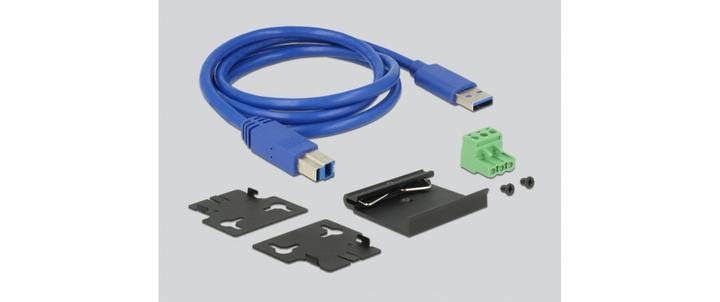

Package contents:

• USB Hub
• 1 x USB A male to USB B male cable, length approx. 1 m
• 2 x wall mounting plates
• 1 x bracket for 35 mm DIN rail
• 1 x 3 Pin terminal block
• User manual.
