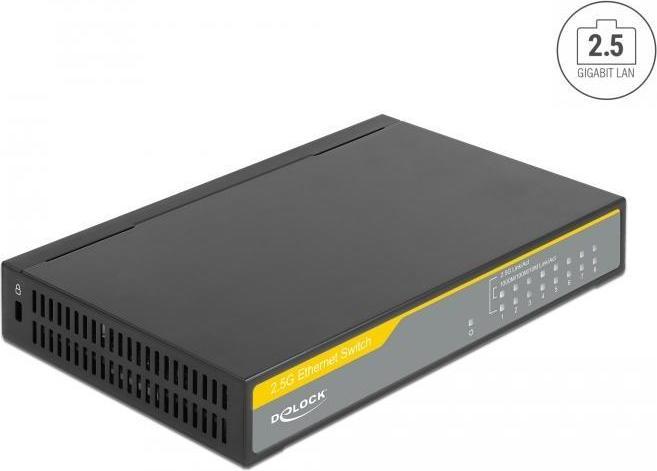

Delock Switch 2.5 Gigabit Ethernet 8 Port

2.5 Gigabit Ethernet Switch 8 Port

This 2.5 Gigabit Ethernet switch by Delock can be used to connect different network components.

NBASE-T for higher speed

Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

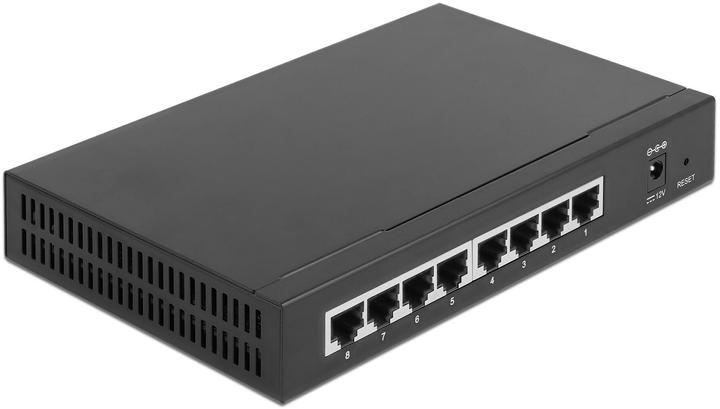

Connectors: 8x 2.5 Gigabit LAN RJ45 jack, 1x DC 5.5 x 2.1 mm female
Data transfer rate: Ethernet up to 10 Mbps, Fast Ethernet up to 100 Mbps, Gigabit Ethernet up to 1000 Mbps, 2.5 Gigabit Ethernet up to 2500 Mbps
Supports IEEE 802.3/802.3u/802.3ab/802.3bz/802.3x
Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
Bandwidth: 40 Gbps
Supports 12k Jumbo Frames
LED indicator for link and activity
Robust metal housing
Security lock (Kensington Lock) for security cable
Removable wall mount brackets
Fanless
Operating temperature: 0°C to 40°C
Dimensions (L x W x H): approximately 190 x 120 x 30 mm

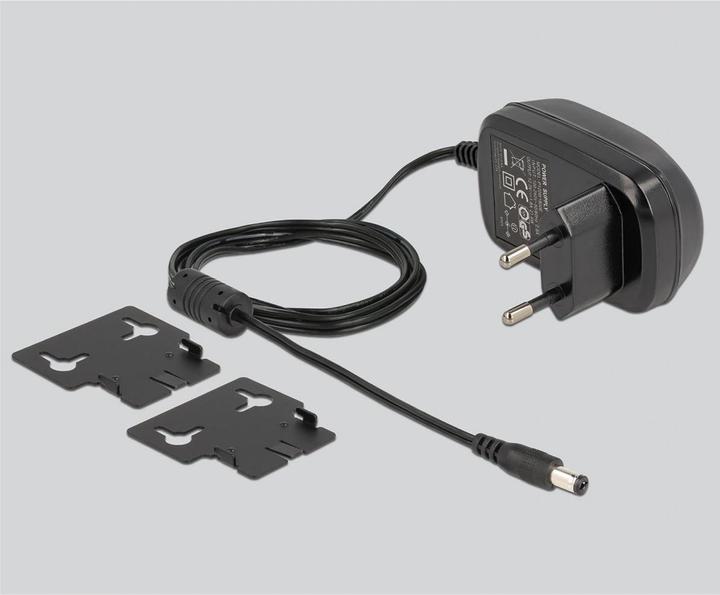

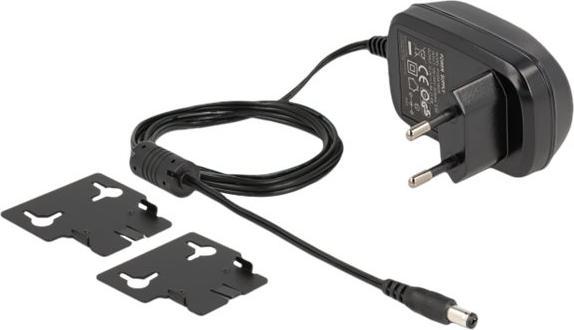

Power Supply Specification

Wall power supply
Input: AC 100 to 240 V/50 to 60 Hz/0.6 A
Output: 12.0 V/1.8 A/21.6 W
Ground outside, plus inside
Dimensions: Inside: approximately 2.1 mm; Outside: approximately 5.5 mm

System Requirements

Device with one free RJ45 port.
