Delock Switch 2.5 Gigabit Ethernet 5 Port

2.5 Gigabit Ethernet Switch 5 Port

This 2.5 Gigabit Ethernet switch by Delock can be used to connect different network components.

NBASE-T for higher speed

Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

Connectors: 5x 2.5 Gigabit LAN RJ45 jack, 1x DC 5.5 x 2.1 mm female.
Data transfer rate: Ethernet up to 10 Mbps, Fast Ethernet up to 100 Mbps, Gigabit Ethernet up to 1000 Mbps, 2.5 Gigabit Ethernet up to 2500 Mbps.
Supports IEEE 802.3/802.3u/802.3ab/802.3bz/802.3x.
Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure.
Bandwidth: 25 Gbps.
Supports 12k Jumbo Frames.
LED indicator for link and activity.
Robust metal housing.
Security lock (Kensington Lock) for security cable.
Removable wall mount brackets.
Fanless.
Operating temperature: 0°C to 40°C.
Dimensions (L x W x H): approximately 155 x 120 x 30 mm.

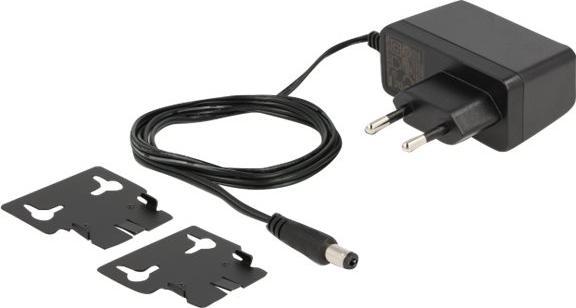

Power Supply Specification

Wall power supply.
Input: AC 100 to 240 V/50 to 60 Hz/0.5 A.
Output: 12.0 V/1.0 A/12.0 W.
Ground outside, plus inside.
Dimensions: Inside: approximately 2.1 mm; Outside: approximately 5.5 mm.

System Requirements

Device with one free RJ45 port.
