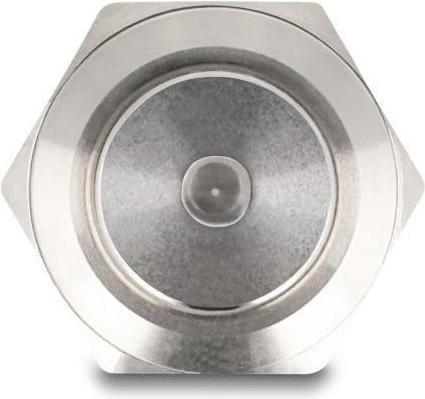

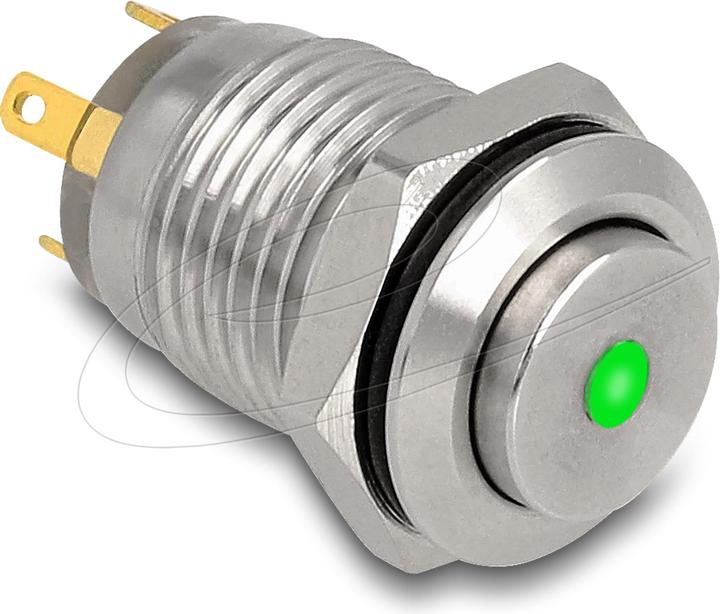

Delock Pushbutton for installation 12 mm 4 x solder connection LED green

This push button from Delock is ideal for installation in control panels, for example in industry, control, or regulation technology. It is also found in the automotive sector or in consumer applications, such as a doorbell or trigger for lighting systems with timers, like those found in hallways.

A so-called push button returns to its original position after being pressed.

The normally open (NO) contact establishes a connection between two contacts, while the normally closed (NC) contact breaks it.

Specifications:

• Connections: 4 x solder terminals
• Switch type: 1NO + 1NC
• Switching voltage: AC 230 V~ / 3 A
• Number of contacts: 4
• Number of normally open contacts: 1
• Function: momentary
• Actuator: high
• Operating temperature: -25 °C ~ 55 °C
• Mounting hole diameter: 12 mm
• Key width hex nut: 14 mm
• Installation depth: approx. 18 mm
• Thread size: M12
• LED lighting: green
• LED voltage: 12 V
• LED type: dot
• Material: nickel-plated stainless steel
• Mechanical lifespan: 1,000,000 cycles
• Electrical lifespan: 100,000 cycles
• Protection class: IP65
• Dimensions (LxD): approx. 23 x 14 mm.
