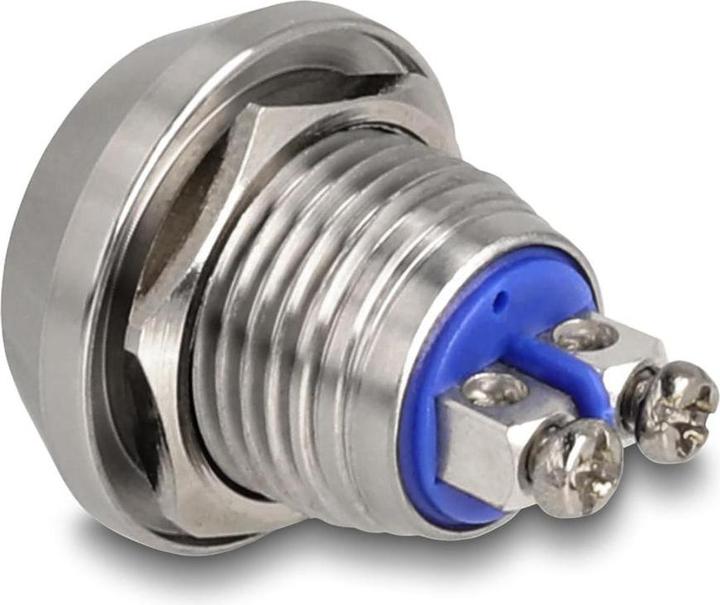

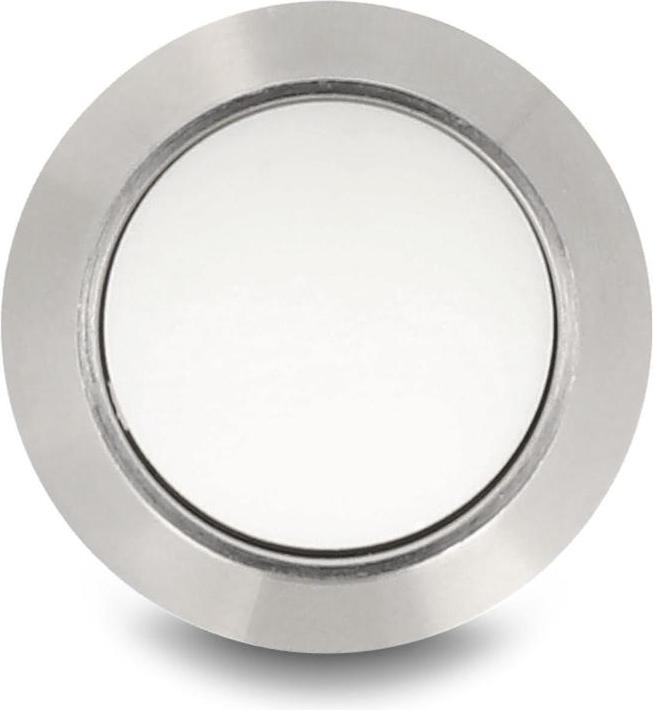

Delock push button for installation 12 mm 2 x screw terminal white

This push button from Delock is ideal for installation in control panels, for example in industry, control, or regulation technology. It can also be found in the automotive sector or in consumer applications, such as doorbells or triggers for lighting systems with timers, like those found in hallways.

A so-called push button returns to its original position after being pressed.

The normally open (NO) contact establishes a connection between two contacts, while the normally closed (NC) contact breaks this connection.

Technical specifications:

• Connections: 2 x screw terminal
• Switch type: 1NO
• Load limit: AC 250 V~ / 3 A
• Number of contacts: 2
• Number of normally open contacts: 1
• Function: momentary
• Actuator: convex
• Operating temperature: -25 °C ~ 55 °C
• Mounting hole diameter: approx. 12 mm
• Wrench size for hex nut: 14 mm
• Installation depth: approx. 15 mm
• Thread size: M12
• Color of push button: white
• Material: nickel-plated stainless steel
• Mechanical lifespan: 1,000,000 cycles
• Electrical lifespan: 100,000 cycles
• Protection class: IP65
• Dimensions (LxD): approx. 22.0 x 17.5 mm

Delivery includes:

• Push button.
