Delock PCI Express x4 SATA, 1x M.2

1Ratings
BrandMore from Delock
Delivered between Mon, 21.7. and Wed, 23.7.
6 pieces in stock at supplier
free shipping

Product details

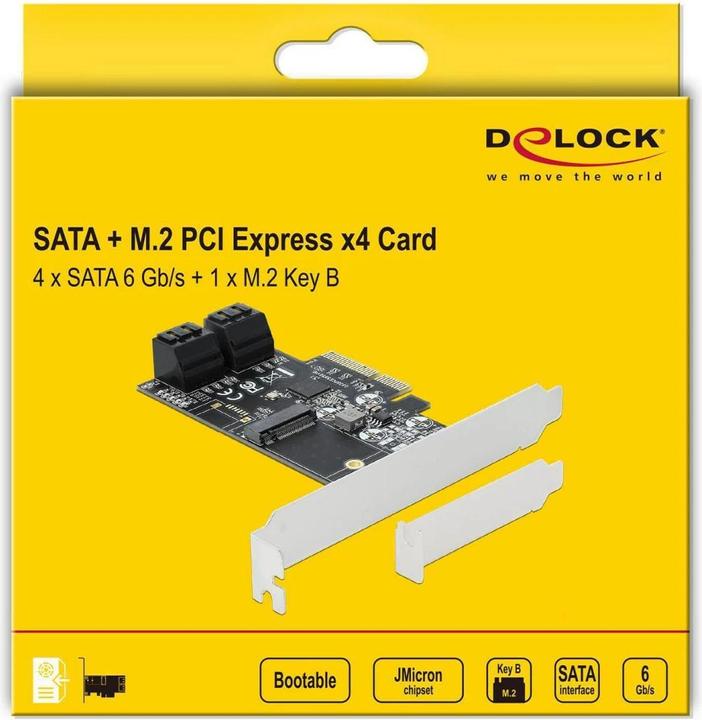

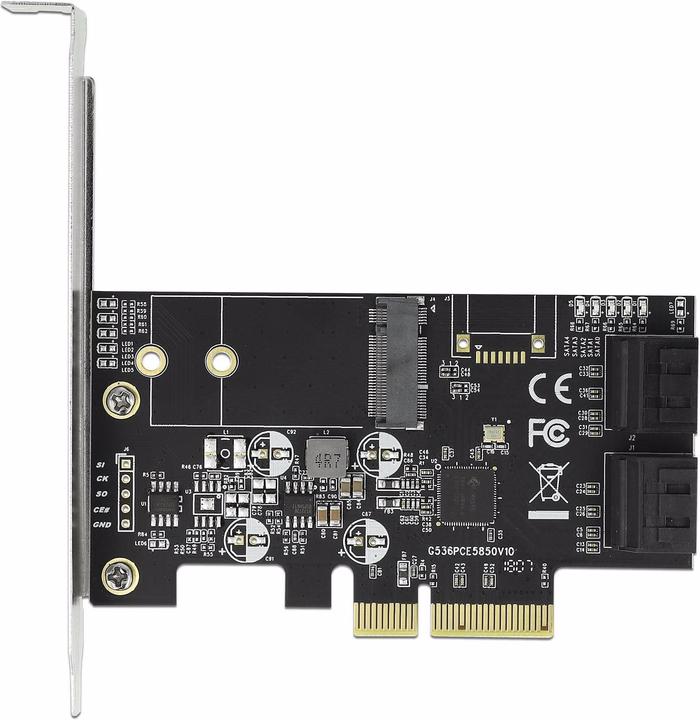

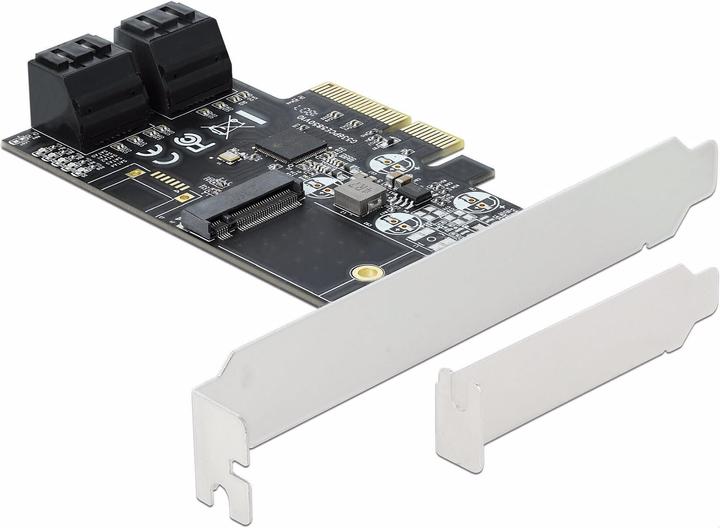

The Delock PCI Express card expands the PC with four internal SATA ports and one M.2 slot. Various devices such as SSDs, hard drives, DVD drives, and an M.2 module in 2242 or 2230 format can be connected to this card.

Specifications:

  • Connections:
  • Internal:
  • 4 x SATA 6 Gb/s 7-pin connectors
  • 1 x 67-pin M.2 Key B slot
  • 1 x PCI Express x4, V3.0
  • Chipset: JMicron JMB585
  • 5 x LED indicators
  • Interface: SATA
  • Supports M.2 modules in 2242 and 2230 format with Key B or Key B+M based on SATA
  • Maximum height of components on the module: 1.5 mm, use of double-sided modules possible
  • Supports Native Command Queuing (NCQ)
  • Supports S.M.A.R.T.
  • Supports TRIM
  • Supports DevSleep
  • Hot Swap
  • Bootable

System Requirements:

  • Linux Kernel 3.3 or higher
  • Windows 7/7-64/8.1/8.1-64/10/10-64
  • PC with a free PCI Express x4 / x8 / x16 / x32 slot

Package Contents:

  • PCI Express card
  • Low profile bracket

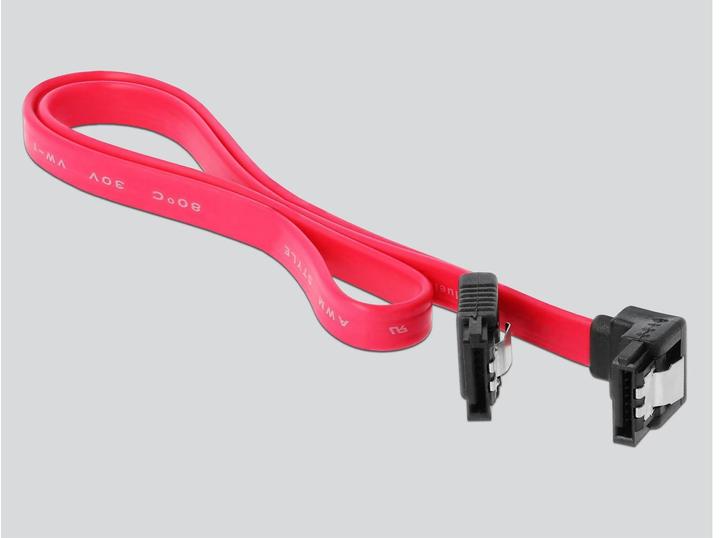

  • 4 x SATA cables, approximately 50 cm in length
  • M.2 mounting materials
  • User manual.

Key specifications

Internal connection options
mSATA (1x)
Expansion slot
PCI Express x4 (1x)
Number of connectable hard disks
5 x
Controller type
M.2 controller, SATA controller
Item number
12302169

General information

Manufacturer
Delock
Category
Storage controller
Manufacturer no.
90396
Release date
20.9.2019
External links
Manufacturer's site (de)

Controller properties

Controller type
M.2 controller, SATA controller
Expansion card form factor
Low profile
Number of ports
5 Ports
Number of connectable hard disks
5 x
Storage Controller Additional Functions
Hot swapping

Internal interfaces

Expansion slot
PCI Express x4 (1x)
Internal connection options
mSATA (1x)

Scope of delivery

Scope of delivery
4 x SATA cable, Low Profile Aperture, M.2 Fastening material, Manual, PCI Express card

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
155 mm
Width
155 mm
Weight
200 g

Package dimensions

Length
17 cm
Width
16.40 cm
Height
2.90 cm
Weight
168 g
