Delock PCI Express x16 Karte zu 2x USB 20 Gbps USB Type-C Du

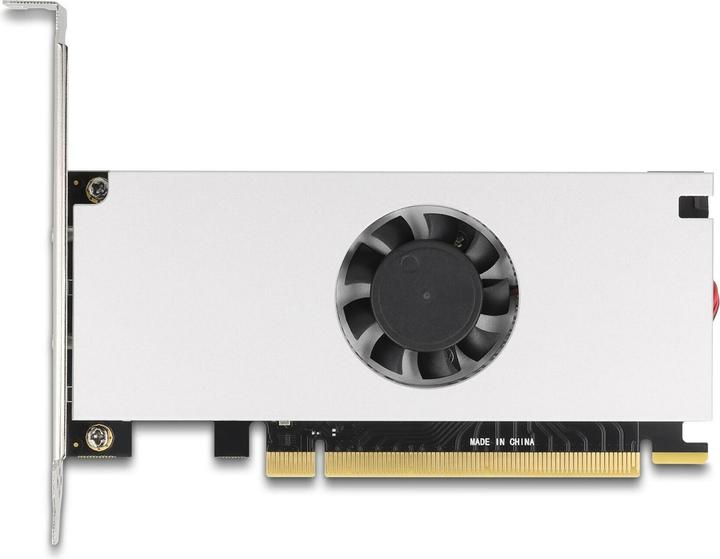

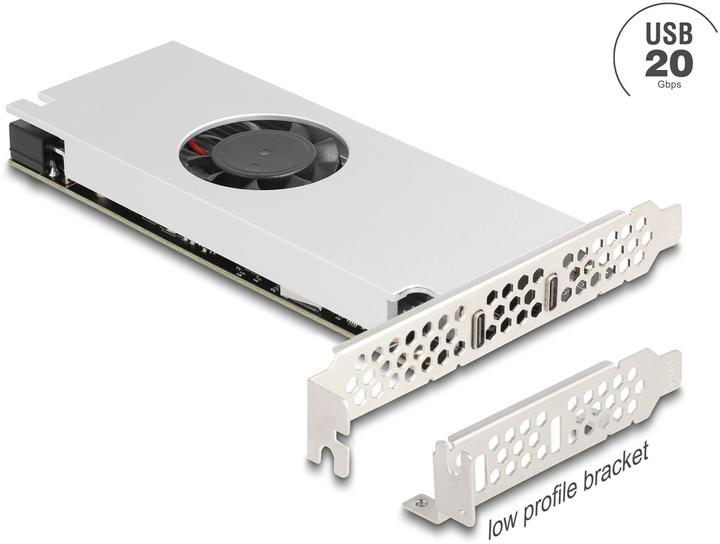

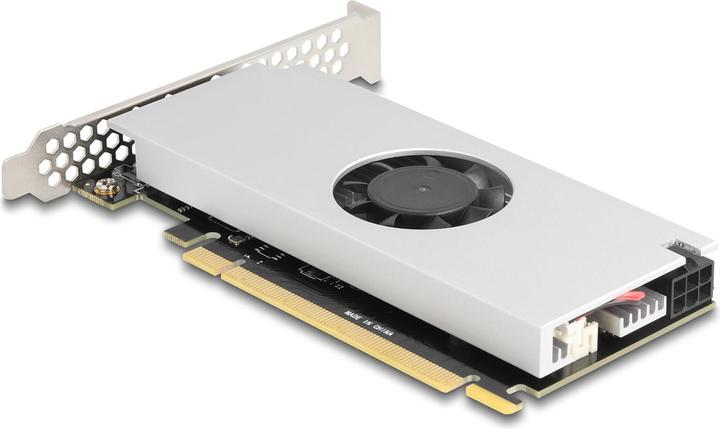

The Delock PCI Express card expands the PC with two external USB 20 Gbps ports. Various USB devices, such as USB flash drives, card readers, external enclosures, etc., can be connected.

Dual Channel
The card features two ASM3242 chipsets, one for each USB Type-C port. This ensures the high data transfer rate of 20 Gbps across all ports when used simultaneously.

Specifications

• Connections:

external:
2 x USB 20 Gbps USB Type-C sockets
internal:
1 x PCI Express x16, V3.0
1 x 6 Pin PCIe power socket

• Chipset: Asmedia ASM3242, PLX PEX8747
• Data transfer rate up to 20 Gbps
• Backward compatible with USB 3.0, USB 2.0, USB 1.1
• Power supply via PCI Express interface or through the 6 Pin power connector
• Electrical power per port: max. 7.5 Watts (5 V / 1.5 A)
• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) Specification 1.1
• Supports Multiple INs
• Heatsink with 40 mm fan

System Requirements

• Windows 10/10-64/11
• Windows Server 2022
• PC with a free PCI Express x16 / x32 slot

Package Contents

• PCI Express card USB 20 Gbps
• Low Profile bracket
• User manual.
