Delock PCI Express x16 card to 4 x internal NVMe M.2 Key M 110 mm - Bifurcation

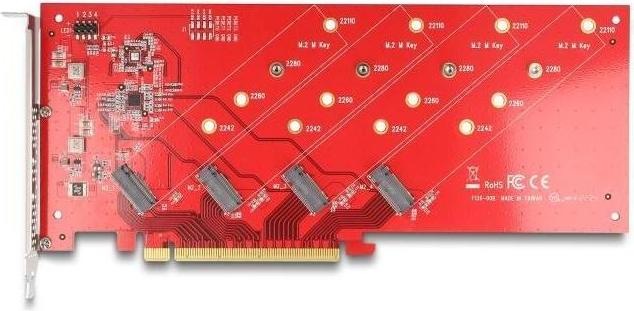

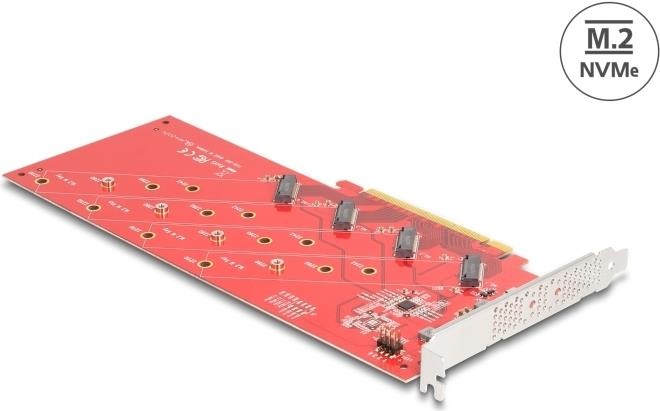

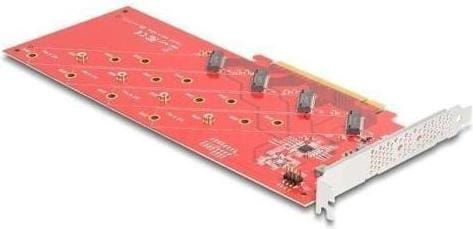

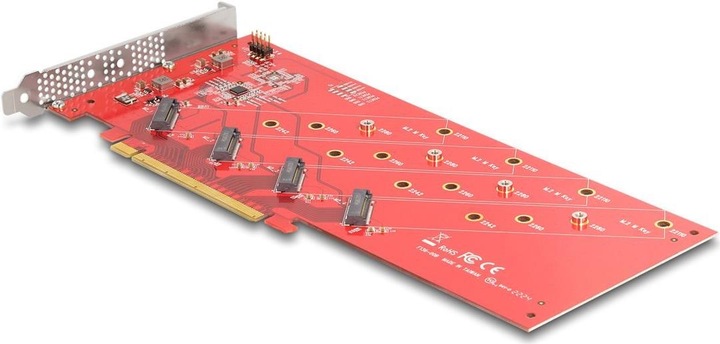

This PCI Express card from Delock expands the PC with four M.2 slots. Up to four M.2 SSDs in the 22110, 2280, 2260, and 2242 formats can be connected to these slots.

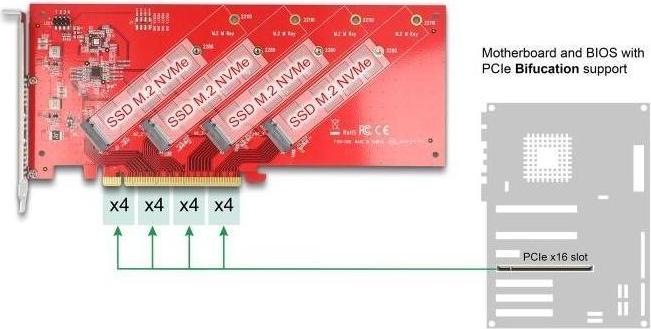

The card requires the PCIe bifurcation function of the motherboard to split the PCIe signal when multiple connections are in use. Without PCIe bifurcation, only the first M.2 slot on the card can be used.

Technical specifications:
Connections:

• Internal: 4 x M.2 Key M Slot
• 1 x PCI Express x16, V4.0
• 4 x 2 Pin header for LED

• Interface: PCIe
• Supports M.2 modules in the 22110, 2280, 2260, and 2242 formats with Key M or Key B+M based on PCIe
• Maximum height of components on the module: 1.5 mm, use of double-sided modules possible
• Supports NVM Express (NVMe)
• Bootable, from UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM

System requirements:

• Linux Kernel 6.2 or higher
• Windows 10/10-64/11
• Windows Server 2022
• PC with a free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support

Package contents:

• PCI Express card
• 4 x screws
• User manual.
