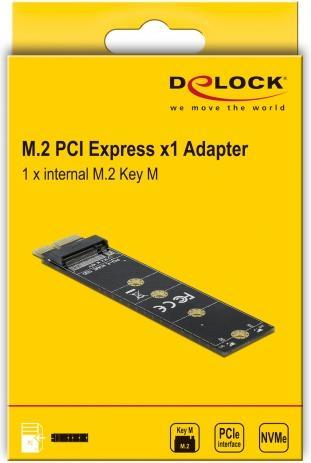

Delock PCI Express x1 to M.2 Key M Adapter

This Delock adapter allows you to connect an M.2 SSD in 2280, 2260, 2242, and 2230 formats. Data transfer occurs directly via the PCI Express slot.

Ideal Testing Equipment
Due to the PCIe connector and the direct installation of the SSD on the board without a housing, the Delock adapter can be excellently used as testing equipment.

Specifications

• Connections:

1 x PCI Express x1, V4.0
1 x 67 Pin M.2 Key M Slot

• Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M based on PCIe (NVMe)
• Maximum height of components on the module: 1.5 mm, use of double-sided populated modules possible
• Supports NVM Express (NVMe)
• 2 x LED indicators for power and activity
• Bootable
• Dimensions (LxWxH): approx. 100 x 24 x 6 mm
• Plug & Play

System Requirements

• Linux Kernel 4.6.4 or higher
• Windows 8.1/8.1-64/10/10-64/11
• PC with a free PCI Express slot

Package Contents

• M.2 Adapter
• 1 x Thermal pad
• M.2 mounting materials
• Screwdriver
• User manual.
