Delock Multiview

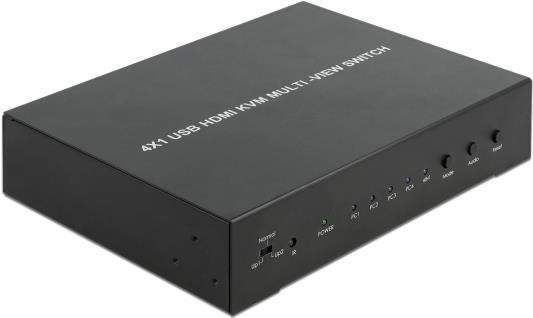

KVM 4 in 1 Multiview Switch 4x HDMI with USB 2.0

This KVM switch from Delock is a practical solution for connecting four computers with HDMI output to a single HDMI monitor. Additionally, four USB 2.0 Type-A ports can be used to connect a mouse, keyboard, printer, or USB drive.

In Multiview mode, all four PCs are displayed simultaneously on one monitor. Keyboard and mouse operation is possible without switching. When the mouse is moved over one of the desktops, that desktop is activated for input. Alternatively, the Sync mode can be activated, where all connected PCs receive the same signals from the input devices.

The active computer can be selected via mouse button, keyboard hotkey, button on the device, or infrared remote control. Connections: Input: 4x HDMI-A socket, 4x USB 2.0 Type-B socket, 1x 12 V DC socket; Output: 1x HDMI-A socket, 4x USB 2.0 Type-A sockets. 2x switching buttons with LED display for source (PC1 - PC4) and audio. Switching can be done via button, mouse button, hotkey, or infrared remote control. High Speed HDMI specification. Supports HDCP 1.2. Resolution (HDMI input) up to 1920 x 1080 @ 60 Hz (depending on system and connected hardware). Resolution (HDMI output) 1280 x 720 or 1920 x 1080 at 50 or 60 Hz. Video bandwidth up to 225 MHz/2.25 Gbit/s. USB 2.0 up to 480 Mbit/s. Robust metal housing. Color: Black. Dimensions (L x W x H): approx. 210 x 160 x 44 mm.

Power supply specifications: Plug-in power supply. Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A. Output: 12.0 V / 2.0 A. Outer dimensions, positive inside. Dimensions: Inner: ø approx. 2.1 mm; Outer: ø approx. 5.5 mm; Length: approx. 10 mm.

System requirements: PC with HDMI socket + USB Type-A socket. Monitor or TV with HDMI connection.
